Schneider Electric C16M2TM160 ComPacT NSX160M 2P 160 A 25 kA TM-D Fixed Moulded Case Circuit Breaker

% $-193.86

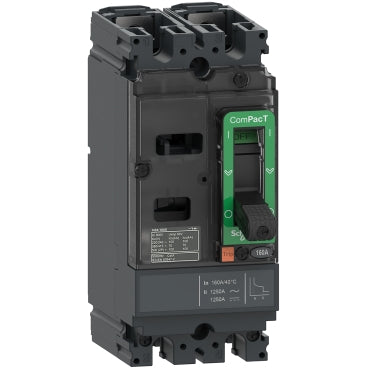

Schneider Electric C16M2TM160 NSX160M AC/DC moulded case circuit breaker – 2P 160A 25kA
Schneider Electric C16M2TM160 NSX160M AC/DC moulded case circuit breaker – 2P 160A 25kA

Schneider Electric C16M2TM160 ComPacT NSX160M 2P 160 A 25 kA TM-D Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C16M2TM160
Catalog No: C16M2TM160
Tariff Code (HS): 85362090
Rated Current: 160 A
Breaking Type: TM-D
Rated Voltage: 690 V
Poles: 2P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$193.86

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The C16M2TM160 is a 2-pole Schneider Electric ComPacT NSX160M AC/DC moulded case circuit breaker rated 160 A, with a TM-D thermal-magnetic trip unit and 25 kA breaking capacity (Icu) at 380/415 V AC. It is dual-rated for 690 V AC or 500 V DC with both poles in series, with Ue given as 690 V AC on the AC side.

Technical Specifications

SKU / Reference C16M2TM160
Brand Schneider Electric
Range ComPacT NSX
Series NSX160M AC/DC
Device application Distribution
Poles 2P (2D protected)
[In] Rated current 160 A at 40 °C
[Ue] Rated operational voltage 690 V AC 50/60 Hz | 500 V DC
[Ui] Rated insulation voltage 750 V AC 50/60 Hz
[Uimp] Rated impulse withstand voltage 8 kV
[Icu] Breaking capacity (AC) 85 kA at 220/240 V AC, 25 kA at 380/415 V AC (1P), 25 kA at 440 V AC (1P), 18 kA at 500/525 V AC (2P), 8 kA at 660/690 V AC
[Icu] Breaking capacity (DC) 85 kA at 250 V DC (1 pole), 85 kA at 500 V DC (2 poles in series)
[Ics] Service breaking capacity (AC) 85 kA at 220/240 V AC, 25 kA at 380/415 V AC, 25 kA at 440 V AC, 18 kA at 500/525 V AC, 8 kA at 660/690 V AC
Trip unit TM-D (thermal-magnetic)
Protection functions LI
[Ir] Long-time pick-up 1 x In, fixed
[Ii] Instantaneous pick-up 1250 A, fixed
Control type Toggle
Mounting mode Fixed
Connection Front upside, front downside, 35 mm pitch
Dimensions (W x H x D) 70 x 161 x 86 mm
Net weight 1.2 kg
IP / IK degree IP40 / IK07
Pollution degree 3, conforming to IEC 60664-1
Ambient temperature (operation / storage) -25…70 °C / -50…85 °C

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

At 160 A the C16M2TM160 tops out the current range of this 2-pole AC/DC frame, sharing the same 25 kA at 415 V AC / 85 kA at 500 V DC breaking capacities as the 125 A variant. Its fixed 1250 A instantaneous pickup, versus 1000 A on the 125 A unit, is scaled to the higher rated current rather than independently adjustable, so the two are selected by load current, not by trip tuning.

Technical Details

Short Description
Schneider Electric C16M2TM160 ComPacT NSX160M 2P 160A TM-D AC/DC, 25 kA at 415 V AC.
Rated Current (Ampere)
160 A
Rated Voltage (VAC)
690 V
Mounting Type
Fixed
Protection Type
IP40
Catalog No
C16M2TM160
Number of Poles
2P
Delivery Date (Days)
30 days
Model Number
NSX160M
Tariff Code
85362090
