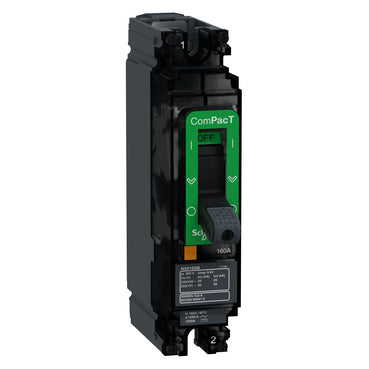

Schneider Electric C16M1TM160 ComPacT NSX160M 1P 160 A 40 kA at 240 V TM-D Fixed Moulded Case Circuit Breaker

% $-152.50
Schneider Electric C16M1TM160 NSX160M AC/DC moulded case circuit breaker – 1P 160A 40kA
Schneider Electric C16M1TM160 NSX160M AC/DC moulded case circuit breaker – 1P 160A 40kA

Schneider Electric C16M1TM160 ComPacT NSX160M 1P 160 A 40 kA at 240 V TM-D Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C16M1TM160
Catalog No: C16M1TM160
Tariff Code (HS): 85362090
Rated Current: 160 A
Breaking Type: TM-D
Rated Voltage: 277 V
Poles: 1P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$152.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The C16M1TM160 is a 1-pole Schneider Electric ComPacT NSX160M AC/DC moulded case circuit breaker rated 160 A, with a TM-D thermal-magnetic trip unit and 40 kA breaking capacity (Icu) at 240 V AC. Rated operational voltage (Ue) is 277 V AC or 250 V DC, with an overvoltage category IV rating for the slim 35 mm single-pole frame.

Technical Specifications

SKU / Reference C16M1TM160
Brand Schneider Electric
Range ComPacT NSX
Series NSX160M AC/DC
Device application Distribution
Poles 1P (1D protected)
[In] Rated current 160 A at 40 °C
[Ue] Rated operational voltage 277 V AC 50/60 Hz | 250 V DC
[Ui] Rated insulation voltage 750 V AC 50/60 Hz
[Uimp] Rated impulse withstand voltage 8 kV
[Icu] Breaking capacity (AC) 40 kA at 220/240 V AC
[Icu] Breaking capacity (DC) 85 kA at 250 V DC (1 pole)
[Ics] Service breaking capacity 40 kA at 220/240 V AC, 85 kA at 250 V DC
Trip unit TM-D (thermal-magnetic)
Protection functions LI
[Ir] Long-time pick-up 1 x In, fixed
[Ii] Instantaneous pick-up 1250 A, fixed
Control type Toggle
Mounting mode Fixed
Connection Front upside, front downside, 35 mm pitch
Dimensions (W x H x D) 35 x 161 x 86 mm
Net weight 0.7 kg
Overvoltage category IV
IP / IK degree IP40 / IK07
Pollution degree 3, conforming to IEC 60664-1
Ambient temperature (operation / storage) -25…70 °C / -50…85 °C

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

At 160 A the C16M1TM160 tops out the current rating of this single-pole AC/DC frame, sharing the same 40 kA at 240 V AC and 85 kA at 250 V DC breaking capacities as the 125 A variant. Its fixed 1250 A instantaneous pickup is scaled up from the 125 A unit's 1000 A setting, so the trip characteristic is matched to this breaker's higher current rather than adjustable between the two.

Technical Details

Short Description
Schneider Electric C16M1TM160 ComPacT NSX160M 1P 160A TM-D AC/DC, 40 kA at 240 V AC.
Rated Current (Ampere)
160 A
Rated Voltage (VAC)
277 V
Mounting Type
Fixed
Protection Type
IP40
Catalog No
C16M1TM160
Number of Poles
1P
Delivery Date (Days)
30 days
Model Number
NSX160M
Tariff Code
85362090
