Schneider Electric C16H6TM160 ComPacT NSX160H 4P 160 A 70 kA TM-D Fixed Moulded Case Circuit Breaker

% $-512.72

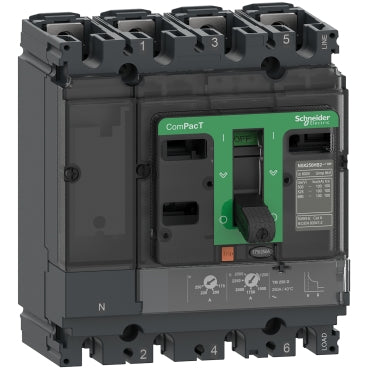

Schneider Electric C16H6TM160 NSX160H moulded case circuit breaker – 4P 160A 70kA
Schneider Electric C16H6TM160 NSX160H moulded case circuit breaker – 4P 160A 70kA

Schneider Electric C16H6TM160 ComPacT NSX160H 4P 160 A 70 kA TM-D Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C16H6TM160
Catalog No: C16H6TM160
Tariff Code (HS): 85362090
Rated Current: 160 A
Breaking Type: TM-D
Rated Voltage: 690 V
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$512.72

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The C16H6TM160 is a 4-pole (3D, neutral unprotected) Schneider Electric ComPacT NSX160H moulded case circuit breaker rated 160 A, with a TM-D thermal-magnetic trip unit and 70 kA breaking capacity (Icu) at 380/415 V AC. Rated operational voltage (Ue) is 690 V AC. It is the top-current option in the NSX160H 4-pole frame.

Technical Specifications

SKU / Reference C16H6TM160
Brand Schneider Electric
Range ComPacT NSX
Series NSX160H
Device application Distribution
Poles 4P (3D protected, neutral left unprotected)
[In] Rated current 160 A at 40 °C
[Ue] Rated operational voltage 690 V AC 50/60 Hz
[Ui] Rated insulation voltage 800 V AC 50/60 Hz
[Uimp] Rated impulse withstand voltage 8 kV
[Icu] Breaking capacity 100 kA at 220/240 V AC, 70 kA at 380/415 V AC, 65 kA at 440 V AC, 50 kA at 500 V AC, 35 kA at 525 V AC, 10 kA at 660/690 V AC
[Ics] Service breaking capacity 100 kA at 220/240 V AC, 70 kA at 380/415 V AC, 65 kA at 440 V AC, 50 kA at 500 V AC, 35 kA at 525 V AC, 10 kA at 660/690 V AC
Trip unit TM-D (thermal-magnetic)
Protection functions LI
[Ir] Long-time pick-up adjustment 0.7...1 x In, adjustable
[Ii] Instantaneous pick-up 1250 A, fixed
Control type Toggle
Mounting mode Fixed
Connection Front upside, front downside, 35 mm pitch
Dimensions (W x H x D) 140 x 161 x 86 mm
Net weight 2.6 kg
IP / IK degree IP40 / IK07
Pollution degree 3, conforming to IEC 60664-1
Ambient temperature (operation / storage) -25…70 °C / -50…85 °C

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

At 160 A the C16H6TM160 runs the TM-D trip unit at the top of its 0.7...1 x In range for this 4-pole H-rated frame; against the 125 A sibling, pick it when the switched feeder is sized for the full frame current. As with all 3D breakers in this family the fourth pole switches the neutral without protecting it, and Ics equals Icu across the voltage range so the device can clear its full rated fault current repeatedly without derating.

Technical Details

Short Description
Schneider Electric C16H6TM160 ComPacT NSX160H 4P 160A TM-D, 70 kA at 415 V AC.
Rated Current (Ampere)
160 A
Rated Voltage (VAC)
690 V
Mounting Type
Fixed
Protection Type
IP40
Catalog No
C16H6TM160
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
NSX160H
Tariff Code
85362090
