Schneider Electric C16H3TM125 ComPacT NSX160H 3P 125 A 70 kA TM-D Fixed Moulded Case Circuit Breaker

% $-237.08
Schneider Electric C16H3TM125 NSX160H moulded case circuit breaker – 3P 125A 70kA
Schneider Electric C16H3TM125 NSX160H moulded case circuit breaker – 3P 125A 70kA

Schneider Electric C16H3TM125 ComPacT NSX160H 3P 125 A 70 kA TM-D Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C16H3TM125
Catalog No: C16H3TM125
Tariff Code (HS): 85362090
Rated Current: 125 A
Breaking Type: TM-D
Rated Voltage: 690 V
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$237.08

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

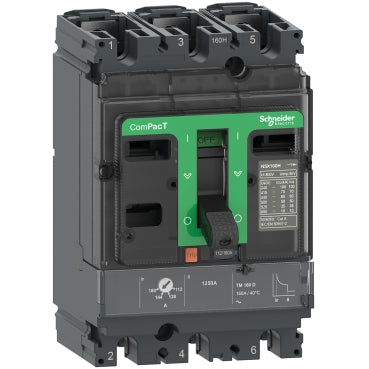

The C16H3TM125 is a 3-pole Schneider Electric ComPacT NSX160H moulded case circuit breaker rated 125 A, with a TM-D thermal-magnetic trip unit and 70 kA breaking capacity (Icu) at 380/415 V AC. Rated operational voltage (Ue) is 690 V AC. The H performance level puts it well above the 36 kA F-rated NSX160F frame for the same current rating.

Technical Specifications

SKU / Reference C16H3TM125
Brand Schneider Electric
Range ComPacT NSX
Series NSX160H
Device application Distribution
Poles 3P (3D protected)
[In] Rated current 125 A at 40 °C
[Ue] Rated operational voltage 690 V AC 50/60 Hz
[Ui] Rated insulation voltage 800 V AC 50/60 Hz
[Uimp] Rated impulse withstand voltage 8 kV
[Icu] Breaking capacity 100 kA at 220/240 V AC, 70 kA at 380/415 V AC, 65 kA at 440 V AC, 50 kA at 500 V AC, 35 kA at 525 V AC, 10 kA at 660/690 V AC
[Ics] Service breaking capacity 100 kA at 220/240 V AC, 70 kA at 380/415 V AC, 65 kA at 440 V AC, 50 kA at 500 V AC, 35 kA at 525 V AC, 10 kA at 660/690 V AC
Trip unit TM-D (thermal-magnetic)
Protection functions LI
[Ir] Long-time pick-up adjustment 0.7...1 x In, adjustable
[Ii] Instantaneous pick-up 1250 A, fixed
Control type Toggle
Mounting mode Fixed
Connection Front upside, front downside, 35 mm pitch
Dimensions (W x H x D) 105 x 161 x 86 mm
Net weight 2.2 kg
IP / IK degree IP40 / IK07
Pollution degree 3, conforming to IEC 60664-1
Ambient temperature (operation / storage) -25…70 °C / -50…85 °C

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

Against the F-rated NSX160F TM125 in the same frame, the C16H3TM125 trades nothing in size or current rating for its near-double 70 kA Icu — both share the 105 x 161 x 86 mm body and 2.2 kg weight, so the choice is purely about the board's prospective fault current. The 0.7...1 x In adjustable thermal setting still allows the protection to be trimmed below the 125 A frame rating for a smaller downstream cable.

Technical Details

Short Description
Schneider Electric C16H3TM125 ComPacT NSX160H 3P 125A TM-D, 70 kA at 415 V AC.
Rated Current (Ampere)
125 A
Rated Voltage (VAC)
690 V
Mounting Type
Fixed
Protection Type
IP40
Catalog No
C16H3TM125
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
NSX160H
Tariff Code
85362090
