Schneider Electric C16F4TM125D1 ComPacT NSX125 DC PV 4P 125 A 10 kA DC TM-DC Moulded Case Circuit Breaker

% $-555.65

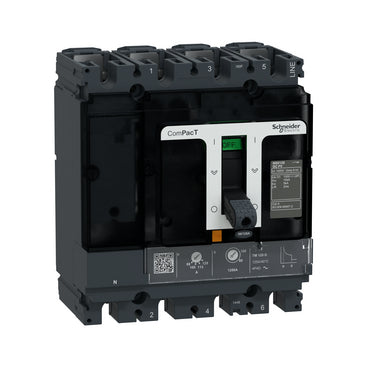

Schneider Electric C16F4TM125D1 NSX125 DC PV moulded case circuit breaker – 4P 125A 1000V DC
Schneider Electric C16F4TM125D1 NSX125 DC PV moulded case circuit breaker – 4P 125A 1000V DC

Schneider Electric C16F4TM125D1 ComPacT NSX125 DC PV 4P 125 A 10 kA DC TM-DC Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C16F4TM125D1
Catalog No: C16F4TM125D1
Tariff Code (HS): 85362090
Rated Current: 125 A
Breaking Type: TM-DC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$555.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The C16F4TM125D1 is a 4-pole Schneider Electric ComPacT NSX125 DC PV moulded case circuit breaker rated 125 A at 40 °C, built for 1000 V DC photovoltaic circuits with a TM-DC thermal-magnetic trip unit and a DC breaking capacity (Icu) of 10 kA with all four poles connected in series, at a net weight of 2.8 kg.

Technical Specifications

SKU / Reference C16F4TM125D1
Brand Schneider Electric
Range ComPacT NSX DC PV
Series NSX125 DC PV
Device application Photovoltaic
Poles 4P (4D protected)
[In] Rated current 125 A at 40 °C
[Ue] Rated operational voltage 1000 V DC
[Ui] Rated insulation voltage 1000 V DC
[Uimp] Rated impulse withstand voltage 8 kV
[Icu] Breaking capacity 10 kA at 1000 V DC, 4 poles in series
[Ics] Service breaking capacity 10 kA at 1000 V DC
Trip unit TM-DC (thermal-magnetic, DC)
Protection functions LI
[Ir] Long-time pick-up adjustment range 0.7...1 x In, adjustable
[Ii] Instantaneous pick-up 1250 A, fixed
Control type Toggle
Mounting mode Fixed
Connection Front upside, front downside, 35 mm pitch
Dimensions (W x H x D) 140 x 161 x 86 mm
Net weight 2.8 kg
IP / IK degree IP40 / IK07
Pollution degree 3, conforming to IEC 60664-1
Ambient temperature (operation / storage) -25…70 °C / -50…85 °C

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

The C16F4TM125D1's 10 kA DC Icu is rated specifically for 4 poles in series at the full 1000 V DC — a figure that is not directly comparable to an AC breaker's kA rating because interrupting a sustained DC arc needs more series poles and contact gap than clearing an AC zero-crossing. The 0.7...1 x In adjustable thermal setting lets the trip point be tuned below the 125 A frame rating to match the PV string's rated short-circuit current. For higher string currents, the 160 A TM-DC variant shares the same 140 x 161 x 86 mm frame.

Technical Details

Short Description
Schneider Electric C16F4TM125D1 ComPacT NSX125 DC PV 4P 125A TM-DC, 10 kA at 1000 V DC.
Rated Current (Ampere)
125 A
Mounting Type
Fixed
Protection Type
IP40
Catalog No
C16F4TM125D1
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
NSX125 DC PV
Tariff Code
85362090
