Schneider Electric C12B3TM125B ComPacT NSXm 160B 3P 125 A 25 kA TM-D Fixed Moulded Case Circuit Breaker

% $-217.32

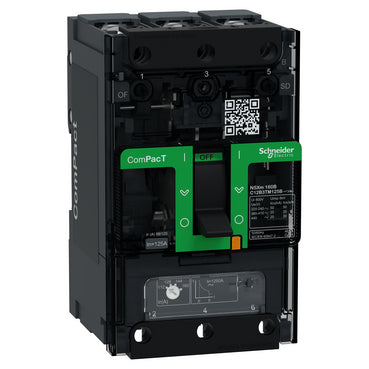

Schneider Electric C12B3TM125B ComPacT NSXm 160B MCCB – 3P 125 A 25 kA
Schneider Electric C12B3TM125B ComPacT NSXm 160B MCCB – 3P 125 A 25 kA

Schneider Electric C12B3TM125B ComPacT NSXm 160B 3P 125 A 25 kA TM-D Fixed Moulded Case Circuit Breaker

Brand: Schneider Electric
Reference No: C12B3TM125B
Catalog No: C12B3TM125B
Tariff Code (HS): 85362090
Rated Current: 125 A
Breaking Type: TM-D
Rated Voltage: 440 V
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$217.32

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric C12B3TM125B is a 3P ComPacT NSXm 160B moulded case circuit breaker rated 125 A at 40°C, built on a TM-D thermal-magnetic trip unit with 25 kA breaking capacity (Icu) at 380/415 V AC. It is a fixed-mounting device with front compression lug or busbar connection for low-voltage distribution circuits up to 440 V AC.

Reference C12B3TM125B
Brand Schneider Electric
Range / Product name ComPacT NSXm
Device short name NSXm 160B
Number of poles 3P
Protected poles 3D
[In] Rated current 125 A at 40°C
[Ue] Rated operational voltage 440 V AC 50/60 Hz
[Ui] Rated insulation voltage 800 V AC 50/60 Hz
[Uimp] Rated impulse withstand voltage 8 kV
[Icu] Rated ultimate breaking capacity 50 kA at 220/240 V AC, 25 kA at 380/415 V AC, 20 kA at 440 V AC
[Ics] Rated service breaking capacity 50 kA at 220/240 V AC, 25 kA at 380/415 V AC, 20 kA at 440 V AC
Trip unit name TM-D
Trip unit technology Thermal-magnetic
Trip unit protection functions LI (long-time + instantaneous)
[Ir] Long-time pickup adjustment range 0.7...1 x In
[Ii] Instantaneous pickup adjustment range 1250 A
Power dissipation per pole 9.3 W
Control type Toggle
Mounting mode Fixed
Connection terminals Compression lug/busbar
Dimensions (W x H x D) 81 mm x 137 mm x 80 mm
Net weight 1.06 kg
IP degree of protection IP40
Standards EN/IEC 60947-2

Certifications & Standards

  • EN/IEC 60947-2

Selection Notes

Choose the B performance level (25 kA Icu at 380/415 V AC) when the prospective short-circuit current at the installation point stays at or below that rating; move to the higher-breaking-capacity F or N version in the same NSXm frame if the fault-level study gives a different result. The TM-D trip unit has a fixed long-time delay with pickup adjustable over 0.7...1 x In range and a fixed instantaneous pickup at 1250 A, so downstream coordination relies on current discrimination rather than time grading.

Technical Details

Short Description
Schneider Electric C12B3TM125B - ComPacT NSXm 160B, 3P, 125 A, 25 kA Icu, TM-D trip unit.
Rated Current (Ampere)
125 A
Rated Voltage (VAC)
440 V
Mounting Type
Fixed
Protection Type
IP40
Catalog No
C12B3TM125B
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
NSXm 160B
Tariff Code
85362090
