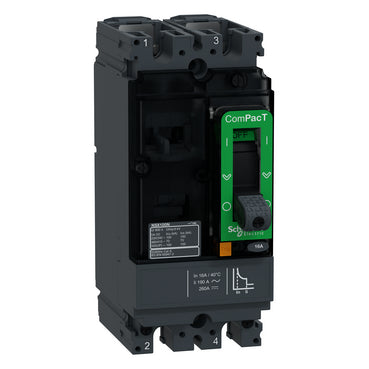

Schneider Electric C10S2TM016 ComPacT NSX100S 2P 16 A 70 kA TM-D Fixed Moulded Case Circuit Breaker

Schneider Electric's C10S2TM016 is a 2-pole ComPacT NSX100S moulded case circuit breaker rated 16 A, delivering 70 kA breaking capacity (Icu) at 415 V AC and a 690 V AC operational voltage (Ue). This frame is also DC-rated up to 500 V DC. Its TM-D thermal-magnetic trip unit pairs fixed overload protection with a fixed 190 A instantaneous short-circuit trip, fixed-mounted for low-voltage distribution boards.

Technical Specifications

Certifications & Standards

• EN/IEC 60947-2

Selection Notes

The S-coded 2-pole frame is rated 70 kA Icu at 380/415 V AC and is also DC-rated (100 kA at 250 V DC on one pole, 100 kA at 500 V DC with two poles in series), making it suited to mixed AC/DC low-voltage circuits such as DC bus or battery protection alongside standard AC use. Its TM-D thermal-magnetic trip unit combines the LI protection set in one block: L is the overload (thermal) function, fixed at 1 × In, and I is the short-circuit (magnetic) function, fixed at 190 A. Within the same NSX100S frame, pick the 16 A trip rating to match the protected circuit's full-load current — lower- and higher-current variants share the same breaking capacity and enclosure footprint.
