Schneider Electric C10F1TM030 ComPacT NSX100F AC/DC 1P 30 A TM-D 18 kA Fixed Moulded Case Circuit Breaker

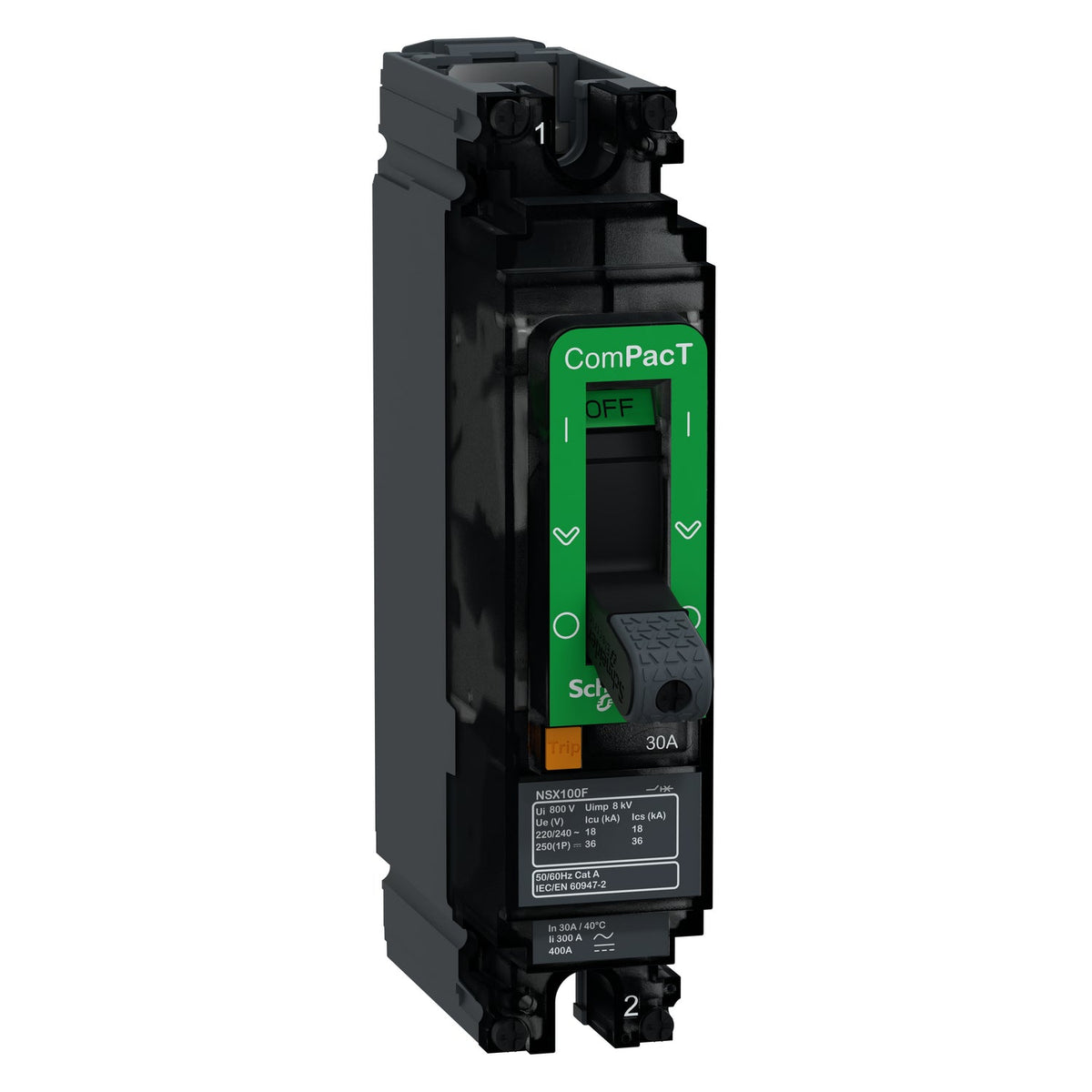

The Schneider Electric C10F1TM030 is a 1-pole ComPacT NSX100F AC/DC moulded case circuit breaker with a 30 A thermal-magnetic TM-D trip unit, an 18 kA breaking capacity (Icu) at 220/240 V AC and 36 kA at 250 V DC. It is fixed-mounted with front connections on a 35 mm pitch, rated 277 V AC / 250 V DC operational voltage.

Technical Specifications

Certifications & Standards

• EN/IEC 60947-2

Selection Notes

The TM-D trip unit on the C10F1TM030 is thermal-magnetic with fixed thresholds (Ir = 1 x In, Ii = 300 A), unlike the adjustable electronic MicroLogic trip units on the larger NS800/NS1000 frames. Choose the 25 A version of the same NSX100F 1P case for a different continuous rating; both share the same 18 kA Icu at 240 V AC / 36 kA at 250 V DC breaking capacity, so it is the load current, not the fault level, that decides between the two. As a 1-pole AC/DC device it suits single-phase AC or DC circuits rather than 3-phase distribution, where the NS800/NS1000 breakers apply.
