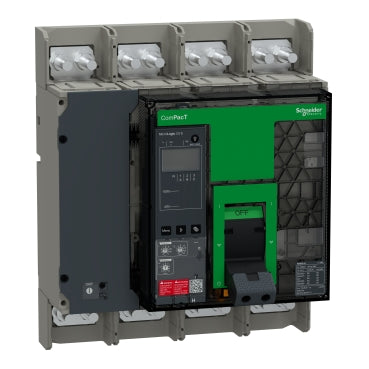

Schneider Electric C080H42EFM ComPacT NS800H 4P 800 A 70 kA MicroLogic 2.0 E Moulded Case Circuit Breaker

The Schneider Electric C080H42EFM is a 4-pole ComPacT NS800H moulded case circuit breaker rated 800 A, with a 70 kA breaking capacity (Icu) at 380/415 V AC. It is fitted with a MicroLogic 2.0 E trip unit delivering long-time overload and instantaneous short-circuit protection (LI), is fixed-mounted and manually operated, and carries a 690 V rated operational voltage for industrial distribution switchboards.

Technical Specifications

Certifications & Standards

• IECEE CB Scheme
• EN/IEC 60947-2

Selection Notes

Its LI trip unit covers long-time overload and instantaneous short-circuit tripping only, which keeps the breaker simple and is adequate where upstream or downstream devices already handle short-time discrimination. The energy-meter display adds load energy tracking on top of the RMS current reading, useful for sub-metering a feeder. The H-frame rating gives it 70 kA Icu at 380/415 V AC; within the NS800H line this is the class to pick when the calculated prospective short-circuit current at the installation point is at or below that figure without derating to the L-frame. The 4-pole version adds a switched or protected neutral, which is the variant to specify on a TT or IT system where the neutral itself needs disconnection or protection.
