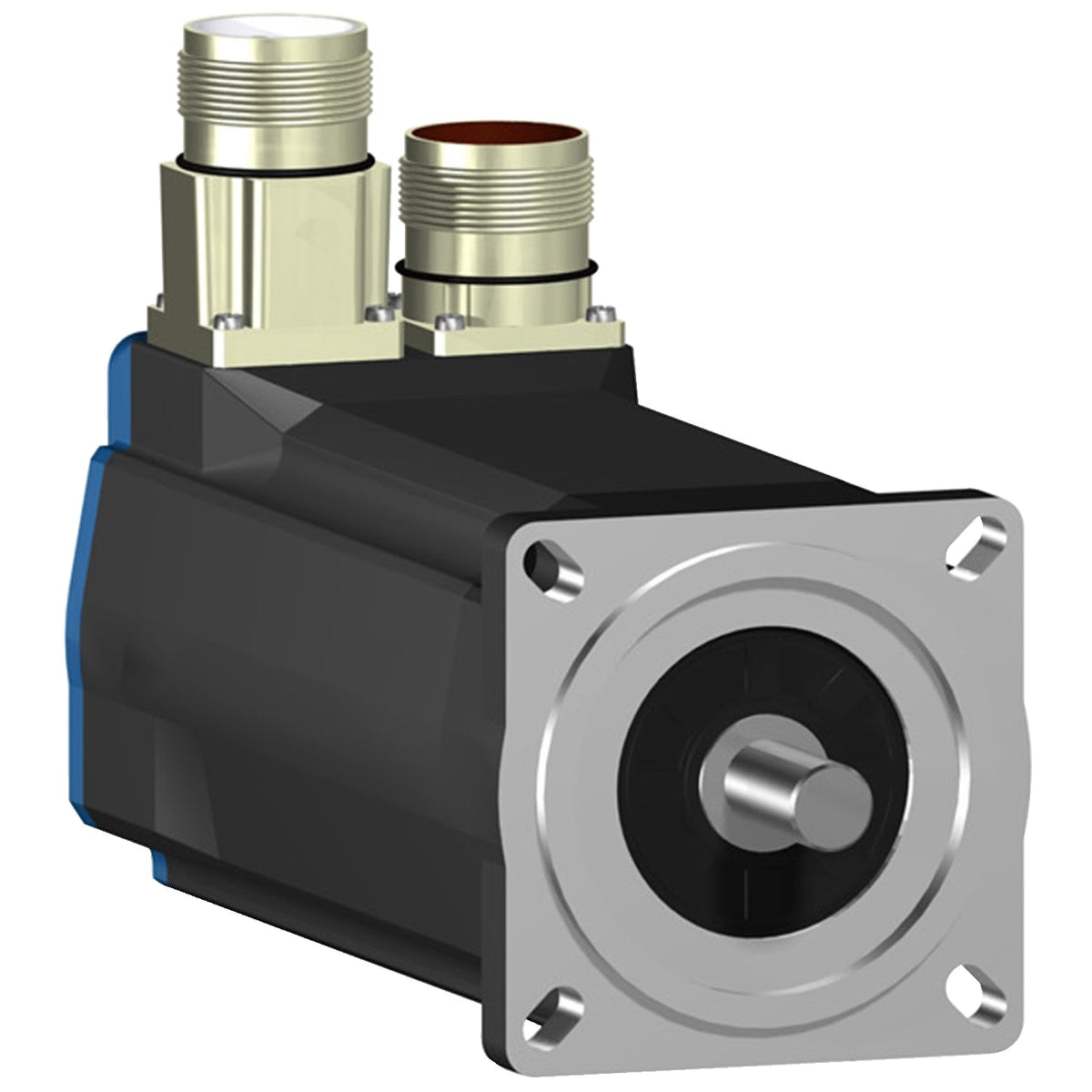

Schneider Electric BSH0701P11F2A Lexium 05 BSH 1.4 N·m 3000 rpm 70 mm Flange Brake Keyed Shaft Servo Motor

The Schneider Electric BSH0701P11F2A is a Lexium 05 series low-inertia servo motor rated for 1.4 N·m continuous stall torque at 3000 rpm nominal on a 70 mm flange, with an integrated 2 N·m holding brake. It runs on a 480 V three-phase supply, pairs with LXM05, LXM15, or LXM32 drives, and uses a keyed shaft with a single-turn SinCos Hiperface encoder.

Technical Specifications

Selection Notes

The BSH0701P11F2A carries the same 1.4 N·m continuous torque and 70 mm flange as the BSH0701P11A2A, with a 2 N·m holding brake added — roughly 1.4x the continuous torque rating, enough to hold a moderately loaded vertical axis at rest rather than just park a light one. The brake needs 10 W to release, a figure worth budgeting into the drive's 24 V auxiliary supply. It is cross-compatible with LXM05, LXM15, and LXM32 drives, and its low 0.322 kg·cm² rotor inertia keeps it suited to fast cyclic moves. The single-turn SinCos Hiperface (P11) encoder gives absolute position on power-up, so no separate homing routine is needed before the first move.
