Schneider Electric BMXDDI3202K Modicon X80 32 Discrete Inputs 24V DC PLC I/O Module

% $-334.64

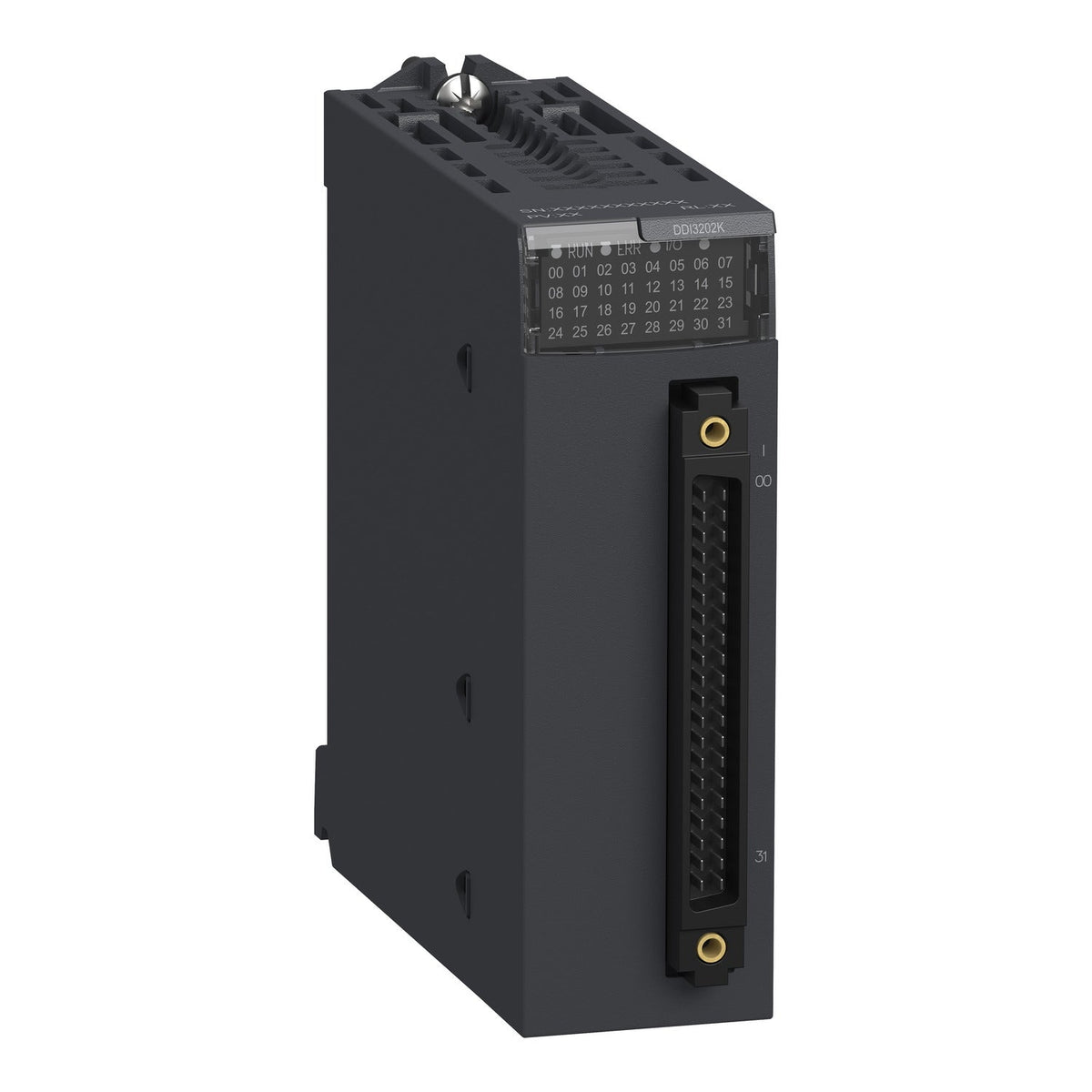

Schneider Electric BMXDDI3202K Modicon X80 Discrete Input Module – 32 x 24V DC Sink
Schneider Electric BMXDDI3202K Modicon X80 Discrete Input Module – 32 x 24V DC Sink

Schneider Electric BMXDDI3202K Modicon X80 32 Discrete Inputs 24V DC PLC I/O Module

Brand: Schneider Electric
Reference No: BMXDDI3202K
Catalog No: BMXDDI3202K
Series: Modicon X80
Tariff Code (HS): 853710
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$334.64

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric BMXDDI3202K is a Modicon X80 discrete input module with 32 isolated 24 V DC inputs in positive (sink) logic, conforming to IEC 60947-5-2 and IEC 61131-2 Type 3. Each input draws 2.5 mA at 24 V DC, responds within 4 ms typical / 7 ms maximum, and supports hot swapping so a channel can be replaced without stopping the process.

Technical Specifications

Reference BMXDDI3202K
Brand Schneider Electric
Range Modicon X80
GTIN 3595863910018
Product Type Discrete input module
Discrete Input Number 32 (isolated)
Discrete Input Voltage 24 V DC isolated
Discrete Input Logic Positive logic (sink)
Discrete Input Current 2.5 mA at 24 V DC
Input Wiring Mode 2 or 3 wires
Voltage State 1 Guaranteed ≥11 V
Voltage State 0 Guaranteed <5 V
Input Impedance 9,600 Ohm
Sensor Power Supply 19-30 V
DC Response Time 4 ms typical / 7 ms maximum
Isolation Between Channels and Bus 1500 V for 1 minute
Hot Swapping Yes (fallback supported)
MTBF Reliability 905,000 h
Power Dissipation 3.9 W
IP Degree of Protection IP20
Dimensions (W x H x D) 32 x 134.6 x 86 mm
Net Weight 0.112 kg
Ambient Temperature (Operation) 0-60°C

Certifications & Standards

  • CE

Selection Notes

The BMXDDI3202K doubles the channel density of the 16-input 24 V DC variant to 32 isolated sink-logic inputs at the same 1500 V channel-to-channel isolation, cutting slot count in racks with a high discrete I/O point count. Its taller 134.6 mm housing, versus the 16-input module's 103.7 mm, reflects the extra terminal area needed for 32 field connections. Pick the 16-input variant instead when the panel's terminal block or wiring duct is sized for the shorter module.

Technical Details

Short Description
Schneider Electric BMXDDI3202K Modicon X80 discrete input module, 32 isolated 24 V DC sink inputs, IP20.
Mounting Type
Rack-mounted (Modicon X80 backplane)
Protection Type
IP20
Catalog No
BMXDDI3202K
Delivery Date (Days)
30 days
Model Number
BMXDDI3202K
Tariff Code
853710
