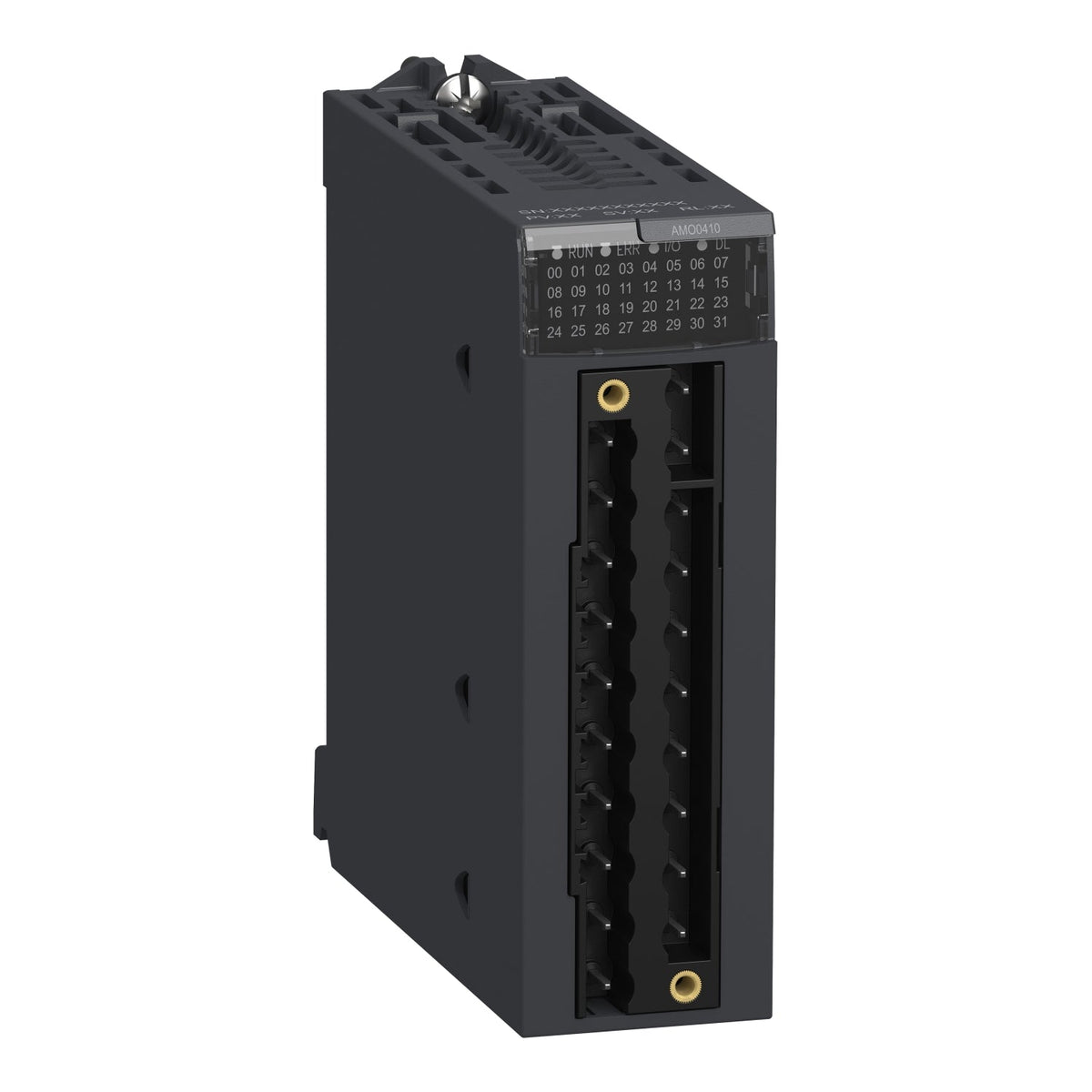

Schneider Electric BMXAMO0410 Modicon X80 4-Channel Isolated Analog Output Module PLC I/O Module

The Schneider Electric BMXAMO0410 is a Modicon X80 analog output module with 4 isolated, high-level channels and 15-bit + sign resolution. Each channel delivers current (0-20mA, 4-20mA) or voltage (±10V) signals, isolated to 1400 V DC from ground and bus and 750 V DC between channels, drawing 140 mA at 24 V DC.

Technical Specifications

Certifications & Standards

• CE
• UL
• CSA
• IEC 61131-2

Selection Notes

Choose the BMXAMO0410 over the 2-output card when a station needs 4 isolated analog outputs in one slot without stepping up to the 8-output non-isolated module — channel isolation is retained at 4 channels, at the cost of a lower 1,000,000-hour MTBF than the 2-output version. Current draw of 140 mA at 24 V DC scales roughly with channel count against the 2-output module's 110 mA, worth checking against the rack's power budget on fully populated backplanes. Each channel supports the predefined or configurable fallback behaviour on communication loss, so mixed setpoint and valve-drive outputs on the same module can still be configured with different failure responses. As with the 2-output card, power for all 4 output loops is supplied internally from the rack, so no separate loop-power wiring is required at the module.
