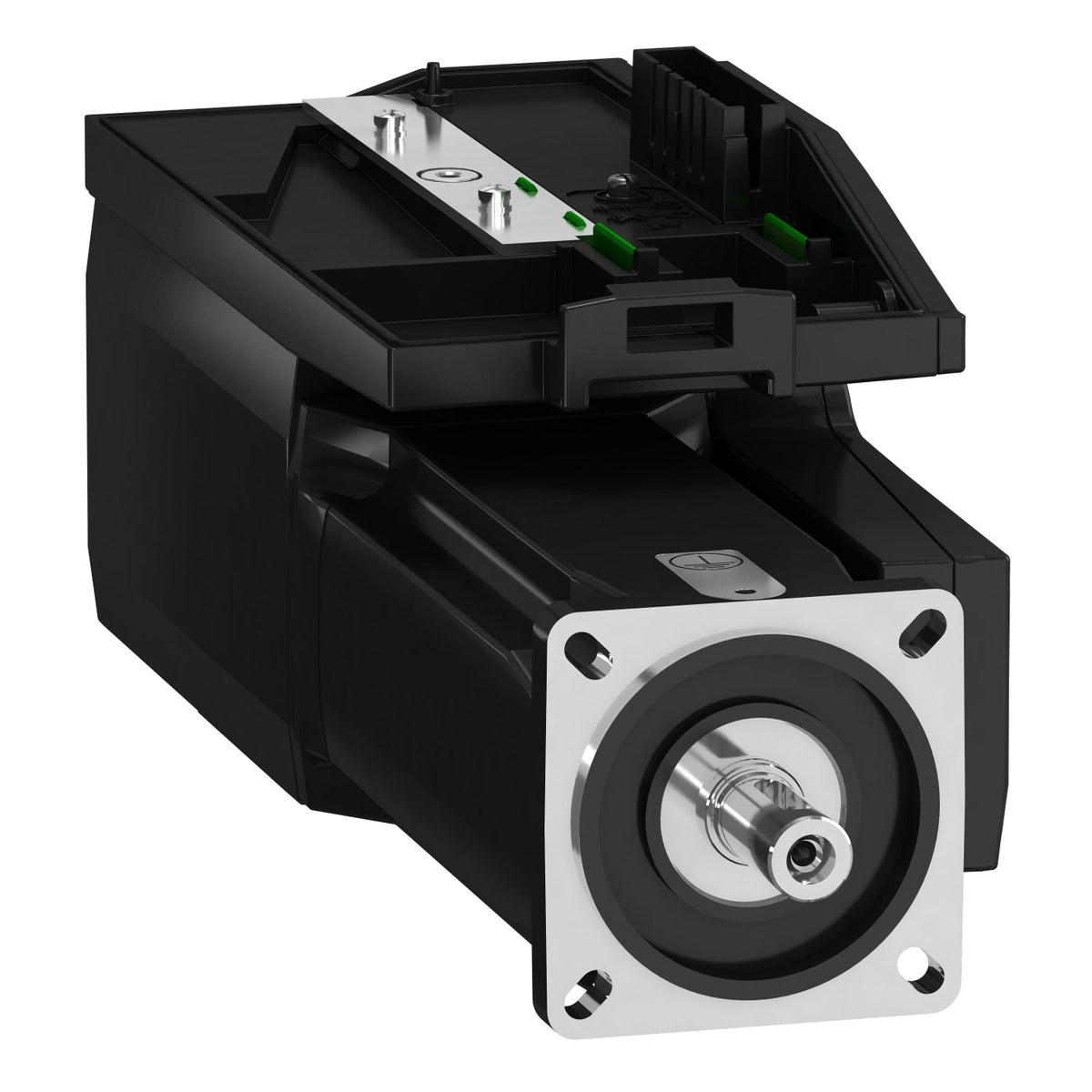

Schneider Electric BMI0703T16A Lexium 32i BMI 3.4 N·m 8000 rpm 1-Phase Integrated Drive Servo Motor

The Schneider Electric BMI0703T16A is a Lexium 32i servo motor with the drive electronics built into the motor housing, rated for 3.4 N·m continuous stall torque and an 8000 rpm maximum mechanical speed on a 115...230 V single-phase supply. It pairs with an LXM32i CANopen or EtherCAT control unit, uses a keyed 70 mm flange shaft, and carries an absolute single-turn SinCos Hiperface encoder at 32768 points/turn.

Technical Specifications

Certifications & Standards

• CE
• UL
• UL 1004

Selection Notes

The BMI0703T16A is the single-phase member of the 70 mm BMI frame: its 115...230 V input lets it run from standard single-phase mains where the three-phase BMI0702P16A cannot, at the cost of a lower 3.5 A continuous output current ceiling on 230 V. Because the drive stage is built in, sizing stops at matching this motor's torque and speed to the axis — there is no separate LXM32i drive to size for current headroom beyond what is listed here. Choose the CANopen or EtherCAT control unit to match the rest of the machine's fieldbus.
