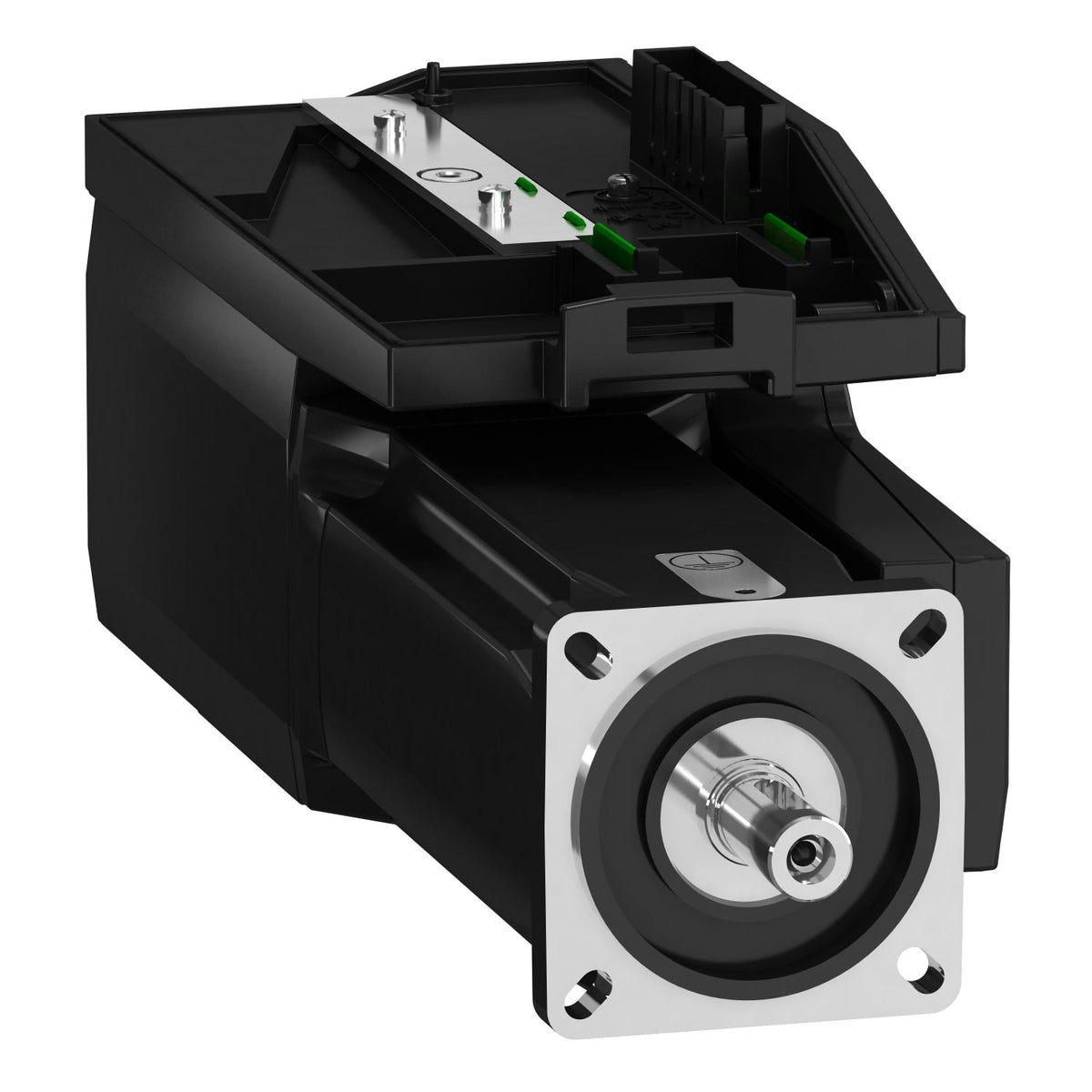

Schneider Electric BMI0702T16A Lexium 32i BMI 2.48 N·m 8000 rpm 1-Phase Integrated Drive Servo Motor

The BMI0702T16A is a Schneider Electric Lexium 32i BMI integrated servo motor — motor and servo drive combined in one housing — rated 2.48 N·m continuous stall torque at 8000 rpm maximum mechanical speed, built for a single-phase 115-230 V supply on a 70 mm international standard flange. It pairs with the LXM32i CANopen or EtherCAT control unit and uses a single-turn SinCos Hiperface encoder (32768 points/turn).

Technical Specifications

Selection Notes

The BMI0702T16A integrates the servo drive into the motor housing, so it removes the separate drive module and its cabinet space — relevant when panel footprint, not raw torque, is the constraint. Its single-phase 115-230 V supply makes it the choice for machines without a three-phase feed at the axis, as opposed to the three-phase BMI1002P16A on the larger 100 mm frame. At 2.6 A continuous stall current and 2.48 N·m continuous torque, it suits light axes; the integrated EMC filter and 32768-point/turn absolute encoder keep wiring to a single power/feedback cable run back to the LXM32i CANopen or EtherCAT control unit.
