Schneider Electric BCH16LF10330A5C2 Lexium 16 BCH16 1.0 kW 3.18 N·m 3000 rpm 80 mm Flange Servo Motor

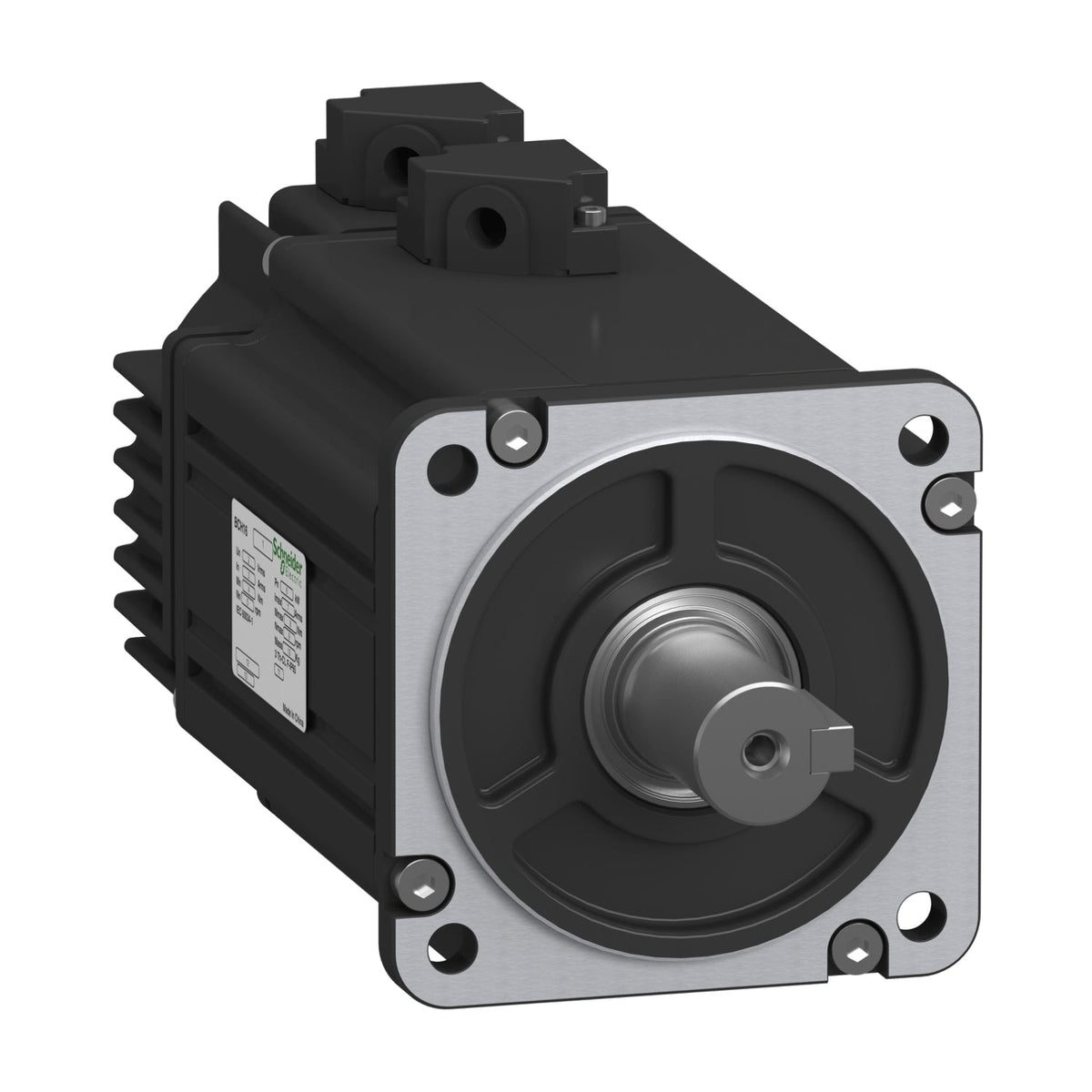

The Schneider Electric BCH16LF10330A5C2 is a low inertia BCH16 servo motor from the Lexium 16D range, rated for 1.0 kW continuous output at 3000 rpm with 3.18 N.m continuous stall torque. It runs on a 220 V three-phase supply through the matching LXM16D servo drive, reads position through a 2500 ppr incremental encoder, and ships in a 80 mm flange, IP65 frame with no holding brake.

Technical Specifications

Selection Notes

At low inertia (1.24 kg.cm2 rotor inertia), it suits directly coupled, high dynamic-response axes where motor inertia must stay close to a lightweight load for fast acceleration. The 2500 ppr incremental encoder has no absolute position memory, so the controller needs a reference or homing move after every power-up. Without a holding brake, the load on the 19 mm shaft will drift when drive power drops out; pick the brake variant in the same 80 mm frame for vertical axes or any application that must hold position unpowered. Size the matching LXM16D drive to the 6.8 A continuous stall current and 21.9 A maximum Irms rating of this motor, not to the flange size alone.
