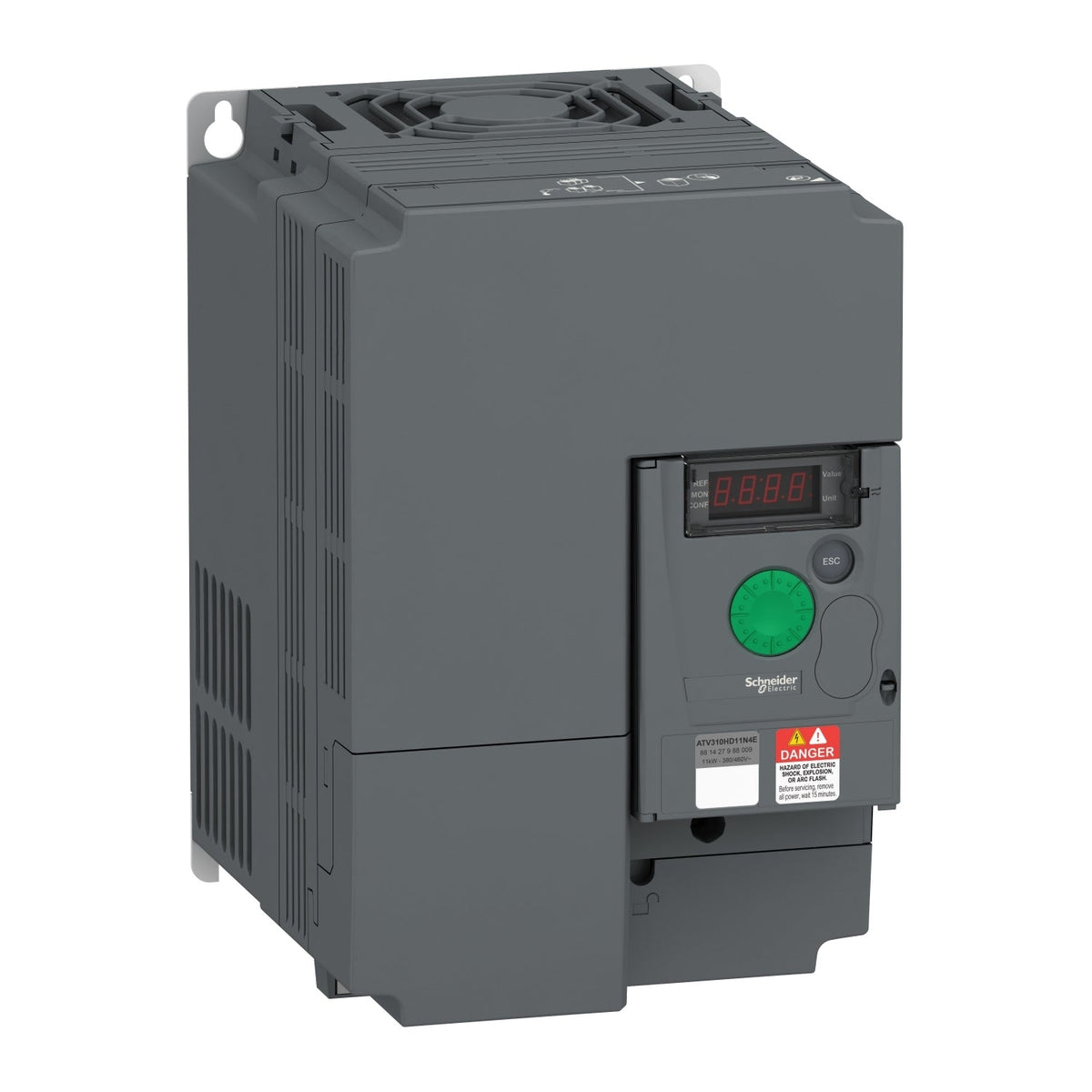

Schneider Electric ATV310HD11N4E Easy Altivar 310 11 kW 380-460 V 3-Phase IP20 Variable Frequency Drive

The Schneider Electric ATV310HD11N4E is an 11 kW Easy Altivar 310 variable frequency drive for simple three-phase machines, sized for heavy-duty (constant-torque) applications. It accepts a 380-460 V three-phase supply, delivers a 24 A continuous output current without an integrated EMC filter, and communicates over Modbus RTU through a front-face RJ45 port.

Technical Specifications

Certifications & Standards

• CE
• EAC
• KC
• IEC 61800-5-1
• IEC 61800-3

Selection Notes

The ATV310HD11N4E carries two ratings on the same drive: 24 A continuous (11 kW) in heavy duty for constant-torque loads with high starting torque, such as conveyors, mixers, or crushers, and 30 A continuous (15 kW) in normal duty for variable-torque loads like pumps and fans that need more continuous current but less overload margin. Select heavy duty when the driven machine needs the 36 A / 60 s transient overload; select normal duty when the motor's nameplate current is closer to 30 A. Because there is no integrated EMC filter, add an external filter if the installation must meet EN 61800-3 conducted-emission limits; the native Modbus RTU port on the RJ45 connector covers basic speed/status control without extra hardware.

Applications

The 3-phase, 380-460 V rating targets simple OEM machines running standard asynchronous motors up to 11 kW, sized by V/f ratio or sensorless vector control (SVC). The single Modbus RTU port suits machines that need basic speed reference and status exchange with a PLC, without a fieldbus gateway.
