Schneider Electric ABLS1A24050 Modicon 24V DC 5A 1-Phase 100-240V AC Regulated Power Supply

% $-141.46

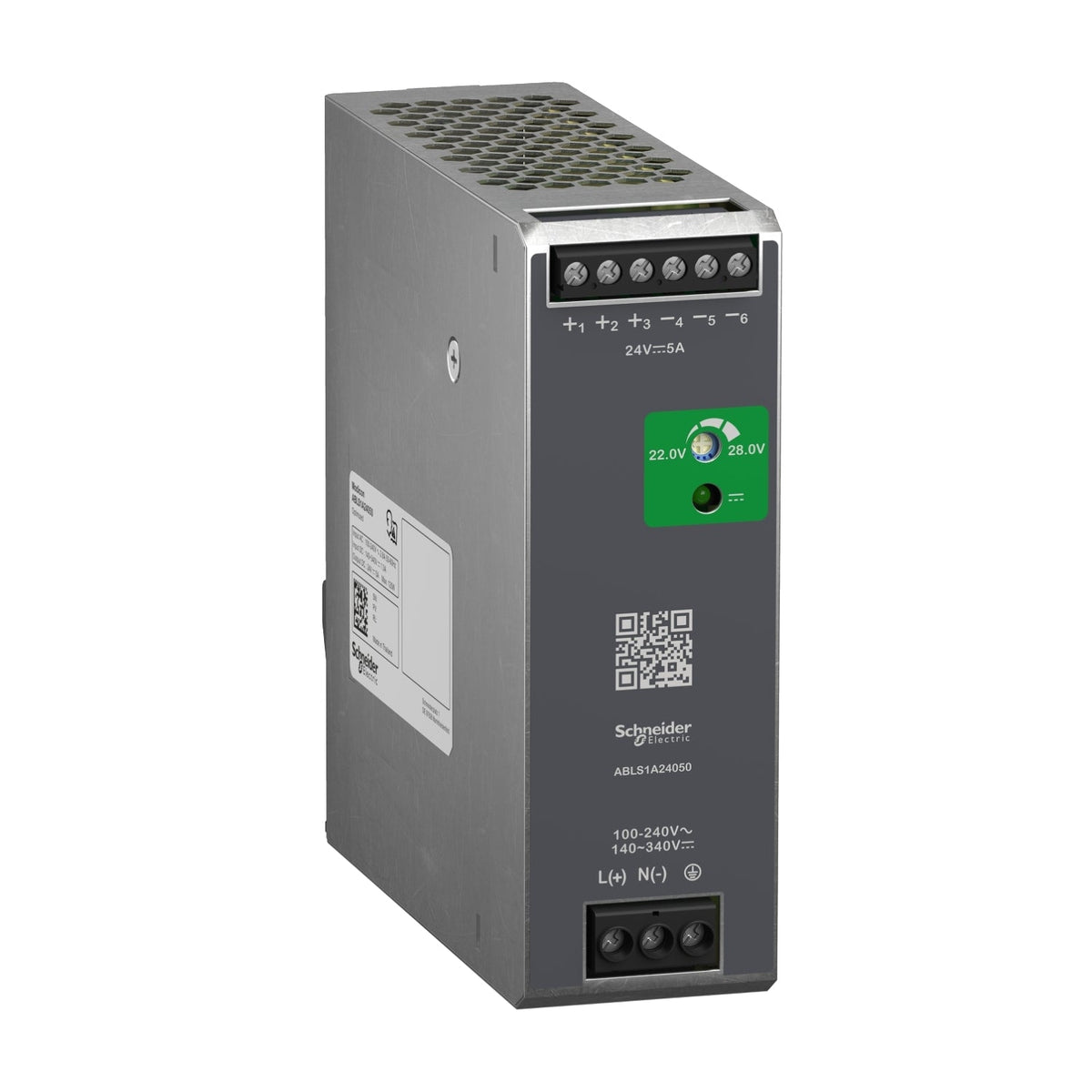

Schneider Electric ABLS1A24050 regulated power supply 24V DC 5A
Schneider Electric ABLS1A24050 regulated power supply 24V DC 5A

Schneider Electric ABLS1A24050 Modicon 24V DC 5A 1-Phase 100-240V AC Regulated Power Supply

Brand: Schneider Electric
Reference No: ABLS1A24050
Catalog No: ABLS1A24050
Series: Modicon Power Supply
Tariff Code (HS): 850440
Rated Current: 5 A
Rated Voltage: 100-240 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$141.46

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric ABLS1A24050 is a regulated switch-mode DC power supply from the Modicon Power Supply range, converting a 100-240 V AC single-phase input into a regulated 24 V DC output at up to 5 A (120 W). Housed in an aluminum book-style enclosure for DIN-rail mounting, it protects against overload and short-circuit with automatic restart once the fault clears.

Technical Specifications

SKU / Reference ABLS1A24050
GTIN 3606481500236
Brand Schneider Electric
Range of Product Modicon Power Supply
Variant Option Optimized
Enclosure Material Aluminum
Nominal Input Voltage 100-240 V AC single phase (140-340 V DC)
Rated Power 120 W
Output Voltage 24 V DC
Output Current 5 A
Output Voltage Adjustment 22-28 V
Efficiency 85% at 115 V AC / 88% at 230 V AC
Inrush Current 30 A at 115 V / 60 A at 230 V
Holding Time > 20 ms at 115 V AC / > 40 ms at 230 V AC
Meantime Between Failure (MTBF) 700,000 h at 25 degC, full load
Ambient Operating Temperature -20 to 70 degC (derated above 40/50 degC)
IP Degree of Protection IP20
Mounting Top hat DIN rail TH35-15 / TH35-7.5
Dimensions (W x H x D) 40 x 123.6 x 117.6 mm
Net Weight 0.55 kg
Status LED 1 green LED, output voltage present
Recommended External Protection 13 A, C-curve MCB (Acti9 iC60)
Overvoltage Category II

Certifications & Standards

  • CE
  • cUL Listed
  • cUL Recognized
  • RCM
  • CB Scheme
  • EAC
  • KC
  • IEC 62368-1
  • EN/IEC 61204-3
  • UL 508
  • CSA C22.2 No. 107.1

Selection Notes

At 5 A / 120 W, the ABLS1A24050 covers a 24 V DC rail feeding a PLC, HMI and several I/O modules from one supply rather than splitting the load across two smaller units. Its 22-28 V adjustment range and automatic-reset overload and short-circuit protection keep the rail stable through cable-run drop and transient faults alike.

Technical Details

Short Description
24 V DC / 5 A regulated power supply, 100-240 V AC single-phase input, DIN-rail, IP20.
Rated Current (Ampere)
5 A
Rated Voltage (VAC)
100-240 V AC
Mounting Type
DIN rail (TH35)
Protection Type
IP20
Catalog No
ABLS1A24050
Delivery Date (Days)
30 days
Model Number
ABLS1A24050
Tariff Code
850440
