Schneider Electric A9MEM3265 Acti9 iEM3265 Energy Meter CT 1A/5A BACnet Multi-Tariff MID Energy Meter

% $-227.98

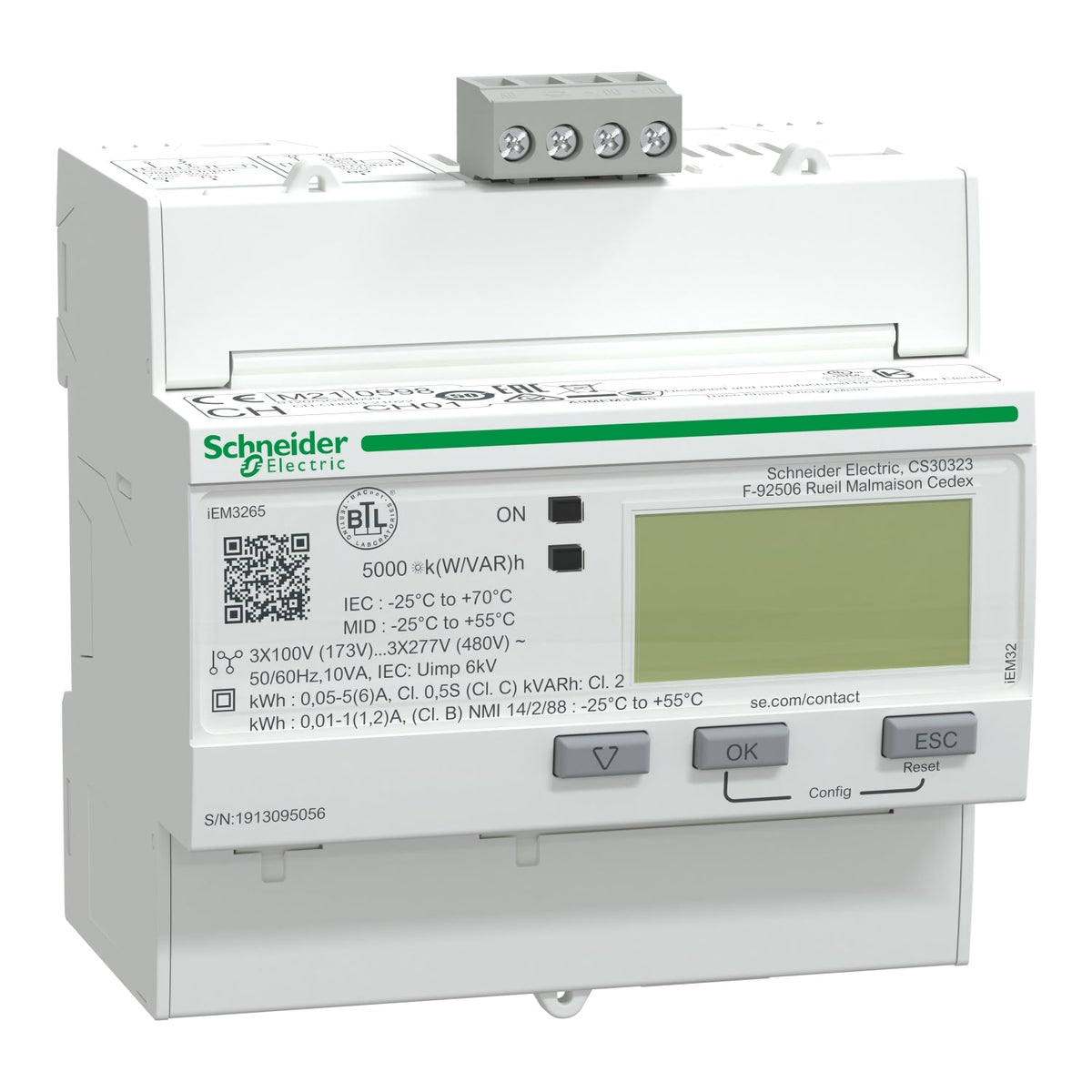

Schneider Electric A9MEM3265 iEM3265 Energy Meter 1 A / 5 A (CT) current
Schneider Electric A9MEM3265 iEM3265 Energy Meter 1 A / 5 A (CT) current

Schneider Electric A9MEM3265 Acti9 iEM3265 Energy Meter CT 1A/5A BACnet Multi-Tariff MID Energy Meter

Brand: Schneider Electric
Reference No: A9MEM3265
Catalog No: A9MEM3265
Series: Acti9 iEM3000
Tariff Code (HS): 902830
Rated Current: 1 A / 5 A (CT)
Rated Voltage: 100-277 V / 173-480 V
Communication: BACnet, RS485, screw terminal block
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$227.98

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric A9MEM3265 is an Acti9 iEM3265 DIN-rail energy meter rated for 1 A / 5 A (CT) via CT connection (1 A / 5 A secondary), covering 1P+N, 3P and 3P+N networks from 100-277 V or 173-480 V at 50/60 Hz. It measures active and reactive energy, active and reactive power, current, voltage (four-quadrant), provides 1 programmable digital input, 1 programmable digital output (pulse capable, 5-40 v dc @ 50 ma), and communicates over BACnet, RS485, screw terminal block, with MID certification for 4-tariff sub-billing.

Technical Specifications

SKU A9MEM3265
GTIN 3606480616518
Brand Schneider Electric
Range Acti9 iEM3000
Device iEM3265
Input type Current transformer (1 A or 5 A secondary)
Line rated current 1 A / 5 A (CT)
Rated voltage 100-277 V / 173-480 V AC
Network frequency 50 Hz / 60 Hz
Accuracy class Class 0.5S active energy (IEC 62053-22), Class 0.5S active energy (IEC 61557-12), Class C active energy (EN 50470-3)
Measured values Active and reactive energy, active and reactive power, current, voltage (four-quadrant)
Tariff input 4 tariff schedules
Communication BACnet, RS485, screw terminal block
Digital I/O 1 programmable digital input, 1 programmable digital output (pulse capable, 5-40 V DC @ 50 mA)
Display LCD
Mounting Clip-on, DIN rail
Overvoltage category III
IP rating IP40 front panel / IP20 body
Pollution degree 2
Operating temperature -25 to 70 C (IEC)
Dimensions 90 x 95 x 69 mm
Weight 260 g

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • EAC
  • RCM
  • MID
  • NMI
  • IEC 61010-1
  • IEC 61557-12
  • EN 50470-3

Selection Notes

Pick the A9MEM3265 over the Modbus A9MEM3255 when the building-management system speaks BACnet directly; both share the same CT input, four-tariff capability and MID certification for contractual sub-billing above 63 A.

Technical Details

Short Description
Acti9 iEM3265 energy meter, CT connected (1 A/5 A), BACnet, MID sub-billing certified.
Rated Current (Ampere)
1 A / 5 A (CT)
Rated Voltage (VAC)
100-277 V / 173-480 V
Mounting Type
DIN rail
Protection Type
IP40 front / IP20 body
Catalog No
A9MEM3265
Delivery Date (Days)
30 days
Model Number
iEM3265
Tariff Code
902830
