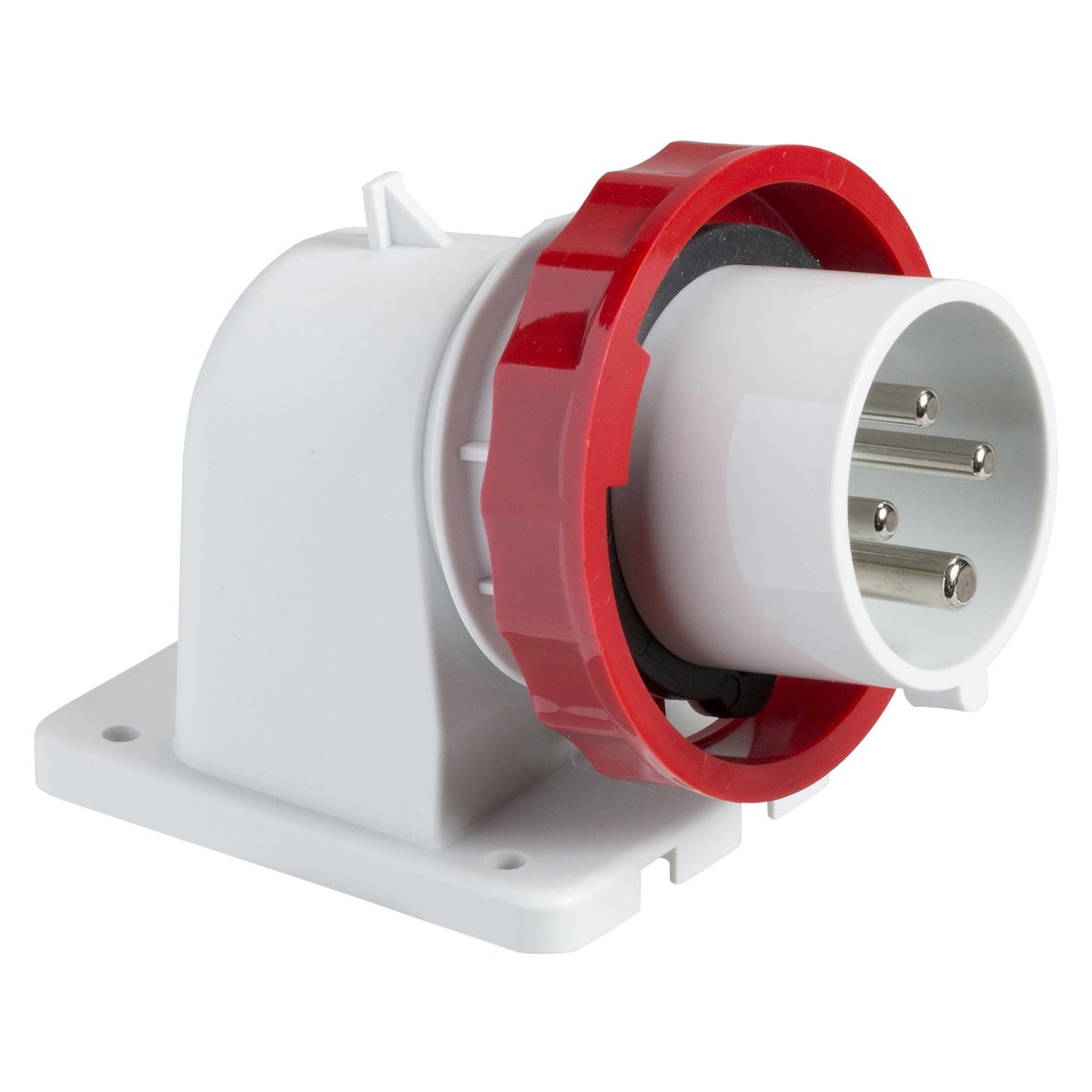

Schneider Electric 83899 PratiKa Container Panel Plug 32 A 3P+E 400-440 V IP67 Industrial Plug

% $-24.91
Schneider Electric 83899 PratiKa Industrial Plug Container - 32 A 3P+E
Schneider Electric 83899 PratiKa Industrial Plug Container - 32 A 3P+E

Schneider Electric 83899 PratiKa Container Panel Plug 32 A 3P+E 400-440 V IP67 Industrial Plug

Brand: Schneider Electric
Reference No: 83899
Catalog No: 83899
Tariff Code (HS): 853669
Rated Current: 32 A
Rated Voltage: 400-440 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$24.91

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric 83899 is a PratiKa Mureva plug for container, rated 32 A for 3P+E networks at 400-440 V AC, 50/60 Hz. It panel-mounts with captive-screw terminals accepting 2.5-10 mm2 cable, reaches IP67 (IK08) protection with an 850 C fire resistance rating, and uses a 3 o'clock ground-lug position matched to container power-distribution sockets for correct polarity alignment.

Technical Specifications

Reference 83899
Brand Schneider Electric
Range PratiKa
Product type Plug
Poles 3P+E
Rated current (In) 32 A
Rated operational voltage (Ue) 400-440 V AC
Network frequency 50/60 Hz
Clock position 3 h
Connections / terminals Captive screws, completely loosened
Cable cross section 2.5-10 mm2
Thread type Pg 21
Material Self-extinguishing engineering polymer, nickel-plated brass pins
Colour Grey (RAL 7035)
Voltage colour Red
IP degree of protection IP67 (IEC 60529)
IK degree of protection IK08 (EN 62262)
Fire resistance 850 C
Operating temperature -25 to 40 C
Base dimensions 90 x 100 mm
Height x Width x Depth 100 x 90 x 112 mm
Net weight 0.333 kg

Certifications & Standards

  • EN 60309-1
  • EN 60309-2

Selection Notes

Select the 83899 when the downstream load matches its 32 A rating and 3P+E configuration; its 3P+E configuration suits three-phase loads such as motors that do not require a neutral conductor. The panel mounting and container body set how it sits relative to the enclosure, and IP67 adds temporary-immersion protection suited to construction sites, agricultural installations and other wet or outdoor locations.

Technical Details

Short Description
PratiKa plug, 32 A, 3P+E, 400-440 V AC, IP67.
Rated Current (Ampere)
32 A
Rated Voltage (VAC)
400-440 V
Mounting Type
Panel-mounted
Protection Type
IP67
Catalog No
83899
Delivery Date (Days)
30 days
Model Number
PratiKa
Tariff Code
853669
