Schneider Electric 82046 Unika Industrial Socket Interlocked - 32 A 3P+E

Schneider Electric 82046 Unika Interlocked Panel Socket 32 A 3P+E 380-415 V IP44 Industrial Socket

Name: Schneider Electric 82046 Unika Interlocked Panel Socket 32 A 3P+E 380-415 V IP44 Industrial Socket
Brand: Schneider Electric
SKU: 82046
Price: 88.18 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: 82046

Catalog No: 82046

Tariff Code (HS): 853669

Rated Current: 32 A

Rated Voltage: 380-415 V

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$88.18

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

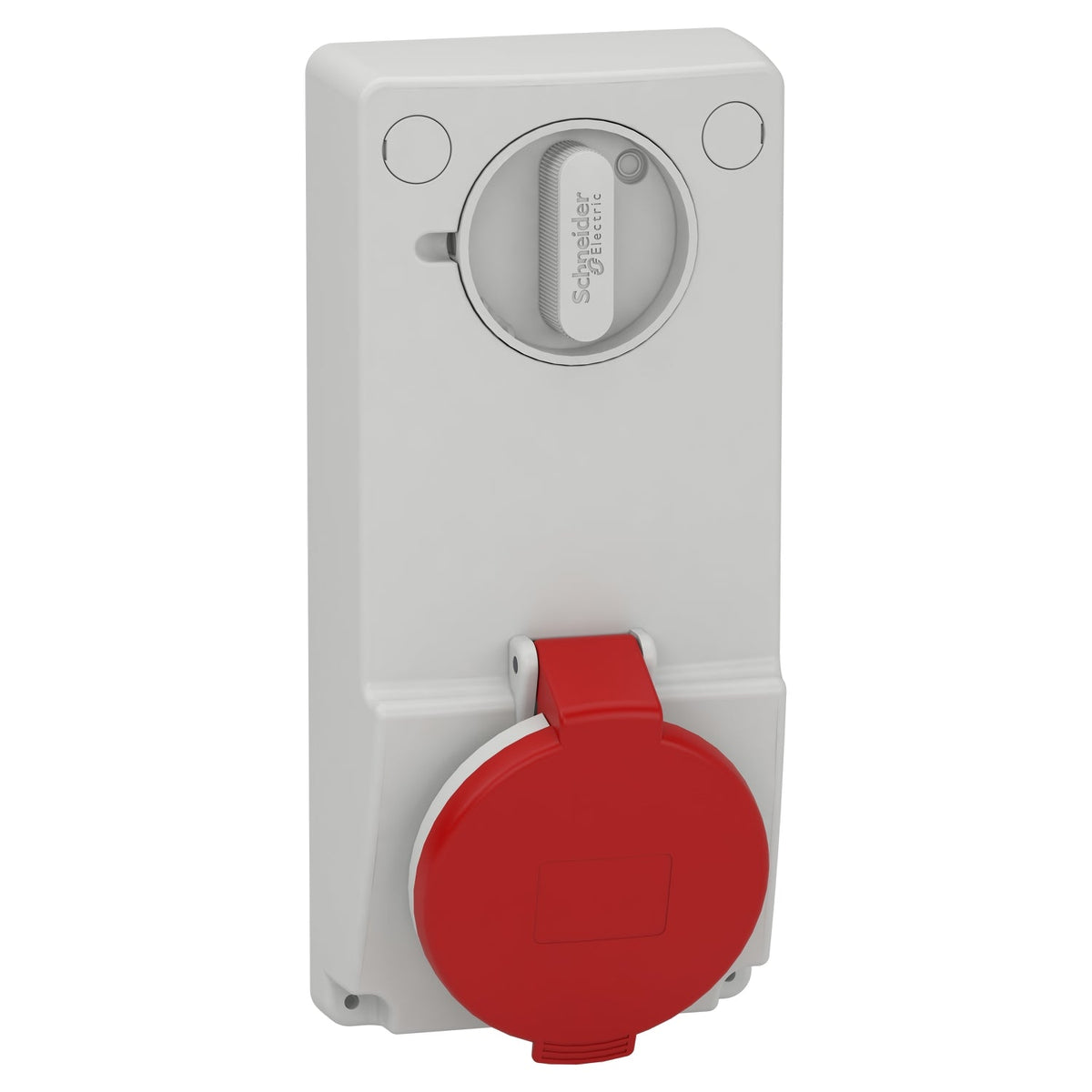

The Schneider Electric 82046 is a Unika interlocked industrial socket rated 32 A for 3P+E networks at 380-415 V AC, 50/60 Hz. Its mechanical interlock blocks the plug from being inserted or withdrawn while the integral switch is live, and it is panel-mounted with IP44 (IK09) protection, a 750 C fire resistance rating and a red voltage-identification ring on its grey (ral 7035) housing.

Technical Specifications

Reference	82046
Brand	Schneider Electric
Range	Unika
Product type	Interlocked socket
Poles	3P+E
Rated current (In)	32 A
Rated operational voltage (Ue)	380-415 V AC
Network frequency	50/60 Hz
Clock position	6 h
Protection type	Without protection
Connections / terminals	Captive screws
Cable cross section	10 mm2 max
Maximum cable outer diameter	25 mm
Thread type	Pg 21
Material	Self-extinguishing engineering polymer housing, nickel-plated brass sleeves
Colour	Grey (RAL 7035)
Voltage colour	Red
IP degree of protection	IP44 (IEC 60529)
IK degree of protection	IK09 (EN 62262)
Fire resistance	750 C
Operating temperature	-25 to 40 C
Base dimensions	103 x 225 mm
Height x Width x Depth	225 x 103 x 128 mm
Net weight	0.74 kg

Certifications & Standards

IEC 60309-1
IEC 60309-2

Selection Notes

Choose the 82046 over a straight (non-interlocked) socket of the same rating when the circuit must be de-energised before the plug can be removed; its 3P+E configuration suits three-phase loads such as motors that do not require a neutral conductor. IP44 covers splash protection for sheltered indoor or covered outdoor panel locations, and the panel mounting keeps the 32 A rating consistent with the captive-screw terminal sizing listed above.

Technical Details

Short Description

Unika interlocked socket, 32 A, 3P+E, 380-415 V AC, IP44.

Rated Current (Ampere)

32 A

Rated Voltage (VAC)

380-415 V

Mounting Type

Panel-mounted

Protection Type

IP44

Catalog No

82046

Delivery Date (Days)

30 days

Model Number

Unika

Tariff Code

853669
