Schneider Electric 81804 Mureva PK Panel-mounted Plug 16 A 2P+E 200-250 V IP44 Industrial Plug

% $-15.94

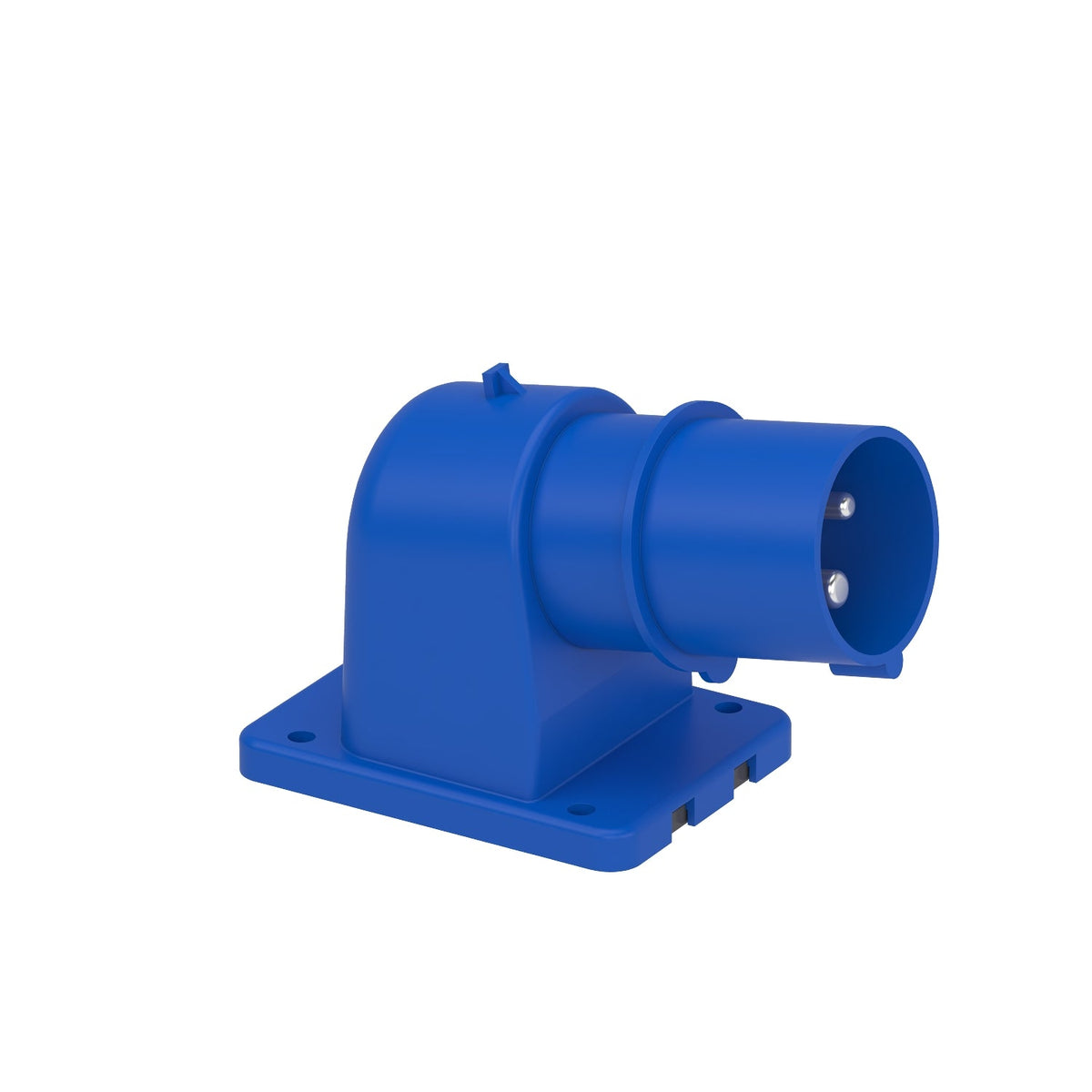

Schneider Electric 81804 Mureva PK panel-mounted plug - 16 A 2P+E IP44
Schneider Electric 81804 Mureva PK panel-mounted plug - 16 A 2P+E IP44

Schneider Electric 81804 Mureva PK Panel-mounted Plug 16 A 2P+E 200-250 V IP44 Industrial Plug

Brand: Schneider Electric
Reference No: 81804
Catalog No: 81804
Tariff Code (HS): 853669
Rated Current: 16 A
Rated Voltage: 200-250 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$15.94

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric 81804 is a Mureva PK industrial plug rated 16 A at 200-250 V, configured single-phase, 2P+E. It is panel-mounted, uses 90-degree angled contacts set at the 6 h clock position, and carries an IP44 rating for use in washdown or outdoor industrial areas. The self-extinguishing polymer housing weighs 0.135 kg, in line with its current rating.

Technical Specifications

Reference 81804
Brand Schneider Electric
Range Mureva PK
Device short name Mureva plug
Product type Plug
Poles 2P+E
Network type AC
Outlet standard Industrial (IEC 60309)
Mounting mode Panel-mounted
Shape 90° angled
Rated current (In) 16 A
Rated operational voltage (Ue) 200-250 V
Network frequency 50/60 Hz
Ground lug clock position 6 h
Housing material Self-extinguishing engineering polymer
Cable cross section 1...4 mm2
Colour Blue
Voltage colour code Blue
IP degree of protection IP44 (IEC 60529)
IK degree of protection IK08 (EN 62262)
Fire resistance 850 degC (IEC 60695-2-11)
Mounting base dimensions 65 x 85 mm
Dimensions (H x W x D) 123 x 65 x 82 mm
Net weight 0.135 kg

Certifications & Standards

  • EN 60309-1
  • EN 60309-2

Selection Notes

At IP44 rather than IP67, this plug suits an indoor control panel where splash protection is enough and the lower IP rating keeps the body compact. The 16 A 2P+E rating covers single-phase control circuits and light equipment; the 1-4 mm2 terminal capacity matches the lighter cable used at this current, not the heavier gland entries on the 63/125 A IP67 plugs in the range.

Technical Details

Short Description
Schneider Electric 81804 Mureva PK panel-mounted plug, 16 A, 2P+E, IP44.
Rated Current (Ampere)
16 A
Rated Voltage (VAC)
200-250 V
Mounting Type
Panel-mounted
Protection Type
IP44
Catalog No
81804
Delivery Date (Days)
30 days
Model Number
Mureva PK Panel-mounted Plug
Tariff Code
853669
