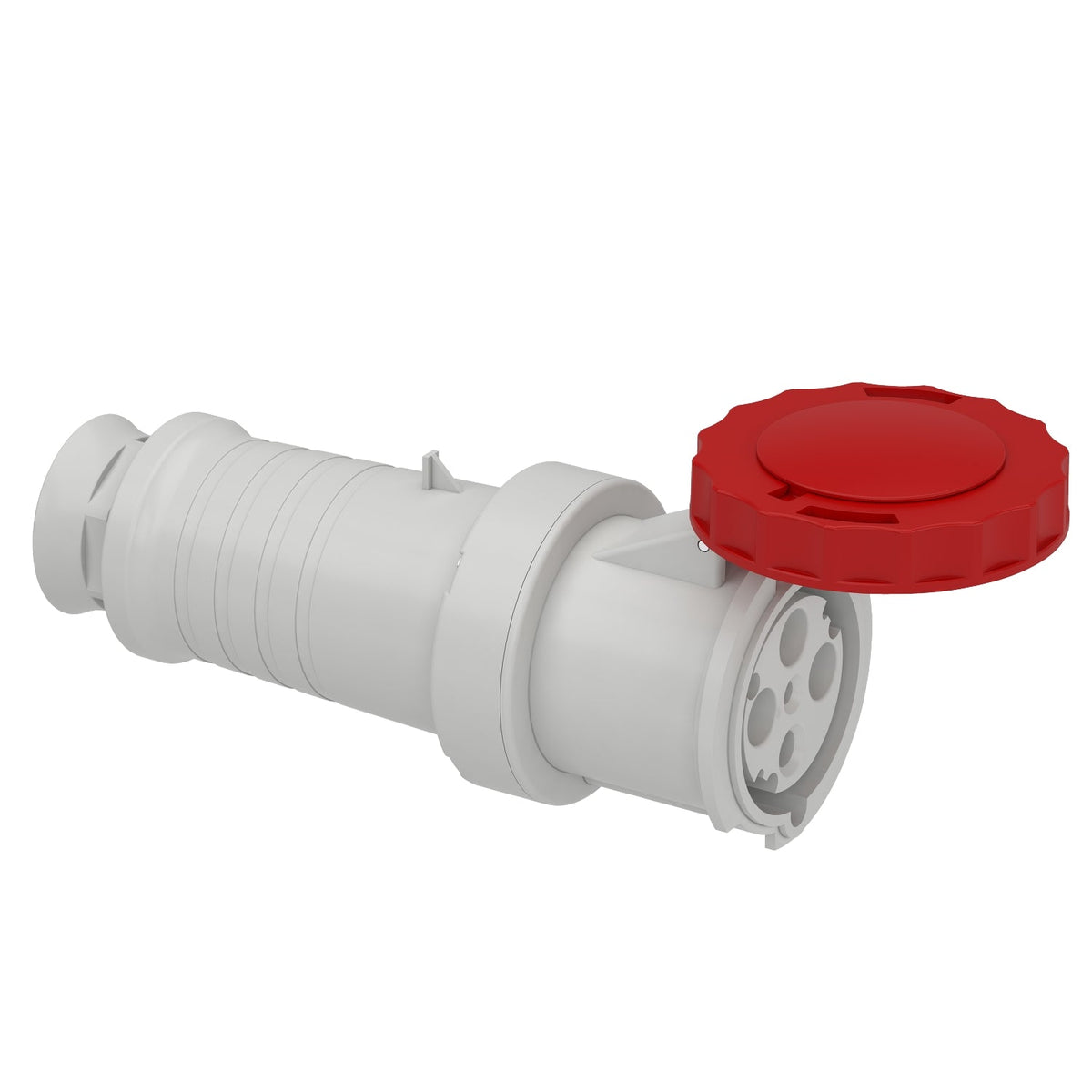

Schneider Electric 81482 Mureva PK portable (wander) socket - 63 A 3P+E IP67

Schneider Electric 81482 Mureva PK Wander Socket 63 A 3P+E 380-415 V IP67 Industrial Socket

Name: Schneider Electric 81482 Mureva PK Wander Socket 63 A 3P+E 380-415 V IP67 Industrial Socket
Brand: Schneider Electric
SKU: 81482
Price: 67.92 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: 81482

Catalog No: 81482

Tariff Code (HS): 853669

Rated Current: 63 A

Rated Voltage: 380-415 V

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$67.92

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Schneider Electric 81482 is a Mureva PK industrial socket rated 63 A at 380-415 V, configured three-phase without neutral, 3P+E. It is portable (wander), uses straight contacts set at the 6 h clock position, and carries an IP67 rating for use in washdown or outdoor industrial areas. The self-extinguishing polymer housing weighs 0.742 kg, in line with its current rating.

Technical Specifications

Reference	81482
Brand	Schneider Electric
Range	Mureva PK
Device short name	Mureva socket
Product type	Wander socket
Poles	3P+E
Network type	AC
Outlet standard	Industrial (IEC 60309)
Shape	Straight
Rated current (In)	63 A
Rated operational voltage (Ue)	380-415 V
Network frequency	50/60 Hz
Ground lug clock position	6 h
Housing material	Self-extinguishing engineering polymer
Cable cross section	6...25 mm2
Cable outer diameter	17...31 mm
Cable entry thread	Pg 36
Colour	Grey (RAL 7035)
Voltage colour code	Red
IP degree of protection	IP67 (IEC 60529)
IK degree of protection	IK08 (EN 62262)
Fire resistance	850 degC (IEC 60695-2-11)
Dimensions (H x W x D)	110 x 110 x 265 mm
Net weight	0.742 kg

Certifications & Standards

IEC 60309-1
IEC 60309-2

Selection Notes

This 3P+E wander socket extends a three-phase-only supply, with no neutral core, matching equipment that never draws single-phase power through the same lead. It pairs with the matching 3P+E wander plug at the other end of the extension run; pick the 3P+N+E socket instead if a neutral is needed downstream.

Technical Details

Short Description

Schneider Electric 81482 Mureva PK portable (wander) socket, 63 A, 3P+E, IP67.

Rated Current (Ampere)

63 A

Rated Voltage (VAC)

380-415 V

Mounting Type

Portable (wander)

Protection Type

IP67

Catalog No

81482

Delivery Date (Days)

30 days

Model Number

Mureva PK Portable (wander) Socket

Tariff Code

853669
