Schneider Electric 81394 Mureva PK Wander Plug 125 A 3P+E 380-415 V IP67 Industrial Plug

% $-108.74

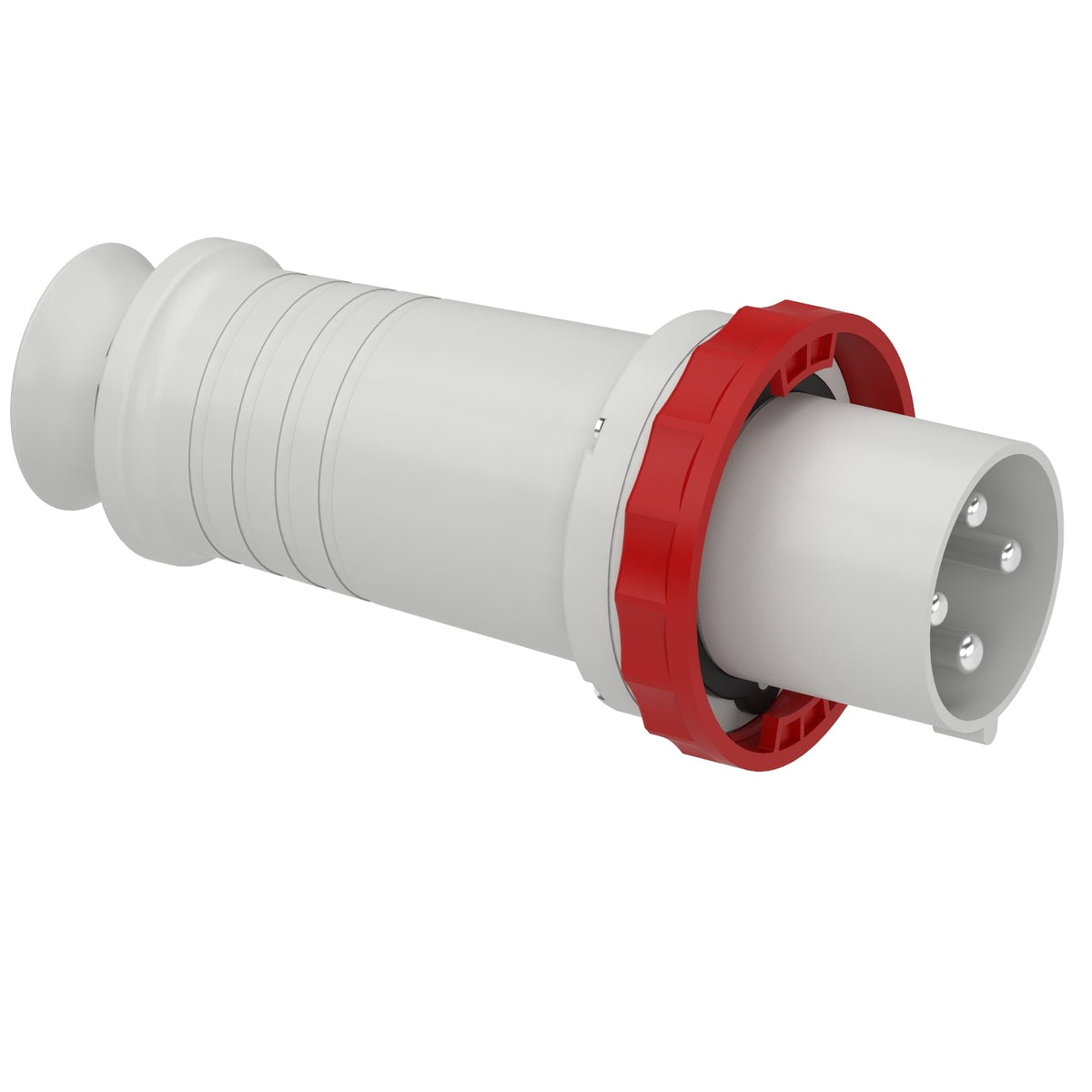

Schneider Electric 81394 Mureva PK portable (wander) plug - 125 A 3P+E IP67
Schneider Electric 81394 Mureva PK portable (wander) plug - 125 A 3P+E IP67

Schneider Electric 81394 Mureva PK Wander Plug 125 A 3P+E 380-415 V IP67 Industrial Plug

Brand: Schneider Electric
Reference No: 81394
Catalog No: 81394
Tariff Code (HS): 853669
Rated Current: 125 A
Rated Voltage: 380-415 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$108.74

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric 81394 is a Mureva PK industrial plug rated 125 A at 380-415 V, configured three-phase without neutral, 3P+E. It is portable (wander), uses straight contacts set at the 6 h clock position, and carries an IP67 rating for use in washdown or outdoor industrial areas. The self-extinguishing polymer housing weighs 1.322 kg, in line with its current rating.

Technical Specifications

Reference 81394
Brand Schneider Electric
Range Mureva PK
Device short name Mureva plug
Product type Wander plug
Poles 3P+E
Network type AC
Outlet standard Industrial (IEC 60309)
Shape Straight
Rated current (In) 125 A
Rated operational voltage (Ue) 380-415 V
Network frequency 50/60 Hz
Ground lug clock position 6 h
Housing material Self-extinguishing engineering polymer
Cable cross section 16...70 mm2
Cable outer diameter 26...48 mm
Cable entry thread Pg 48
Colour Grey (RAL 7035)
Voltage colour code Red
IP degree of protection IP67 (IEC 60529)
IK degree of protection IK08 (EN 62262)
Fire resistance 850 degC (IEC 60695-2-11)
Dimensions (H x W x D) 325 x 131 x 131 mm
Net weight 1.322 kg

Certifications & Standards

  • IEC 60309-1
  • IEC 60309-2

Selection Notes

At 125 A this wander plug terminates a heavier three-phase supply cable than the 63 A version handles, for equipment such as larger welding transformers or motor loads moved between work areas. The Pg 48 gland and 26-48 mm cable entry size the fitting to that heavier cable; use the 63 A plug instead for lighter portable loads.

Technical Details

Short Description
Schneider Electric 81394 Mureva PK portable (wander) plug, 125 A, 3P+E, IP67.
Rated Current (Ampere)
125 A
Rated Voltage (VAC)
380-415 V
Mounting Type
Portable (wander)
Protection Type
IP67
Catalog No
81394
Delivery Date (Days)
30 days
Model Number
Mureva PK Portable (wander) Plug
Tariff Code
853669
