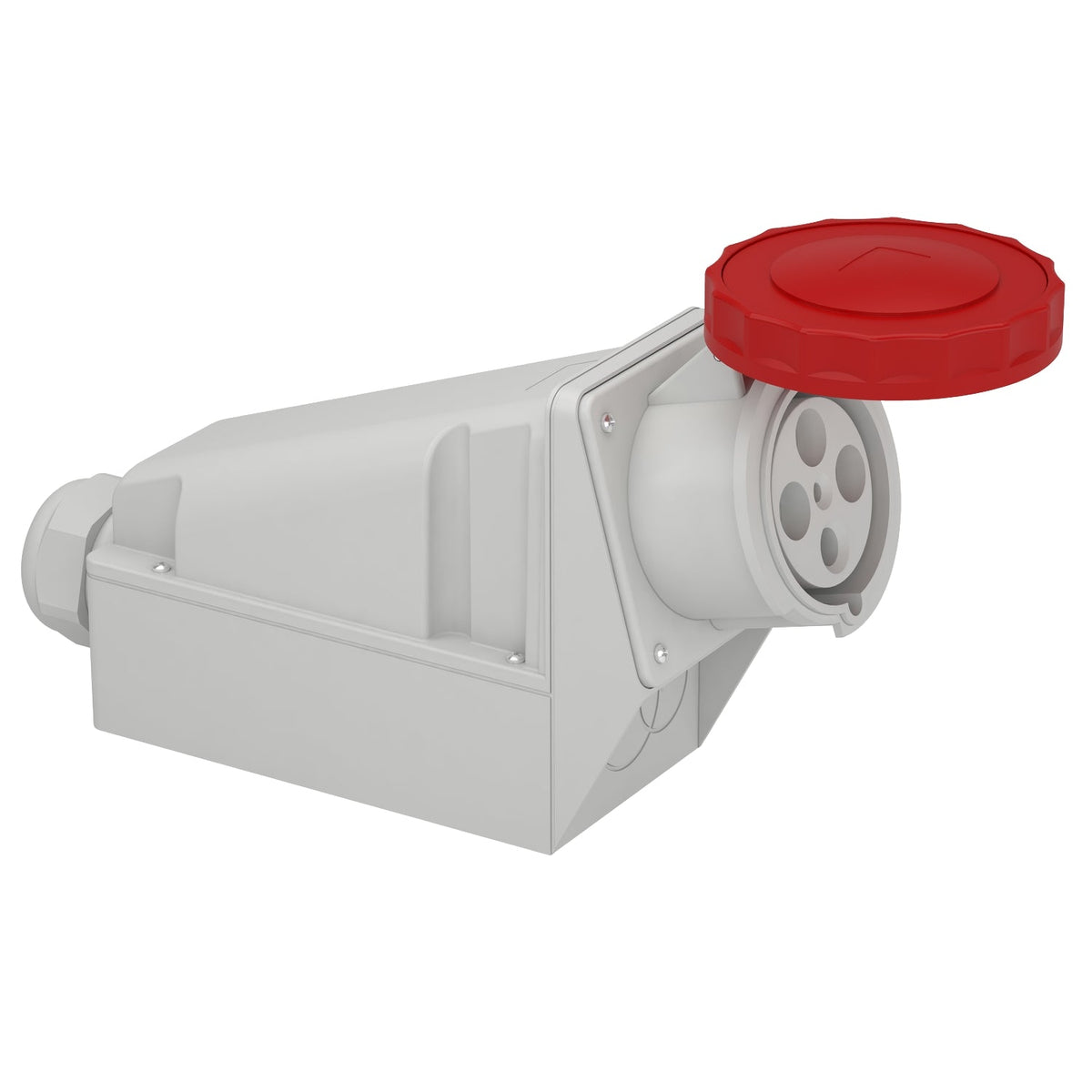

Schneider Electric 81194 Mureva PK Wall-mounted Socket 125 A 3P+E 380-415 V IP67 Industrial Socket

% $-158.81
Schneider Electric 81194 Mureva PK wall-mounted socket - 125 A 3P+E IP67
Schneider Electric 81194 Mureva PK wall-mounted socket - 125 A 3P+E IP67

Schneider Electric 81194 Mureva PK Wall-mounted Socket 125 A 3P+E 380-415 V IP67 Industrial Socket

Brand: Schneider Electric
Reference No: 81194
Catalog No: 81194
Tariff Code (HS): 853669
Rated Current: 125 A
Rated Voltage: 380-415 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$158.81

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric 81194 is a Mureva PK industrial socket rated 125 A at 380-415 V, configured three-phase without neutral, 3P+E. It is wall-mounted, uses angled contacts set at the 6 h clock position, and carries an IP67 rating for use in washdown or outdoor industrial areas. The self-extinguishing polymer housing weighs 1.932 kg, in line with its current rating.

Technical Specifications

Reference 81194
Brand Schneider Electric
Range Mureva PK
Device short name Mureva socket
Product type Socket
Poles 3P+E
Network type AC
Outlet standard Industrial (IEC 60309)
Mounting mode Wall-mounted
Shape Angled
Rated current (In) 125 A
Rated operational voltage (Ue) 380-415 V
Network frequency 50/60 Hz
Ground lug clock position 6 h
Housing material Self-extinguishing engineering polymer
Cable cross section 16...70 mm2
Cable entry thread Pg 48
Colour Grey (RAL 7035)
Voltage colour code Red
IP degree of protection IP67 (IEC 60529)
IK degree of protection IK08 (EN 62262)
Fire resistance 850 degC (IEC 60695-2-11)
Mounting base dimensions 114 x 224 mm
Dimensions (H x W x D) 340 x 114 x 213 mm
Net weight 1.932 kg

Certifications & Standards

  • EN 60309-1
  • EN 60309-2

Selection Notes

At 125 A this is the higher-current wall-mounted socket in the Mureva PK range, built for larger three-phase machinery and welding transformers that the 63 A variant cannot carry. The wider Pg 48 cable gland and 16-70 mm2 cable cross-section reflect the heavier supply cable that current level needs; use the 63 A version instead for lighter three-phase tools where cable and connector size matter more than headroom.

Technical Details

Short Description
Schneider Electric 81194 Mureva PK wall-mounted socket, 125 A, 3P+E, IP67.
Rated Current (Ampere)
125 A
Rated Voltage (VAC)
380-415 V
Mounting Type
Wall-mounted
Protection Type
IP67
Catalog No
81194
Delivery Date (Days)
30 days
Model Number
Mureva PK Wall-mounted Socket
Tariff Code
853669
