Schneider Electric 81183 Mureva PK Wall-mounted Socket 63 A 3P+N+E 380-415 V IP67 Industrial Socket

% $-85.59

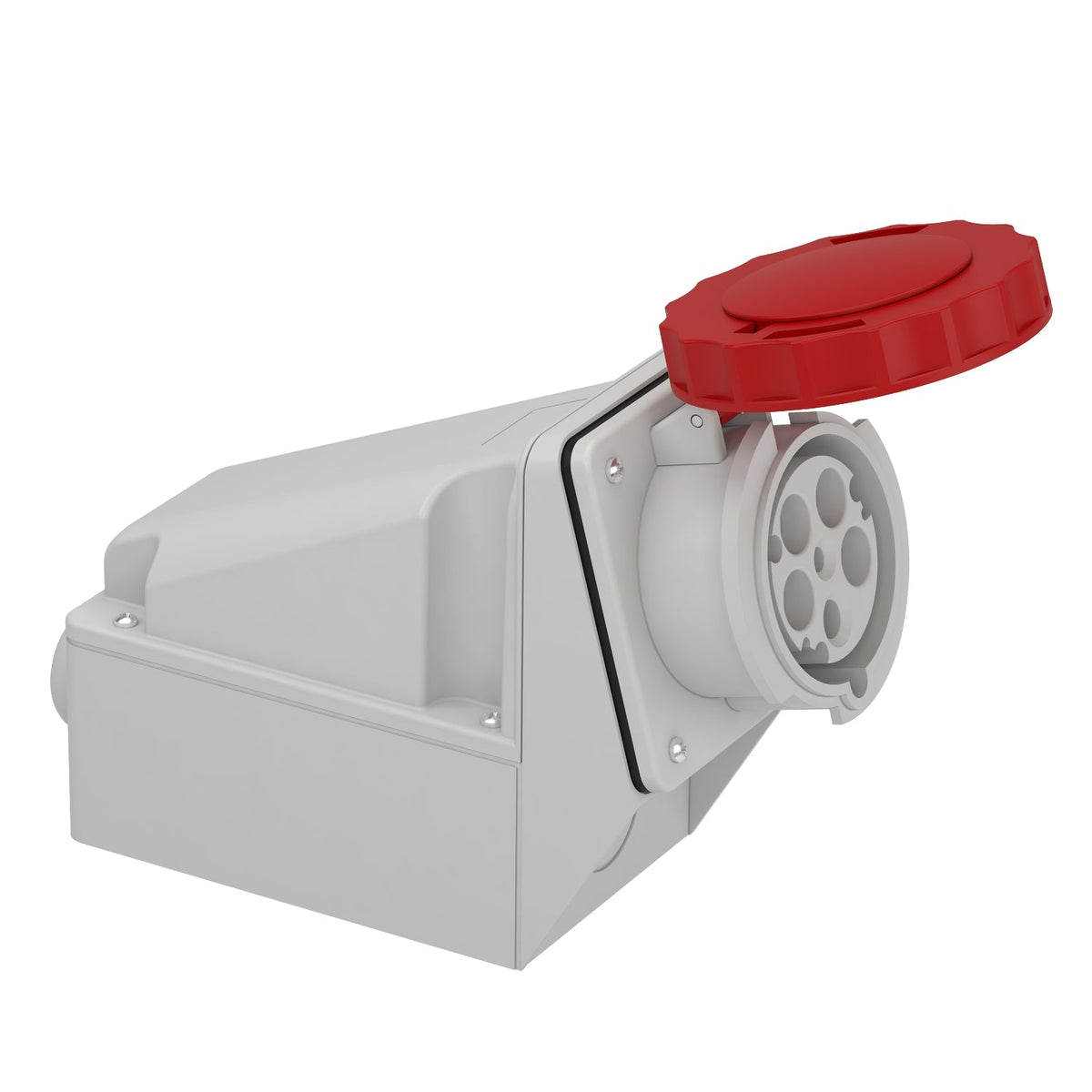

Schneider Electric 81183 Mureva PK wall-mounted socket - 63 A 3P+N+E IP67
Schneider Electric 81183 Mureva PK wall-mounted socket - 63 A 3P+N+E IP67

Schneider Electric 81183 Mureva PK Wall-mounted Socket 63 A 3P+N+E 380-415 V IP67 Industrial Socket

Brand: Schneider Electric
Reference No: 81183
Catalog No: 81183
Tariff Code (HS): 853669
Rated Current: 63 A
Rated Voltage: 380-415 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$85.59

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric 81183 is a Mureva PK industrial socket rated 63 A at 380-415 V, configured three-phase with neutral, 3P+N+E. It is wall-mounted, uses angled contacts set at the 6 h clock position, and carries an IP67 rating for use in washdown or outdoor industrial areas. The self-extinguishing polymer housing weighs 1.02 kg, in line with its current rating.

Technical Specifications

Reference 81183
Brand Schneider Electric
Range Mureva PK
Device short name Mureva socket
Product type Socket
Poles 3P+N+E
Network type AC
Outlet standard Industrial (IEC 60309)
Mounting mode Wall-mounted
Shape Angled
Rated current (In) 63 A
Rated operational voltage (Ue) 380-415 V
Network frequency 50/60 Hz
Ground lug clock position 6 h
Housing material Self-extinguishing engineering polymer
Cable cross section 6...25 mm2
Cable entry thread Pg 36
Colour Grey (RAL 7035)
Voltage colour code Red
IP degree of protection IP67 (IEC 60529)
IK degree of protection IK08 (EN 62262)
Fire resistance 850 degC (IEC 60695-2-11)
Mounting base dimensions 104 x 162 mm
Dimensions (H x W x D) 255 x 104 x 180 mm
Net weight 1.02 kg

Certifications & Standards

  • EN 60309-1
  • EN 60309-2

Selection Notes

Carrying a dedicated neutral conductor, the 3P+N+E version suits a three-phase feed that also powers single-phase loads internally, such as a distribution board drawing both 230 V and 400 V circuits from the same point. It mounts on a wall or column the same way as the 3P+E version in the range, just with one extra pole wired through; choose the 3P+E variant instead where no neutral is ever needed downstream.

Technical Details

Short Description
Schneider Electric 81183 Mureva PK wall-mounted socket, 63 A, 3P+N+E, IP67.
Rated Current (Ampere)
63 A
Rated Voltage (VAC)
380-415 V
Mounting Type
Wall-mounted
Protection Type
IP67
Catalog No
81183
Delivery Date (Days)
30 days
Model Number
Mureva PK Wall-mounted Socket
Tariff Code
853669
