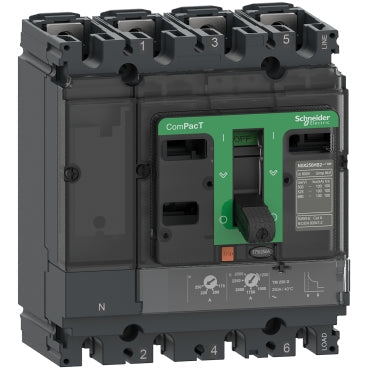

Schneider Electric C10F6TM050 NSX100F 4P 50A 36kA Moulded Case Circuit Breaker

The Schneider Electric C10F6TM050 is a Compact NSX100F 4-pole moulded case circuit breaker rated at 50A with a 36 kA breaking capacity at 415V AC, engineered for reliable overcurrent and short-circuit protection in industrial power distribution panels. Part of Schneider's trusted Compact NSX series, this MCCB delivers robust performance in demanding industrial environments. Weighing just 2.4 kg, it offers a compact footprint suited for space-constrained control panels and switchboards.

Technical Specifications

Applications & Use Cases

• Industrial Power Distribution: Protects feeders and sub-circuits in factory switchboards and distribution panels operating at 415V AC.
• Motor Circuit Protection: Suitable for protecting motor branch circuits against overload and short-circuit faults in industrial automation systems.
• Control Panel Integration: The compact 4-pole design fits efficiently into DIN-rail or busbar-mounted control panel assemblies.
• Commercial Buildings: Appropriate for main and sub-main distribution boards in commercial and light industrial installations requiring high breaking capacity.

Frequently Asked Questions

What is the breaking capacity of the C10F6TM050 at 415V AC?

The NSX100F C10F6TM050 has an ultimate breaking capacity (Icu) of 36 kA at 415V AC, making it suitable for high fault-level industrial installations.

How many poles does this circuit breaker have?

This unit is a 4-pole MCCB, suitable for three-phase plus neutral protection in 415V AC distribution systems.

What series does the C10F6TM050 belong to?

It belongs to Schneider Electric's Compact NSX100F series, a widely deployed range of moulded case circuit breakers for industrial and commercial applications.
