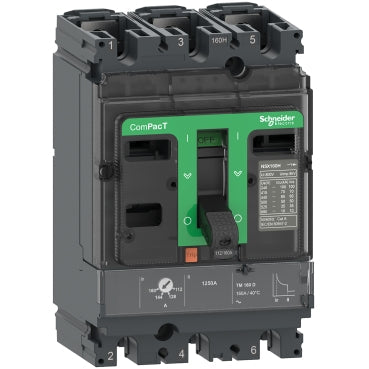

Schneider Electric C10F3TM032 NSX100F 3P 32A 36kA 415V Molded Case Circuit Breaker

The Schneider Electric C10F3TM032 is a ComPacT NSX100F molded case circuit breaker delivering 32A rated current across 3 poles with a 36 kA breaking capacity at 415V AC. Engineered for reliable overload and short-circuit protection in industrial power distribution panels, the NSX100F combines thermal-magnetic trip technology with a compact frame design suited for demanding applications. Weighing just 2.05 kg, this next-generation ComPacT NSX unit offers robust performance in a space-efficient footprint.

Technical Specifications

Applications & Use Cases

• Industrial Power Distribution: Ideal for main and sub-distribution boards in manufacturing plants, commercial buildings, and infrastructure projects requiring reliable 3-phase protection at up to 415V AC.
• Motor & Load Feeder Protection: Provides overload and short-circuit protection for motor feeders and branch circuits where thermal-magnetic trip characteristics are required.
• Panel Boards & Switchgear: Compact NSX100F frame integrates seamlessly into MCC (motor control centre) and LV switchgear assemblies, optimising panel space without compromising on 36 kA fault clearance capability.
• Generator & Transformer Protection: Suitable as an incoming circuit breaker for generator sets and downstream transformer feeders requiring high breaking capacity in a 3-pole configuration.
