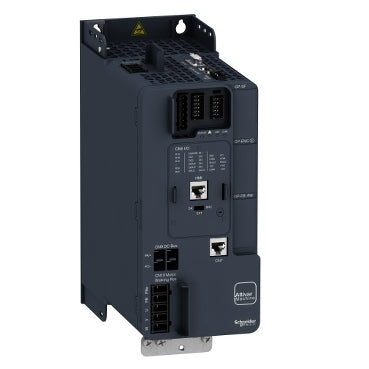

Schneider Electric ATV340U75N4 Altivar Machine ATV340 7.5kW/11kW 3P 380-480V 16.5A/24A Variable Speed Drive

The Schneider Electric ATV340U75N4 is a cabinet-mount variable speed drive from the Altivar Machine ATV340 series, rated at 7.5 kW (heavy duty) or 11 kW (normal duty) with a 380–480 V three-phase supply and output current of 16.5 A (HD) / 24 A (ND) at 4 kHz switching frequency. Designed for demanding machine applications requiring precise motor control, energy saving, and EMC compliance, the ATV340U75N4 delivers a breaking capacity of 22 kA and fits a compact 110 × 270 × 234 mm footprint at just 3 kg.

Technical Specifications

Certifications & Standards

• CE: European conformity marking for safety and EMC compliance
• CSA: Canadian Standards Association certification for North American markets
• TUV: TÜV safety and quality certification
• UL: Underwriters Laboratories listing for electrical safety
• REACH: EU regulation compliance for chemical substances
• RoHS: Restriction of Hazardous Substances directive compliance
• EN/IEC 61800-3: EMC requirements for variable speed drive systems
• EN/IEC 61800-3 Environment 1, Category C2: First environment EMC compliance at category C2
• EN/IEC 61800-3 Environment 2, Category C3: Second environment EMC compliance at category C3
• EN/IEC 61800-5-1: Safety requirements for power drive systems
• IEC 60721-3: Classification of environmental conditions for equipment
• IEC 61508: Functional safety of electrical/electronic/programmable safety-related systems
• IEC 13849-1: Safety of machinery — safety-related parts of control systems
• UL 61800-5-1: UL standard for safety of adjustable-speed electrical power drive systems
• IEC 60529: Degrees of protection provided by enclosures (IP code)
• EN/IEC 61131-2: Programmable controllers — equipment requirements and tests
• ISO 13849 Category 1: Safety of machinery control systems, category 1 classification
• IEC/EN 61508 SIL1: Safety Integrity Level 1 functional safety compliance
• IEC/EN 60204-1: Safety of machinery — electrical equipment of machines

Applications & Use Cases

• Variable speed control of three-phase AC induction motors in machine builder (OEM) applications
• Energy-saving pump, fan, and compressor drives where variable torque loads are present
• Conveyor, hoist, and material handling systems requiring precise frequency inverter control
• Packaging, textile, and printing machinery demanding high dynamic motor control performance
• Safety-critical machine applications requiring SIL1 / ISO 13849 Category 1 drive integration

Frequently Asked Questions

• What is the difference between heavy duty and normal duty ratings? Heavy duty (HD) rating — 7.5 kW / 16.5 A — is for applications with high overload cycles such as hoists or conveyors. Normal duty (ND) rating — 11 kW / 24 A — suits variable torque loads like pumps and fans with lower overload requirements.
• What supply voltage does the ATV340U75N4 accept? The drive accepts a three-phase supply of 380 to 480 V AC, covering standard European 400 V and North American 480 V industrial networks.
• Is an EMC filter built in? The ATV340U75N4 meets EN/IEC 61800-3 Category C2 (environment 1) and C3 (environment 2), confirming integrated or compatible EMC filter provision for both industrial and light industrial environments.
• What are the mounting requirements? The ATV340U75N4 is designed for cabinet mount installation in a control panel or enclosure. Dimensions are 110 mm W × 270 mm H × 234 mm D.
