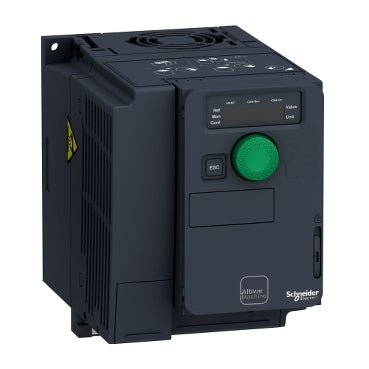

Schneider Electric ATV320U07N4C ATV320 0.75kW 3-Phase 380-500V Wall Mount Variable Speed Drive

The Schneider Electric ATV320U07N4C is a 0.75 kW wall-mount variable speed drive from the Altivar Machine ATV320 series, designed for 3-phase 380–500V AC motor control applications. Rated at 2.3A output current and compact at 105 × 142 × 158 mm, the ATV320U07N4C delivers precise frequency and torque control for machinery requiring energy-efficient, EMC-compliant motor management. Holding certifications including CE, ATEX, UL, CSA, and compliance with IEC/EN 61800-5-1, this drive is engineered for demanding industrial environments worldwide.

Technical Specifications

Certifications & Standards

• CE: Conformité Européenne — meets EU safety, health, and environmental protection requirements
• ATEX: Certified for use in explosive atmospheres per EU Directive 2014/34/EU
• NOM: Norma Oficial Mexicana — compliant with Mexican regulatory standards
• GOST: Russian Federation state standard certification
• EAC: Eurasian Conformity mark for Eurasian Economic Union markets
• RCM: Regulatory Compliance Mark for Australia and New Zealand
• KCC: Korea Communications Commission certification for South Korea
• UL: Underwriters Laboratories listed — North American safety standard
• CSA: Canadian Standards Association certified for Canadian market
• RoHS: Restriction of Hazardous Substances Directive compliant
• REACH: EU regulation on chemicals — compliant with SVHC requirements
• China RoHS: Compliant with Chinese restriction of hazardous substances regulation
• WEEE: Waste Electrical and Electronic Equipment Directive compliant
• EN IEC 61800-5-1: Adjustable speed electrical power drive systems — safety requirements
• IEC 61000-4-2: EMC immunity to electrostatic discharge
• IEC 61000-4-3: EMC immunity to radiated electromagnetic fields
• IEC 61000-4-4: EMC immunity to electrical fast transient/burst
• IEC 61000-4-6: EMC immunity to conducted disturbances induced by RF fields
• IEC 61000-4-11: EMC immunity to voltage dips, short interruptions, and variations
• IEC 60721-3-3: Classification of environmental conditions for stationary use at weatherprotected locations
• EN 60721-3: Classification of groups of environmental parameters and their severities
• ISO 13849: Safety of machinery — safety-related parts of control systems
• IEC/EN 61508: Functional safety of electrical/electronic/programmable electronic safety-related systems
• IEC/EN 60204-1: Safety of machinery — electrical equipment of machines
• EN 954-1: Safety of machinery — safety-related parts of control systems (categories)
