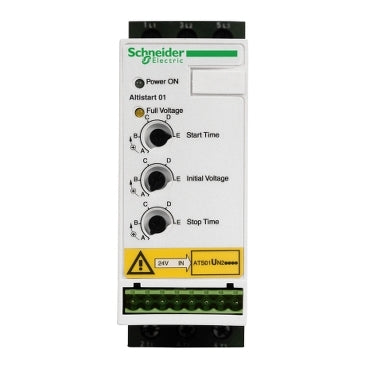

Schneider Electric ATSU01N206LT ATSU01 3P 6A 200-480V 0.75-3kW Altistart Soft Starter

The Schneider Electric ATSU01N206LT is a 3-phase electronic soft starter from the Altistart ATSU01 series, designed to provide smooth reduced-voltage starting and stopping for AC induction motors rated 0.75 to 3kW. The ATSU01 delivers controlled torque ramp-up, limiting inrush starting current and mechanical stress on driven equipment across a wide supply voltage range of 200 to 480V AC. Ideal for pump, fan, and conveyor applications where gentle motor acceleration is critical.

Technical Specifications

Applications & Use Cases

• Pump Systems: Eliminates water hammer and pressure surges on start by controlling ramp-up of starting current.
• Fans & Blowers: Reduces mechanical stress on belts and couplings during acceleration with torque control.
• Conveyors: Prevents load shifting and belt slip through smooth, configurable motor start sequences.
• Compressors: Limits inrush current peaks, protecting upstream switchgear and supply infrastructure.
• Light Industrial Machinery: Suitable for any 0.75–3kW 3-phase AC motor application requiring electronic soft starting and reduced voltage starting.
