Mersen Z1064508 HP15NH1XLGPV63 Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 1XL 63A With Plain Blades For Clip

% $-76.47
Mersen Z1064508 Special Purpose Fuse
Mersen Z1064508 Special Purpose Fuse

Mersen Z1064508 HP15NH1XLGPV63 Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 1XL 63A With Plain Blades For Clip

Brand: Mersen
Reference No: Z1064508
Catalog No: HP15NH1XLGPV63

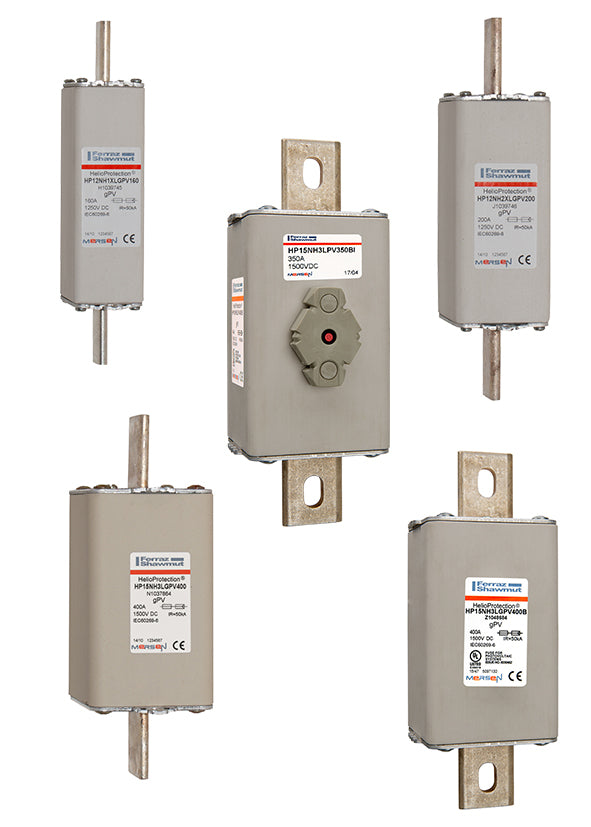

Series: HelioProtection® HP15NH, Photovoltaic fuse-links gPV 1500VDC
Tariff Code (HS): 85361090
Rated Current: 63 A
Rated Voltage: 1500 V
Stock: 0
Shipping Origin: Turkey EXW
$76.47

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Mersen HP15NH1XLGPV63 (Z1064508) is a photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 1XL 63A With Plain Blades For Clip from the HelioProtection® HP15NH, Photovoltaic fuse-links gPV 1500VDC range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No HP15NH1XLGPV63
Rated voltage DC UL 1500 V
Frequency (Hz) 50-60 Hz
Rated voltage DC IEC 1500 V
Ampere Rating 63 A
ROHS Compliant Yes
AC or DC DC
Speed/Characteristic gPV
Fuse Size 1XL
Mounting Clip
Max. Rated Breaking Capacity DC 50 kA @ 1500 V, L/R = 1 ms
Connection/Terminal Material Silver-Plated Copper
Connection/Terminal Type Plain Blades
Product group Special Purpose Fuses
Power Dissipation at Intermediate Current Value 10.2 W @ 0.7 In W
Power Dissipation at Rated Current Value 25 W
Product Width 39.5 mm
Product Length 192.5 mm
Product Height 64.5 mm
Sell Pack Quantity 1 EA
Sell Pack Weight 0.7 kg
Sell Pack Width 115 mm
Sell Pack Length 230 mm
Sell Pack Height 110 mm
Product Weight 0.7 kg
EAN/UPC 3605340605181

Certifications & Compliance

  • UL
  • CE
  • RoHS
  • UKCA

Technical Details

Short Description
Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 1XL 63A With Plain Blades For Clip
Rated Current (Ampere)
63 A
Rated Voltage (VAC)
1500 V
Mounting Type
Clip
Catalog No
HP15NH1XLGPV63
Standards
UL, CE, RoHS, UKCA
Model Number
HP15NH1XLGPV63
Tariff Code
85361090
