Mersen W205041 MI5FCP25V3.15 Miniature Fuses Size 5x20 250V 3.15A Fast (F) FC Axial Leads Mounting

% $-2.49

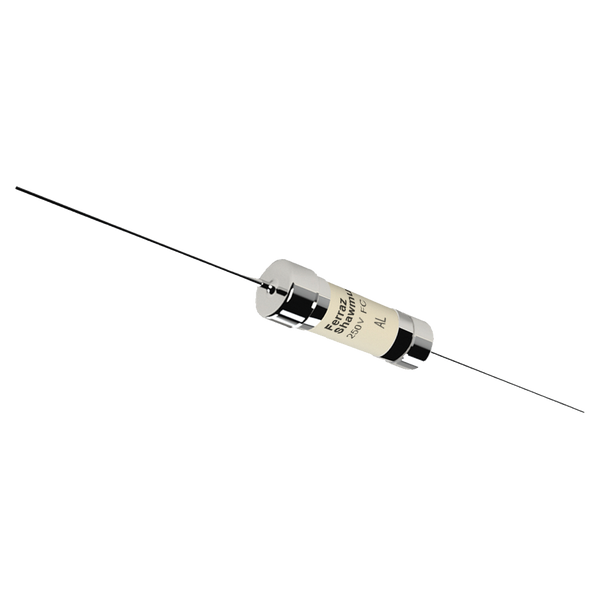

Mersen W205041 Miniature Fuse
Mersen W205041 Miniature Fuse
Mersen W205041 Miniature Fuse
Mersen W205041 Miniature Fuse

Mersen W205041 MI5FCP25V3.15 Miniature Fuses Size 5x20 250V 3.15A Fast (F) FC Axial Leads Mounting

Brand: Mersen
Reference No: W205041
Catalog No: MI5FCP25V3.15
Series: Semiconductor Miniature Fuses Size 5x20 FC 250V AL
Tariff Code (HS): 85361050
Rated Current: 3.15 A
Rated Voltage: 250 V
Stock: 0
Shipping Origin: Turkey EXW
$2.49

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Mersen MI5FCP25V3.15 (W205041) is a miniature Fuses Size 5x20 250V 3.15A Fast (F) FC Axial Leads Mounting from the Semiconductor Miniature Fuses Size 5x20 FC 250V AL range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No MI5FCP25V3.15
Rated voltage AC IEC 250 V
Ampere Rating 3.15 A
ROHS Compliant Yes
AC or DC AC
Speed/Characteristic Fast (F)
Fuse Size 5x20
Mounting Axial Leads
Clearing I2t At Rated Voltage 5 A²s
Melting I2t 2.5 A²s
Min Interrupting Rating (MBC) 1.5 kA
Design Details FC
Connection/Terminal Type Soldered connection
Product group Miniature Fuses
Body/Insulating Material Ceramic
Product Diameter 5.5 mm
Product Length 76 mm
Product Height 5.5 mm
Sell Pack Quantity 2000 EA
Sell Pack Weight 3.15 kg
Sell Pack Width 380 mm
Sell Pack Length 370 mm
Sell Pack Height 100 mm
Product Weight 0.0015 kg
EAN/UPC 3605340185195

Certifications & Compliance

  • UL
  • CE
  • RoHS
  • UKCA
  • REACH

Technical Details

Short Description
Miniature Fuses Size 5x20 250V 3.15A Fast (F) FC Axial Leads Mounting
Rated Current (Ampere)
3.15 A
Rated Voltage (VAC)
250 V
Mounting Type
Axial Leads
Catalog No
MI5FCP25V3.15
Standards
UL, CE, RoHS, UKCA, REACH
Model Number
MI5FCP25V3.15
Tariff Code
85361050
