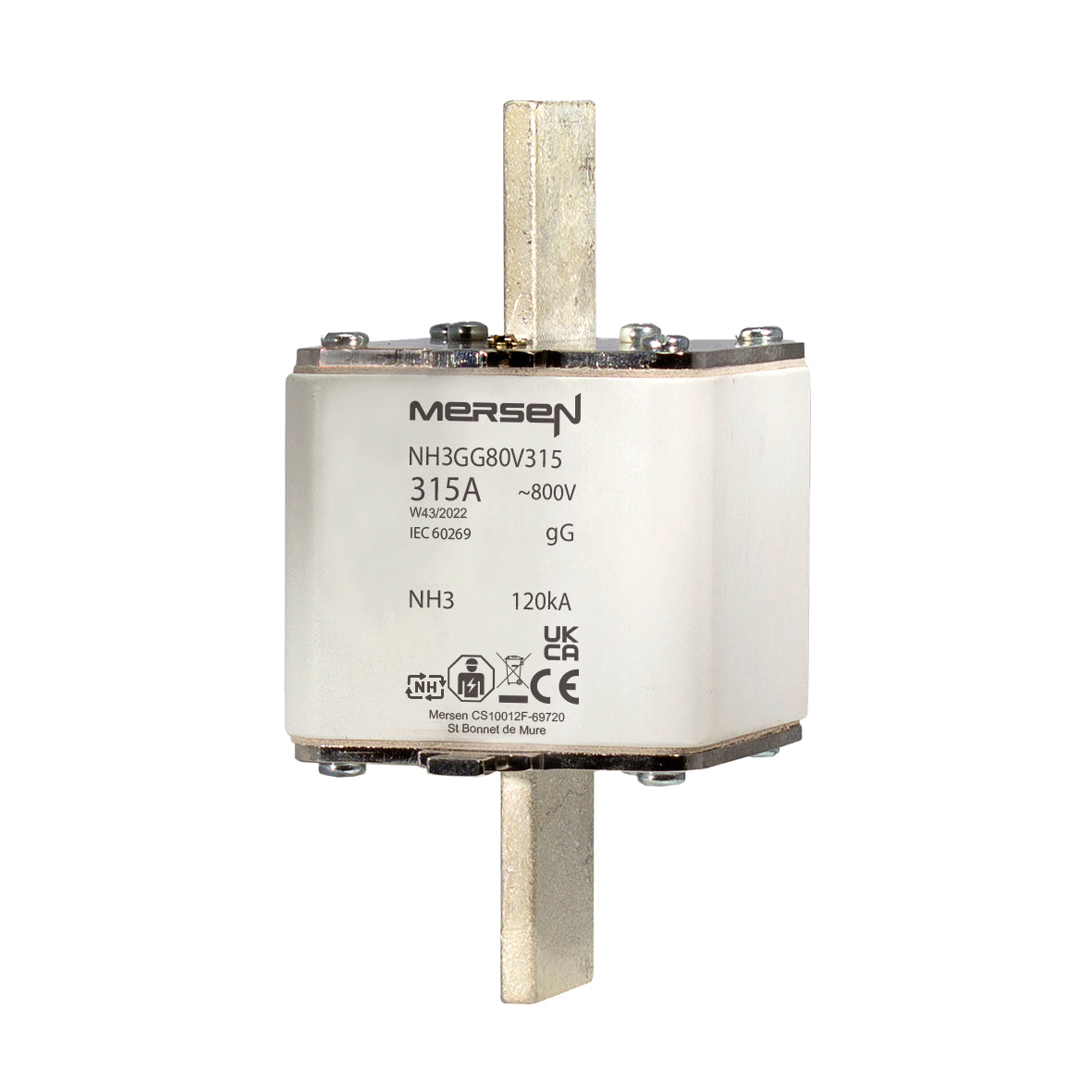

Mersen T1204182 NH3GG80V315 Photovoltaic fuse gG Size NH3 315A With Top indicator With Plain Blades For Clip

Name: Mersen T1204182 NH3GG80V315 Photovoltaic fuse gG Size NH3 315A With Top indicator With Plain Blades For Clip
Brand: Mersen
SKU: T1204182
Price: 148.27 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Mersen

Reference No: T1204182

Catalog No: NH3GG80V315

Series: HelioProtection® NH fuse-links 800VAC gG

Tariff Code (HS): 85361090

Rated Current: 315 A

Breaking Capacity: 120 kA

Rated Voltage: 800 V

Stock: 0

Shipping Origin: Turkey EXW

$148.27

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Mersen NH3GG80V315 (T1204182) is a photovoltaic fuse gG Size NH3 315A With Top indicator With Plain Blades For Clip from the HelioProtection® NH fuse-links 800VAC gG range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No	NH3GG80V315
Frequency (Hz)	50-60 Hz
Rated voltage AC IEC	800 V
Ampere Rating	315 A
ROHS Compliant	Yes
AC or DC	AC
Fuse Class	Photovoltaic
Speed/Characteristic	gG
Fuse Size	NH3
Mounting	Clip
Clearing I2t At Rated Voltage	1340 kA²s
Melting I2t	140 kA²s
AC Max I.R./Breaking Capacity: I1	120 kA
Min Interrupting Rating (MBC)	120 kA
Indication System	Yes
Indication System Type	Top indicator
Connection/Terminal Material	Silver-Plated Copper
Connection/Terminal Type	Plain Blades
Product group	Special Purpose Fuses
Power Dissipation at Intermediate Current Value	12.8W @0.7In W
Power Dissipation at Rated Current Value	29 W
Product Width	73 mm
Product Length	150 mm
Product Height	73 mm
Sell Pack Quantity	3 EA
Sell Pack Weight	3.3 kg
Sell Pack Width	161 mm
Sell Pack Length	244 mm
Sell Pack Height	97 mm
Product Weight	1.2 kg
EAN/UPC	3605340705843

Certifications & Compliance

RoHS
CE
UKCA

Technical Details

Short Description

Photovoltaic fuse gG Size NH3 315A With Top indicator With Plain Blades For Clip

Rated Current (Ampere)

315 A

Breaking Capacity (kA)

120 kA

Rated Voltage (VAC)

800 V

Mounting Type

Clip

Catalog No

NH3GG80V315

Standards

RoHS, CE, UKCA

Model Number

NH3GG80V315

Tariff Code

85361090
