Mersen P1023122 Fuse Switch Disconnector

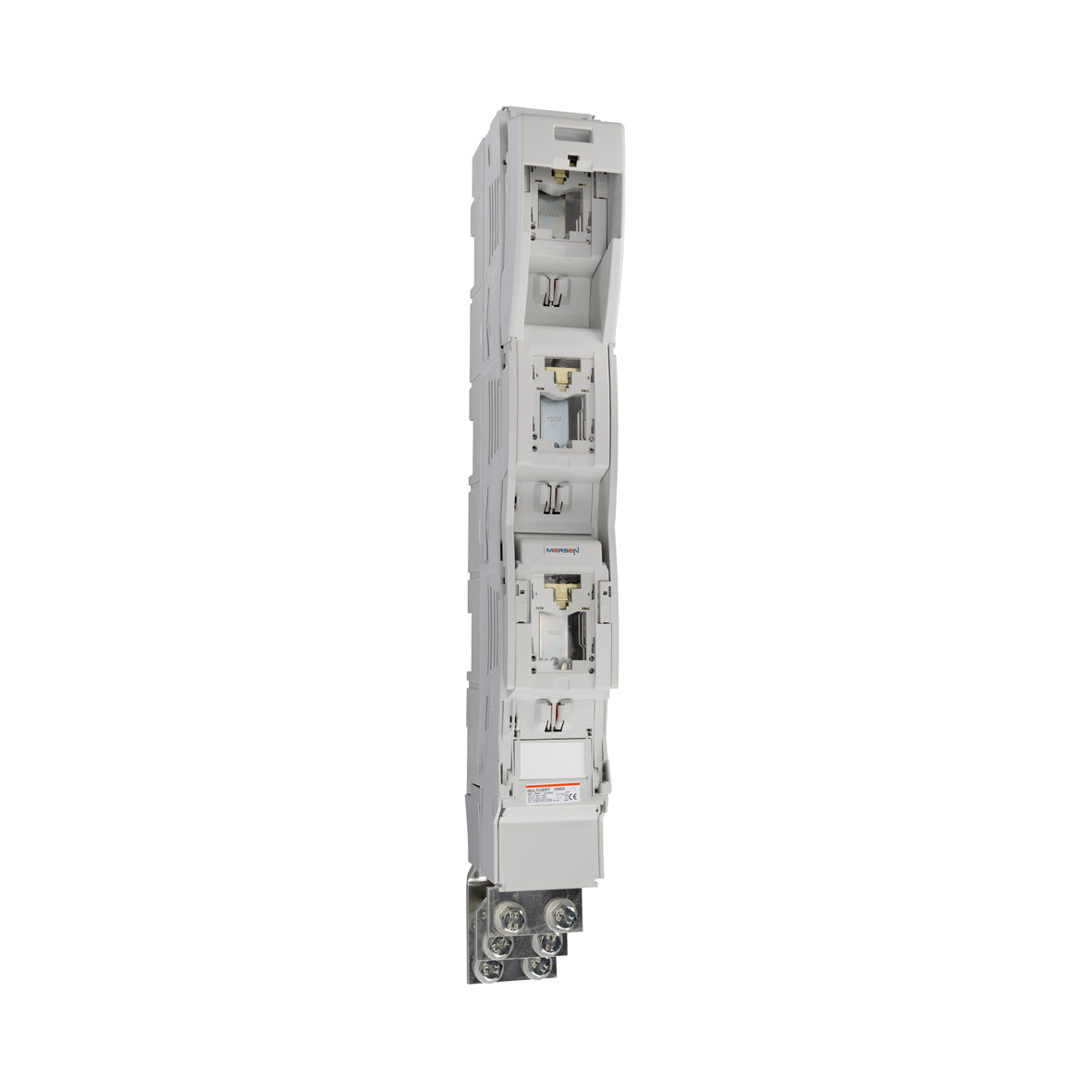

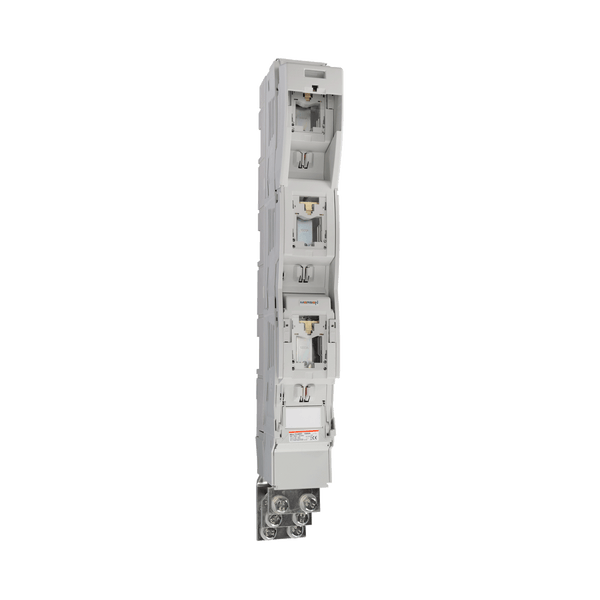

Mersen P1023122 1.762.900 NH fuse-switch disconnector MULTIVERT® Size 1000A 1x3-Pole switching Screw M12

Name: Mersen P1023122 1.762.900 NH fuse-switch disconnector MULTIVERT® Size 1000A 1x3-Pole switching Screw M12
Brand: Mersen
SKU: P1023122
Price: 1712.01 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Mersen

Reference No: P1023122

Catalog No: 1.762.900

Series: MULTIVERT® 1000A , Main Incomer, 690VAC

Tariff Code (HS): 85362090

Rated Current: 1000 A

Rated Voltage: 690 V

Stock: 0

Shipping Origin: Turkey EXW

$1,712.01

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Mersen 1.762.900 (P1023122) is a nH fuse-switch disconnector MULTIVERT® Size 1000A 1x3-Pole switching Screw M12 from the MULTIVERT® 1000A , Main Incomer, 690VAC range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No	1.762.900
Frequency (Hz)	50 ... 60 Hz
Rated voltage AC IEC	690 V
Ampere Rating	1000 A
Utilization Category	AC 21 B @ Ue = AC 400 V; Ie = 1000 A AC 20 B @ Ue = AC 690 V; Ie = 1000 A
Switchability	1x3-pole switching
ROHS Compliant	Yes
AC or DC	AC
Design Details	with ready fitted NHsolid links 1000 A
Number of Poles	3-Pole
Degree of Pollution	3
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	1000 V
Max Power dissipation of Solid Links Pn	12 W
Rated short circuit making capacity with solid links Icm	15 kA
Installation Mounting	Bus Bar Installation
Product group	IEC Fuse Switch Disconnectors
Conventional Free Air thermal Current - Solid Links	1000 A
Product Width	98 mm
Product Length	190 mm
Product Height	685 mm
Sell Pack Quantity	1 EA
Sell Pack Weight	11.8 kg
Sell Pack Width	230 mm
Sell Pack Length	781 mm
Sell Pack Height	125 mm
Product Weight	11.8 kg
EAN/UPC	9008567001318

Certifications & Compliance

CCC
CE
RoHS
UKCA
REACH

Technical Details

Short Description

NH fuse-switch disconnector MULTIVERT® Size 1000A 1x3-Pole switching Screw M12

Rated Current (Ampere)

1000 A

Rated Voltage (VAC)

690 V

Mounting Type

Bus Bar Installation

Catalog No

1.762.900

Standards

CCC, CE, RoHS, UKCA, REACH

Model Number

1.762.900

Tariff Code

85362090

Mersen P1023122 1.762.900 NH fuse-switch disconnector MULTIVERT® Size 1000A 1x3-Pole switching Screw M12
