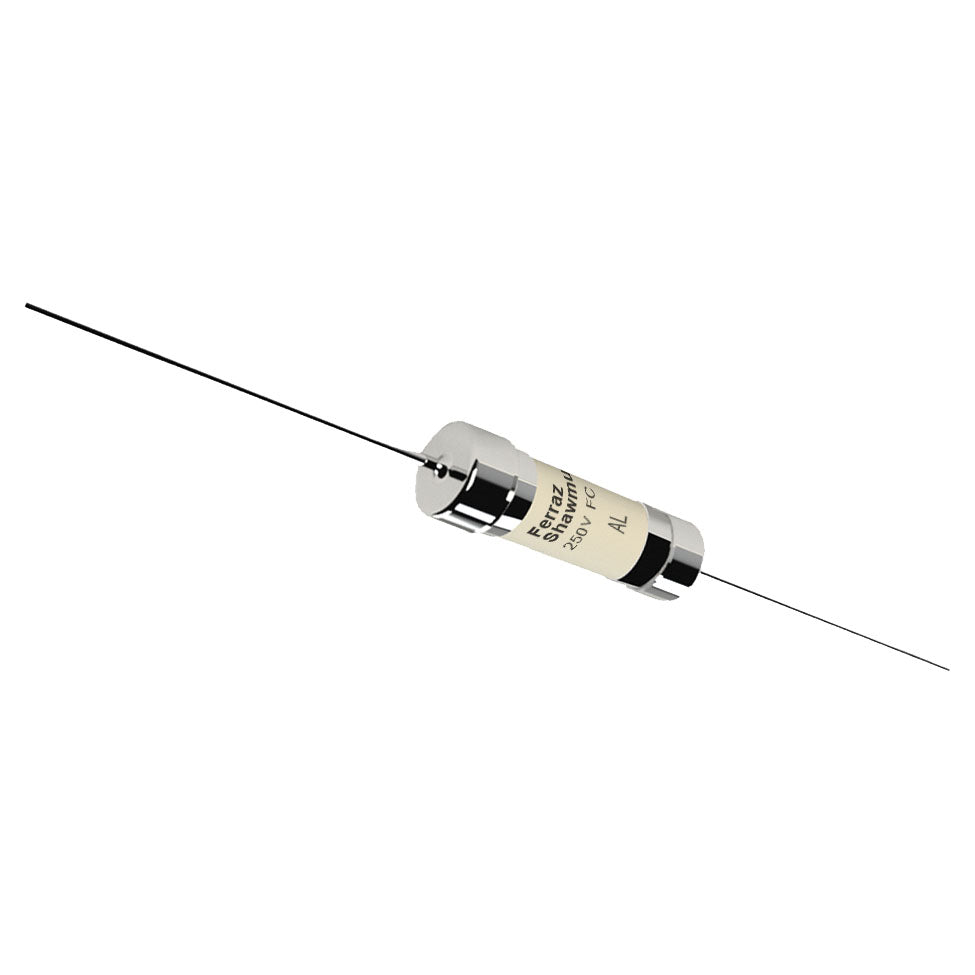

Mersen E206061 MI5FCP25V0.31 Miniature Fuses Size 5x20 250V 0.315A Fast (F) FC Axial Leads Mounting

% $-2.49

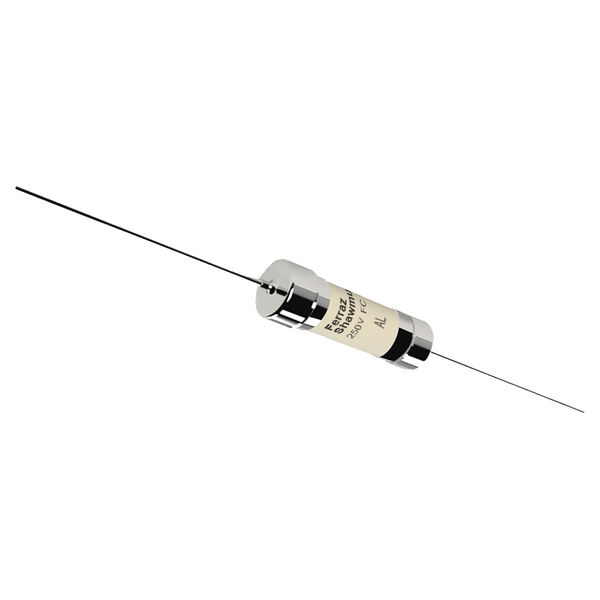

Mersen E206061 Miniature Fuse
Mersen E206061 Miniature Fuse
Mersen E206061 Miniature Fuse
Mersen E206061 Miniature Fuse

Mersen E206061 MI5FCP25V0.31 Miniature Fuses Size 5x20 250V 0.315A Fast (F) FC Axial Leads Mounting

Brand: Mersen
Reference No: E206061
Catalog No: MI5FCP25V0.31
Series: Semiconductor Miniature Fuses Size 5x20 FC 250V AL
Tariff Code (HS): 85361050
Rated Current: 0.315 A
Rated Voltage: 250 V
Stock: 0
Shipping Origin: Turkey EXW
$2.49

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Mersen MI5FCP25V0.31 (E206061) is a miniature Fuses Size 5x20 250V 0.315A Fast (F) FC Axial Leads Mounting from the Semiconductor Miniature Fuses Size 5x20 FC 250V AL range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No MI5FCP25V0.31
Rated voltage AC IEC 250 V
Ampere Rating 0.315 A
ROHS Compliant Yes
AC or DC AC
Speed/Characteristic Fast (F)
Fuse Size 5x20
Mounting Axial Leads
Clearing I2t At Rated Voltage 0.016 A²s
Melting I2t 0.0072 A²s
Min Interrupting Rating (MBC) 1.5 kA
Design Details FC
Connection/Terminal Type Soldered connection
Product group Miniature Fuses
Body/Insulating Material Ceramic
Product Diameter 5.5 mm
Product Length 76 mm
Product Height 5.5 mm
Sell Pack Quantity 2000 EA
Sell Pack Weight 3.15 kg
Sell Pack Width 380 mm
Sell Pack Length 370 mm
Sell Pack Height 100 mm
Product Weight 0.0015 kg
EAN/UPC 3605340191103

Certifications & Compliance

  • UL
  • CE
  • RoHS
  • UKCA
  • REACH

Technical Details

Short Description
Miniature Fuses Size 5x20 250V 0.315A Fast (F) FC Axial Leads Mounting
Rated Current (Ampere)
0.315 A
Rated Voltage (VAC)
250 V
Mounting Type
Axial Leads
Catalog No
MI5FCP25V0.31
Standards
UL, CE, RoHS, UKCA, REACH
Model Number
MI5FCP25V0.31
Tariff Code
85361050
