Mersen D1023273 Fuse Switch Disconnector

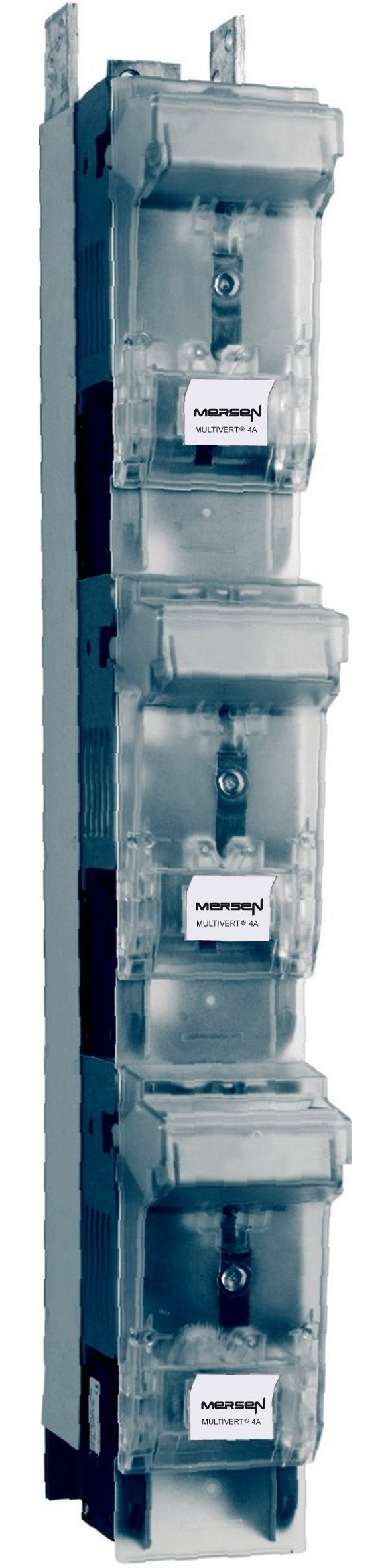

Mersen D1023273 1.000.096 NH fuse-switch disconnector MULTIVERT® Size 4a 1600A 3x1-Pole switching Screw top terminal M12

Name: Mersen D1023273 1.000.096 NH fuse-switch disconnector MULTIVERT® Size 4a 1600A 3x1-Pole switching Screw top terminal M12
Brand: Mersen
SKU: D1023273
Price: 3701.45 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Mersen

Reference No: D1023273

Catalog No: 1.000.096

Series: MULTIVERT® 1600A , Size 4a, 690VAC

Tariff Code (HS): 85362090

Rated Current: 1600 A

Rated Voltage: 690 V

Stock: 0

Shipping Origin: Turkey EXW

$3,701.45

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Mersen 1.000.096 (D1023273) is a nH fuse-switch disconnector MULTIVERT® Size 4a 1600A 3x1-Pole switching Screw top terminal M12 from the MULTIVERT® 1600A , Size 4a, 690VAC range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No	1.000.096
Frequency (Hz)	50 ... 60 Hz
Rated voltage AC IEC	690 V
Ampere Rating	1600 A
Utilization Category	AC 21 B @ Ue = AC 400 V; Ie = 1600 A
Switchability	3x1-pole switching
ROHS Compliant	Yes
AC or DC	AC
Short Circuit Current Rating (SCCR)	31,5kA@Ue = AC 400 V; Ie = 1600 A
Fuse Size	4a
Design Details	Screw top terminal
Number of Poles	3-Pole
Degree of Pollution	3
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	1000 V
Rated SC Withstand	32 kA / 1 s
Max Power dissipation of Fuse Links Pn	140 W
Max Power dissipation of Solid Links Pn	42 W
Power Dissipation by Ith without Fuse-Links	568 W
Rated short circuit making capacity with solid links Icm	68 kA
Installation Mounting	Bus Bar Installation
Product group	IEC Fuse Switch Disconnectors
Conventional Free Air thermal Current With Fuse-Links Ith	1600 A
Conventional Free Air thermal Current - Solid Links	1600 A
Product Width	126 mm
Product Length	254 mm
Product Height	991.1 mm
Sell Pack Quantity	1 EA
Sell Pack Weight	16.5 kg
Sell Pack Width	170 mm
Sell Pack Length	1100 mm
Sell Pack Height	280 mm
Product Weight	16.5 kg
EAN/UPC	9008567009673

Certifications & Compliance

CE
RoHS
UKCA
REACH

Technical Details

Short Description

NH fuse-switch disconnector MULTIVERT® Size 4a 1600A 3x1-Pole switching Screw top terminal M12

Rated Current (Ampere)

1600 A

Rated Voltage (VAC)

690 V

Mounting Type

Bus Bar Installation

Catalog No

1.000.096

Standards

CE, RoHS, UKCA, REACH

Model Number

1.000.096

Tariff Code

85362090
