Mersen C1028286 HP10NH1GPV100 Photovoltaic fuse gPV 1000VDC IEC 1000VDC UL Size NH1 100A With Plain Blades For Clip

% $-29.51

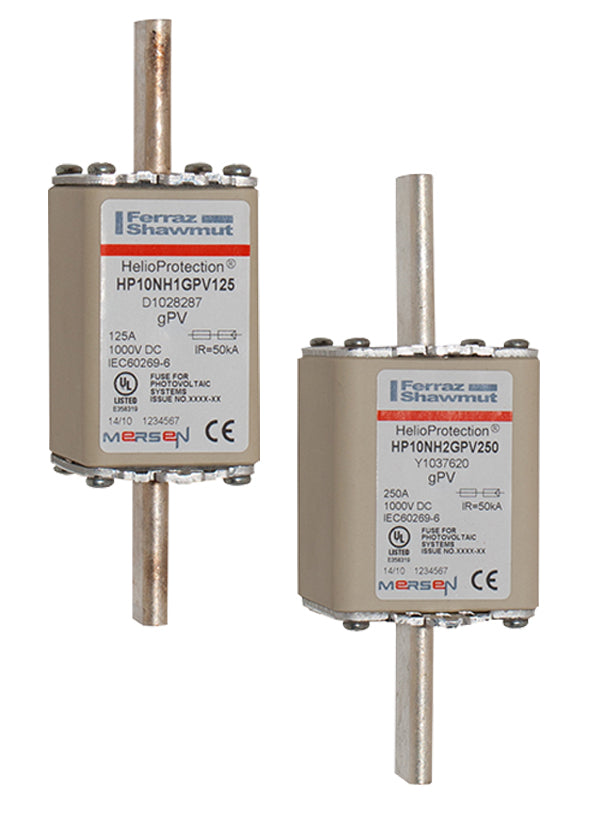

Mersen C1028286 Special Purpose Fuse
Mersen C1028286 Special Purpose Fuse

Mersen C1028286 HP10NH1GPV100 Photovoltaic fuse gPV 1000VDC IEC 1000VDC UL Size NH1 100A With Plain Blades For Clip

Brand: Mersen
Reference No: C1028286
Catalog No: HP10NH1GPV100
Series: HelioProtection® HP10NH, Photovoltaic fuse-links gPV 1000VDC
Tariff Code (HS): 85361090
Rated Current: 100 A
Rated Voltage: 1000 V
Stock: 0
Shipping Origin: Turkey EXW
$29.51

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Mersen HP10NH1GPV100 (C1028286) is a photovoltaic fuse gPV 1000VDC IEC 1000VDC UL Size NH1 100A With Plain Blades For Clip from the HelioProtection® HP10NH, Photovoltaic fuse-links gPV 1000VDC range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No HP10NH1GPV100
Rated voltage DC UL 1000 V
Frequency (Hz) 50-60 Hz
Rated voltage DC IEC 1000 V
Ampere Rating 100 A
ROHS Compliant Yes
AC or DC DC
Speed/Characteristic gPV
Fuse Size NH1
Mounting Clip
Max. Rated Breaking Capacity DC 50 kA @ 1000 V, L/R = 1 ms
Connection/Terminal Material Silver-Plated Copper
Connection/Terminal Type Plain Blades
Product group Special Purpose Fuses
Power Dissipation at Intermediate Current Value 7.2 W @ 0.7 In W
Power Dissipation at Rated Current Value 17 W
Product Width 39.5 mm
Product Length 135 mm
Product Height 64.5 mm
Sell Pack Quantity 3 EA
Sell Pack Weight 0.9 kg
Sell Pack Width 135 mm
Sell Pack Length 150 mm
Sell Pack Height 70 mm
Product Weight 0.3 kg
EAN/UPC 3605340532326

Certifications & Compliance

  • UL
  • CE
  • RoHS
  • UKCA

Technical Details

Short Description
Photovoltaic fuse gPV 1000VDC IEC 1000VDC UL Size NH1 100A With Plain Blades For Clip
Rated Current (Ampere)
100 A
Rated Voltage (VAC)
1000 V
Mounting Type
Clip
Catalog No
HP10NH1GPV100
Standards
UL, CE, RoHS, UKCA
Model Number
HP10NH1GPV100
Tariff Code
85361090
