Mersen B1068650 15NH3LGBAT250 Fuse-link gBAT 1500VDC Size 3L 250A With Plain Blades For Clip

% $-161.64

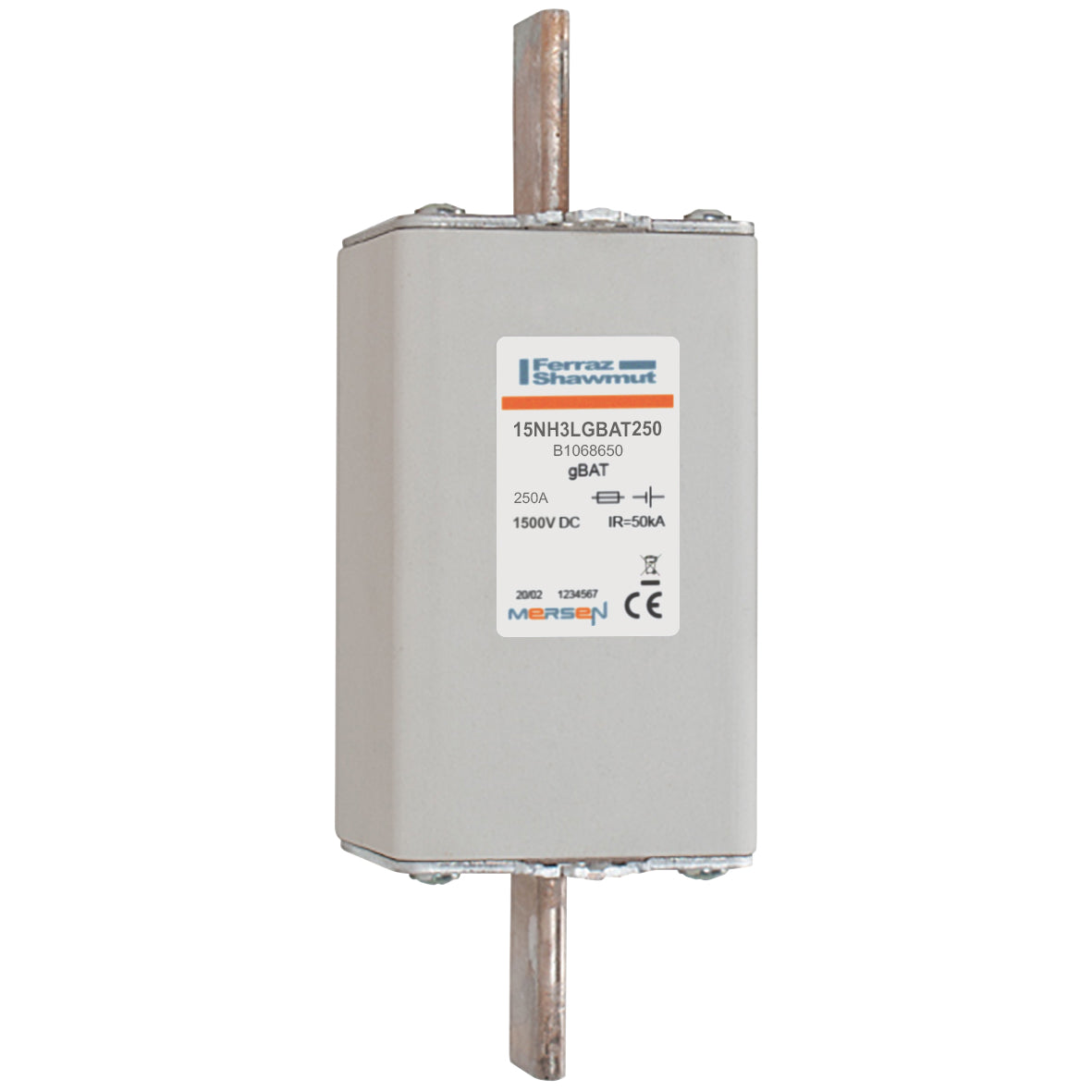

Mersen B1068650 EV / Battery Protection Fuse
Mersen B1068650 EV / Battery Protection Fuse

Mersen B1068650 15NH3LGBAT250 Fuse-link gBAT 1500VDC Size 3L 250A With Plain Blades For Clip

Brand: Mersen
Reference No: B1068650
Catalog No: 15NH3LGBAT250
Series: NH Fuse-links gBat 1000V-1500V DC
Tariff Code (HS): 85361090
Rated Current: 250 A
Rated Voltage: 1500 V
Stock: 0
Shipping Origin: Turkey EXW
$161.64

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Mersen 15NH3LGBAT250 (B1068650) is a fuse-link gBAT 1500VDC Size 3L 250A With Plain Blades For Clip from the NH Fuse-links gBat 1000V-1500V DC range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No 15NH3LGBAT250
Rated voltage DC IEC 1500 V
Ampere Rating 250 A
ROHS Compliant Yes
AC or DC DC
Speed/Characteristic gBAT
Fuse Size 3L
Mounting Clip
Max. Rated Breaking Capacity DC 150 kA @ 1500 V, L/R = 3 ms
Connection/Terminal Material Silver-Plated Copper
Connection/Terminal Type Plain Blades
Product group EV and Battery Protection Fuses
Power Dissipation at Intermediate Current Value 20 W @ 0.7 In W
Power Dissipation at Rated Current Value 50 W
Product Width 70 mm
Product Length 205 mm
Product Height 84.5 mm
Sell Pack Quantity 1 EA
Sell Pack Weight 1.69 kg
Sell Pack Width 115 mm
Sell Pack Length 230 mm
Sell Pack Height 110 mm
Product Weight 1.69 kg
EAN/UPC 3605340612172

Certifications & Compliance

  • UL
  • CE
  • RoHS
  • UKCA
  • REACH

Technical Details

Short Description
Fuse-link gBAT 1500VDC Size 3L 250A With Plain Blades For Clip
Rated Current (Ampere)
250 A
Rated Voltage (VAC)
1500 V
Mounting Type
Clip
Catalog No
15NH3LGBAT250
Standards
UL, CE, RoHS, UKCA, REACH
Model Number
15NH3LGBAT250
Tariff Code
85361090
