Mersen A1210628 8.032.000 NH Fuse switch disconnector MULTIBLOC® Size 00 80A 3-pole switching Bottom Fitting/panel Clamp Strap / Screw M8

% $-125.17

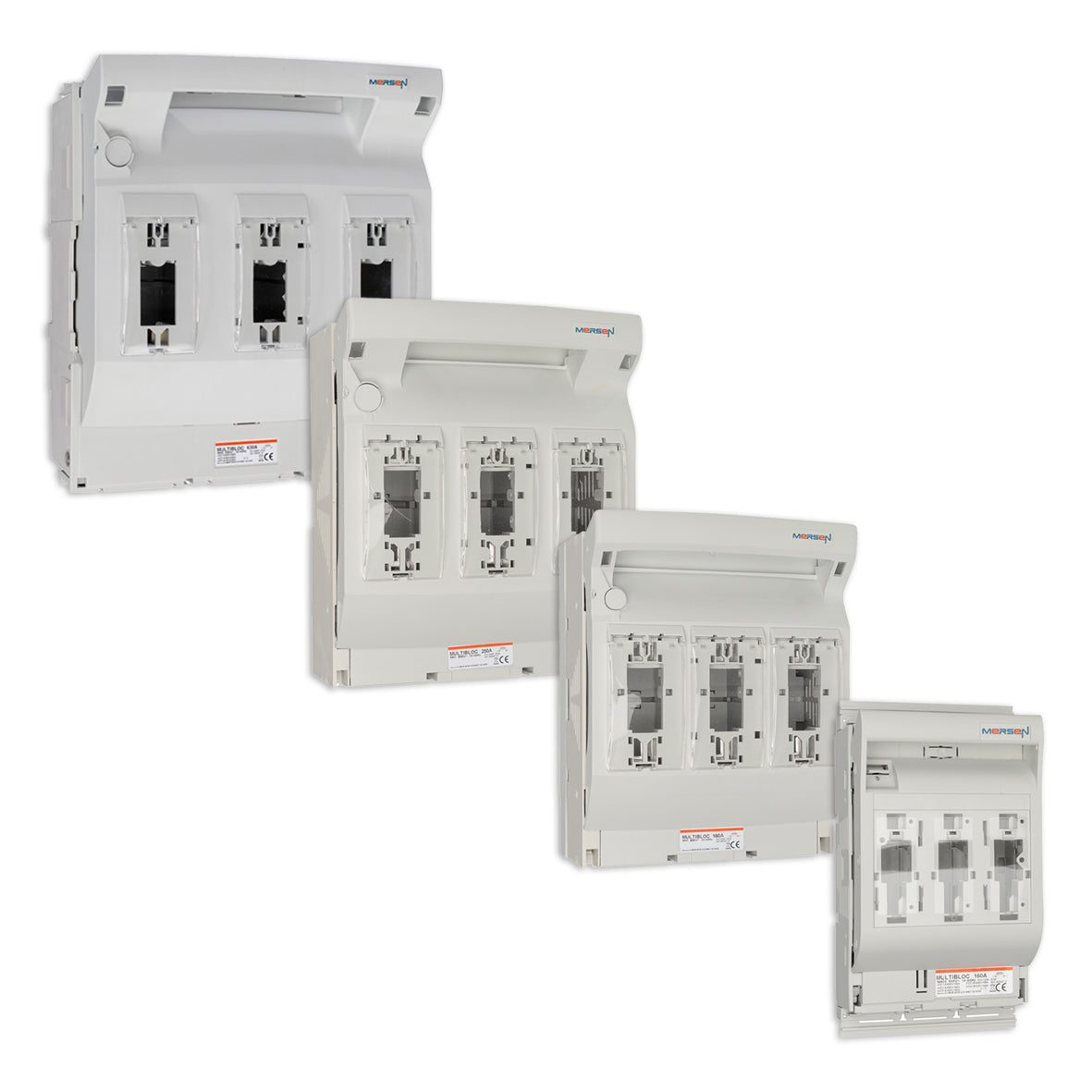

Mersen A1210628 Fuse Switch Disconnector
Mersen A1210628 Fuse Switch Disconnector

Mersen A1210628 8.032.000 NH Fuse switch disconnector MULTIBLOC® Size 00 80A 3-pole switching Bottom Fitting/panel Clamp Strap / Screw M8

Brand: Mersen
Reference No: A1210628
Catalog No: 8.032.000
Series: MULTIBLOC® 800VAC, Design for Bottom Fitting 3-pole Size 00, 1, 2 and 3
Tariff Code (HS): 85362090
Rated Current: 80 A
Rated Voltage: 800 V
Stock: 0
Shipping Origin: Turkey EXW
$125.17

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Mersen 8.032.000 (A1210628) is a nH Fuse switch disconnector MULTIBLOC® Size 00 80A 3-pole switching Bottom Fitting/panel Clamp Strap / Screw M8 from the MULTIBLOC® 800VAC, Design for Bottom Fitting 3-pole Size 00, 1, 2 and 3 range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No 8.032.000
Frequency (Hz) 50 ... 60 Hz
Rated voltage AC IEC 800 V
Ampere Rating 80 A
Utilization Category AC 23 B @ Ue = AC 400 V; Ie = 80 A AC 22 B @ Ue = AC 500 V; Ie = 80 A AC 21 B @ Ue = AC 690 V; Ie = 80 A DC 22 B @ Ue = DC 220 V; Ie = 80 A DC 21 B @ Ue = DC 440 V; Ie = 80 A AC 21 B @ Ue = AC 800V; Ie = 80 A
Switchability 3-pole switching
ROHS Compliant Yes
AC or DC AC
Short Circuit Current Rating (SCCR) Ue=AC 800V; le=80 A 10kA / Ue=AC 800 V; Ie=160 A 10kA / Ue=AC 800 V; Ie=250 A 10kA / Ue=AC 800V; le=315 A 10kA
Fuse Size 00
Number of Poles 3-Pole
Degree of Pollution 3
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Rated SC Withstand 4 kA / 1 s
Max Power dissipation of Fuse Links Pn 12 W
Max Power dissipation of Solid Links Pn 1.2 W
Power Dissipation by Ith without Fuse-Links 3 W
Power Dissipation by Ith without Solid Links 17 W
Rated short circuit making capacity with solid links Icm 6.2 kA
Installation Mounting Bottom Fitting/panel
Product group IEC Fuse Switch Disconnectors
Conventional Free Air thermal Current With Fuse-Links Ith 80 A
Product Width 108 mm
Product Length 81 mm
Product Height 202 mm
Sell Pack Quantity 1 EA
Sell Pack Weight 0.85 kg
Sell Pack Width 111 mm
Sell Pack Length 205 mm
Sell Pack Height 84 mm
Product Weight 0.85 kg
EAN/UPC 3605340711189

Certifications & Compliance

  • CE
  • RoHS
  • UKCA
  • REACH

Technical Details

Short Description
NH Fuse switch disconnector MULTIBLOC® Size 00 80A 3-pole switching Bottom Fitting/panel Clamp Strap / Screw M8
Rated Current (Ampere)
80 A
Rated Voltage (VAC)
800 V
Mounting Type
Bottom Fitting/panel
Catalog No
8.032.000
Standards
CE, RoHS, UKCA, REACH
Model Number
8.032.000
Tariff Code
85362090
