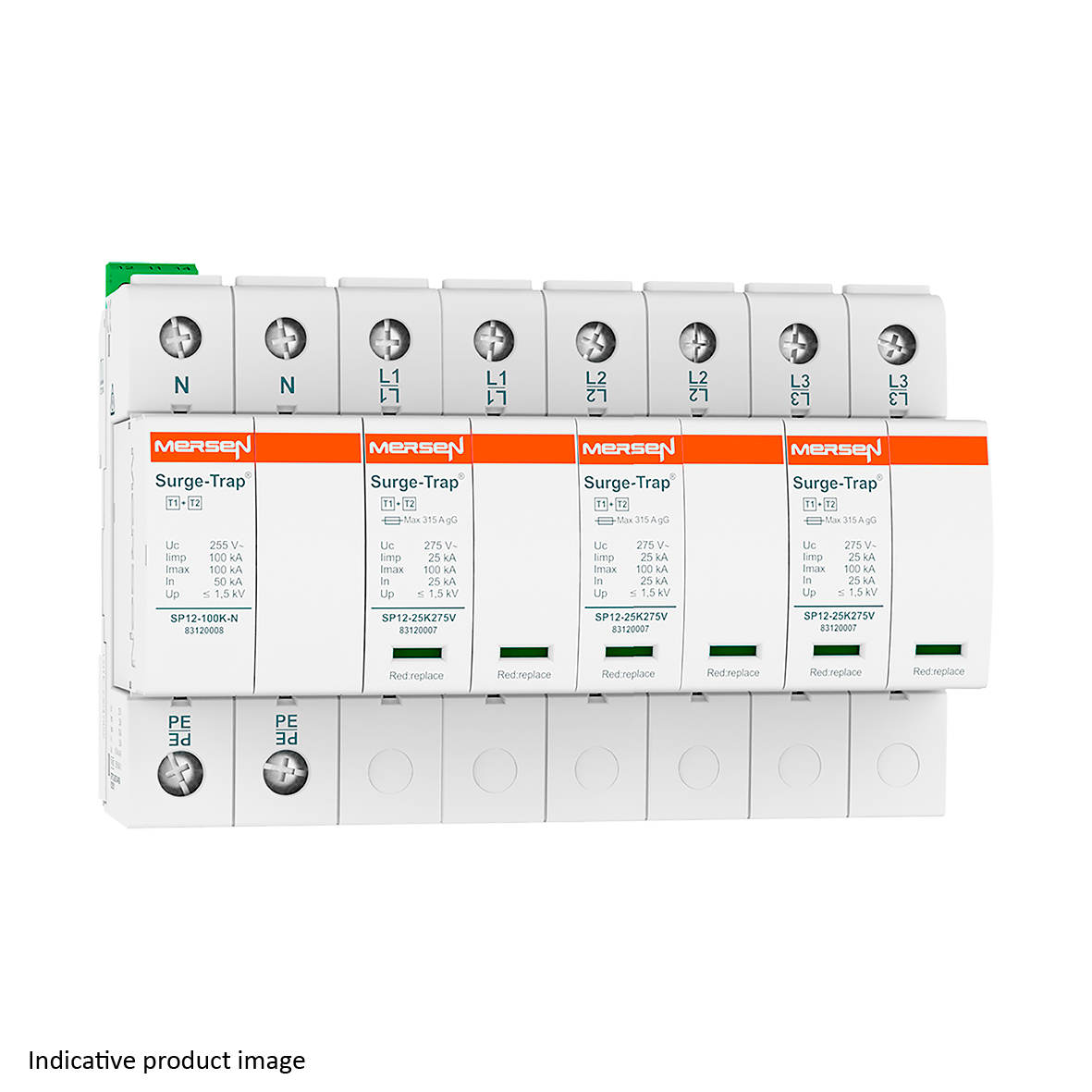

Mersen 83120150 STPT12-25K275V-4PG Surge Protection Device Type 1+2, 25kA Iimp (10/350), 3Ph+N, 230/400V, 3+1 TT, 4 Poles, Pluggable, 8 Modules

Name: Mersen 83120150 STPT12-25K275V-4PG Surge Protection Device Type 1+2, 25kA Iimp (10/350), 3Ph+N, 230/400V, 3+1 TT, 4 Poles, Pluggable, 8 Modules
Brand: Mersen
SKU: 83120150
Price: 644.12 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Mersen

Reference No: 83120150

Catalog No: STPT12-25K275V-4PG

Series: Surge-Trap® Pluggable STPT12 Series - 25kA

Tariff Code (HS): 85363030

Stock: 0

Shipping Origin: Turkey EXW

$644.12

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Mersen STPT12-25K275V-4PG (83120150) is a surge Protection Device Type 1+2, 25kA Iimp (10/350), 3Ph+N, 230/400V, 3+1 TT, 4 Poles, Pluggable, 8 Modules from the Surge-Trap® Pluggable STPT12 Series - 25kA range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No	STPT12-25K275V-4PG
ROHS Compliant	Yes
IEC SPD Type	Class I+II
Format	Pluggable
Nominal Operating Volt Rating (Un)	230/400
AC or DC	AC
Max Discharge Current : Imax (8/20)	100 kA
Protection Modes	L-N / N-PE
System Configuration	TT, TNS
Lightning Impulse Current (10/350) (LIMP)	25 kA
Following Current (Ifi)	100 A
Short Circuit Withstand (ISCCR)	25 kA
Indication System	Yes
Indication System Type	Green (OK) / Not green (replace)
Number of Poles	4-Pole
Torque Rating	3 N m
Max. Back-Up Fuse	315 A [gG]
Housing Material	PA66 CT1
Installation Mounting	DIN Rail
Uc (L-N)	275 V
Uc (N-PE)	255 V
Up at In (N-PE)	≤1,5 kV
Up at In (L-N)	≤1,5 kV
Replacement Plug N-PE	83120009
Replacement Plug L-N	83120007
Product group	Power Line SPDs
Product Width	144 mm
Product Length	76 mm
Product Height	90 mm
Sell Pack Quantity	1 EA
Sell Pack Weight	1.35 kg
Sell Pack Width	136 mm
Sell Pack Length	145 mm
Sell Pack Height	86 mm
Product Weight	1.26 kg
EAN/UPC	8435297857365

Certifications & Compliance

CE
RoHS
REACH

Technical Details

Short Description

Surge Protection Device Type 1+2, 25kA Iimp (10/350), 3Ph+N, 230/400V, 3+1 TT, 4 Poles, Pluggable, 8 Modules

Mounting Type

DIN Rail

Catalog No

STPT12-25K275V-4PG

Standards

CE, RoHS, REACH

Model Number

STPT12-25K275V-4PG

Tariff Code

85363030
