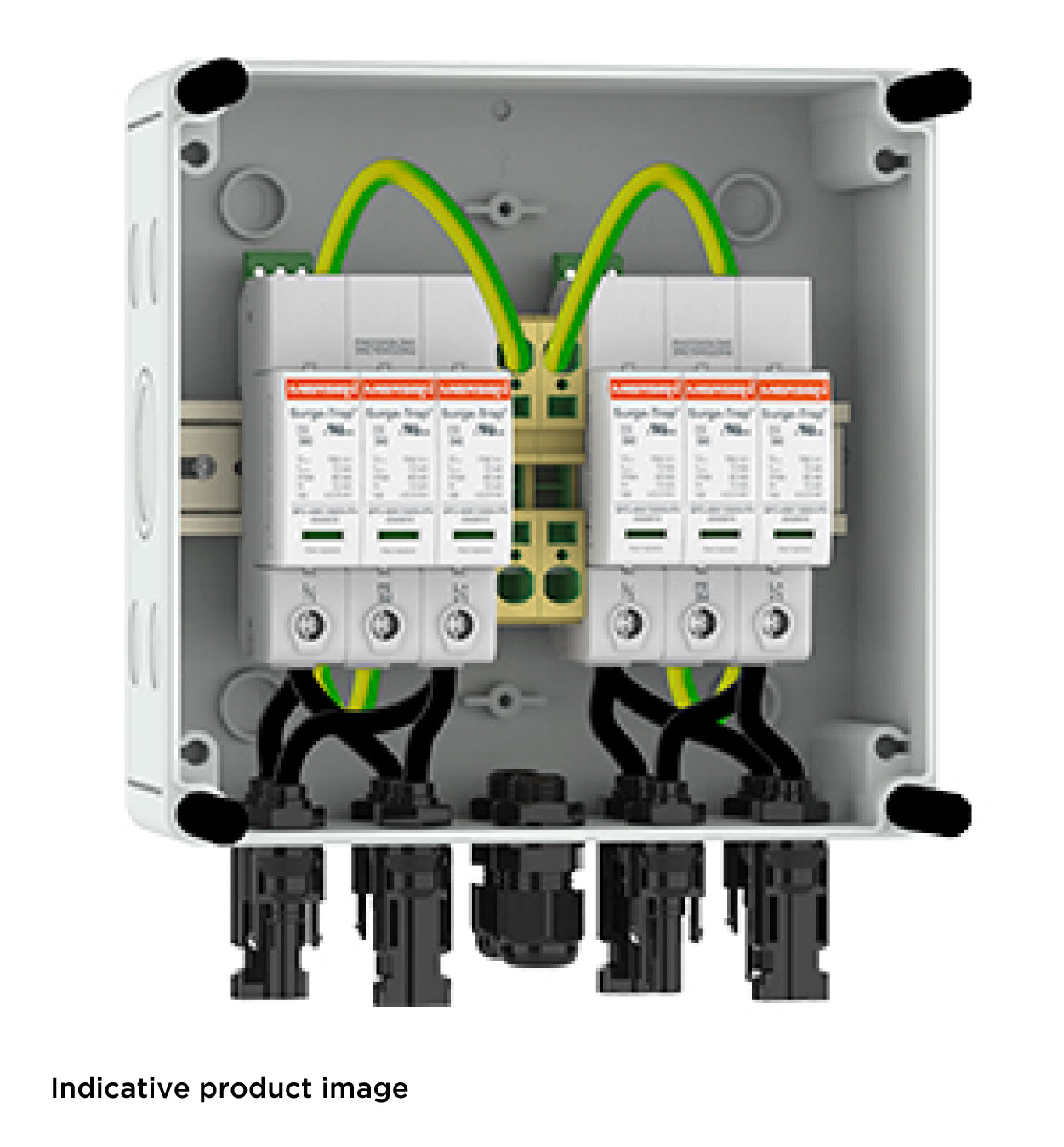

Mersen 83070106 PVBT12-1000V-BH-213 PV string box 2 MPPTs with Type 1+2 SPDs 1000V (without remote indication) and MC4 connectors.
% $-724.84
Mersen 83070106 PVBT12-1000V-BH-213 PV string box 2 MPPTs with Type 1+2 SPDs 1000V (without remote indication) and MC4 connectors.
Brand:
Mersen
Reference No:
83070106
Catalog No:
PVBT12-1000V-BH-213
Series:
PV string boxes T1+2
Tariff Code (HS):
85363030
Get Quote
Stock:
0
Shipping Origin:
Turkey EXW
$724.84
- Description
The Mersen PVBT12-1000V-BH-213 (83070106) is a pV string box 2 MPPTs with Type 1+2 SPDs 1000V (without remote indication) and MC4 connectors. from the PV string boxes T1+2 range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.
Technical Specifications
| Catalogue No | PVBT12-1000V-BH-213 |
| ROHS Compliant | Yes |
| IEC SPD Type | Class I+II |
| Nominal Operating Volt Rating (Un) | 1000 |
| AC or DC | DC |
| Max Discharge Current : Imax (8/20) | 40 kA |
| Protection Modes | L+/PE, L-/PE, L+/L- |
| System Configuration | YPV |
| Lightning Impulse Current (10/350) (LIMP) | 5 kA |
| Indication System | Yes |
| Indication System Type | Green (OK) / Not green (replace) |
| Housing Material | Polycarbonate |
| Installation Mounting | Panel or Wall Mount |
| Up at In (L-PE) | ≤4 kV |
| Replacement Plug L1 | 83120011 |
| Product group | Photovoltaic & Energy Storage SPDs |
| Product Width | 260 mm |
| Product Length | 240 mm |
| Product Height | 220 mm |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 2.17 kg |
| Sell Pack Width | 240 mm |
| Sell Pack Length | 260 mm |
| Sell Pack Height | 220 mm |
| Product Weight | 1.814 kg |
| EAN/UPC | 8435297875321 |
Certifications & Compliance
- CE
- RoHS
- REACH
Technical Details
Short Description
PV string box 2 MPPTs with Type 1+2 SPDs 1000V (without remote indication) and MC4 connectors.
Mounting Type
Panel or Wall Mount
Catalog No
PVBT12-1000V-BH-213
Standards
CE, RoHS, REACH
Model Number
PVBT12-1000V-BH-213
Tariff Code
85363030
