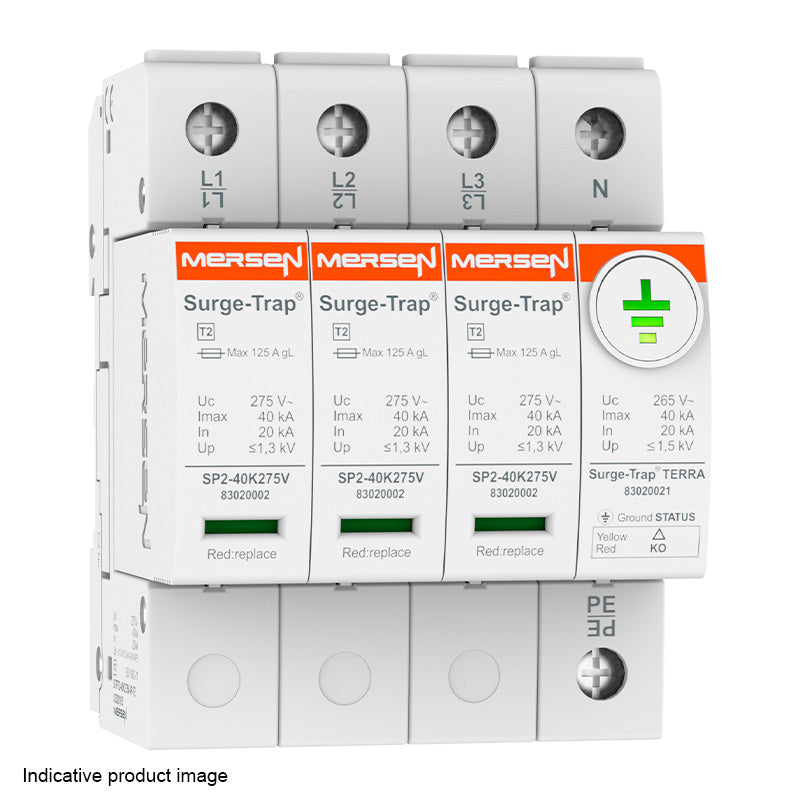

Mersen 83020185 STPT2-40K275V-4P-TE Surge Protection Device, Type 2, 4 poles, Three Phase, 40kA(8/20), 230/400V, with TERRA technology for grounding status indication.

Name: Mersen 83020185 STPT2-40K275V-4P-TE Surge Protection Device, Type 2, 4 poles, Three Phase, 40kA(8/20), 230/400V, with TERRA technology for grounding status indication.
Brand: Mersen
SKU: 83020185
Price: 242.34 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Mersen

Reference No: 83020185

Catalog No: STPT2-40K275V-4P-TE

Series: Surge-Trap® Pluggable - STPT2 TERRA Series

Tariff Code (HS): 85363030

Stock: 0

Shipping Origin: Turkey EXW

$242.34

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Mersen STPT2-40K275V-4P-TE (83020185) is a surge Protection Device, Type 2, 4 poles, Three Phase, 40kA(8/20), 230/400V, with TERRA technology for grounding status indication. from the Surge-Trap® Pluggable - STPT2 TERRA Series range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No	STPT2-40K275V-4P-TE
ROHS Compliant	Yes
IEC SPD Type	Class II
Format	Pluggable
Nominal Operating Volt Rating (Un)	230/400
AC or DC	AC
Max Discharge Current : Imax (8/20)	40 kA
Protection Modes	L-N / N-PE
System Configuration	TT, TNS
Following Current (Ifi)	100 A
Short Circuit Withstand (ISCCR)	25 kA
Indication System Type	Green (OK) / Not green (replace) LED
Number of Poles	4-Pole
Torque Rating	3 N m
Max. Back-Up Fuse	125 A [gG]
Housing Material	PA66 CT1
Installation Mounting	DIN Rail
Uc (L-N)	275 V
Uc (N-PE)	265 V
Up at In (N-PE)	≤1,5 kV
Up at In (L-N)	≤1,3 kV
Replacement Plug L1	83020002
Product group	Power Line SPDs with Grounding Monitor
Product Width	72 mm
Product Length	70 mm
Product Height	90 mm
Sell Pack Quantity	1 EA
Sell Pack Weight	0.431 kg
Sell Pack Width	78 mm
Sell Pack Length	117 mm
Sell Pack Height	90 mm
Product Weight	0.387 kg
EAN/UPC	8435297874966

Certifications & Compliance

REACH
CE
RoHS

Technical Details

Short Description

Surge Protection Device, Type 2, 4 poles, Three Phase, 40kA(8/20), 230/400V, with TERRA technology for grounding status indication.

Mounting Type

DIN Rail

Catalog No

STPT2-40K275V-4P-TE

Standards

REACH, CE, RoHS

Model Number

STPT2-40K275V-4P-TE

Tariff Code

85363030
