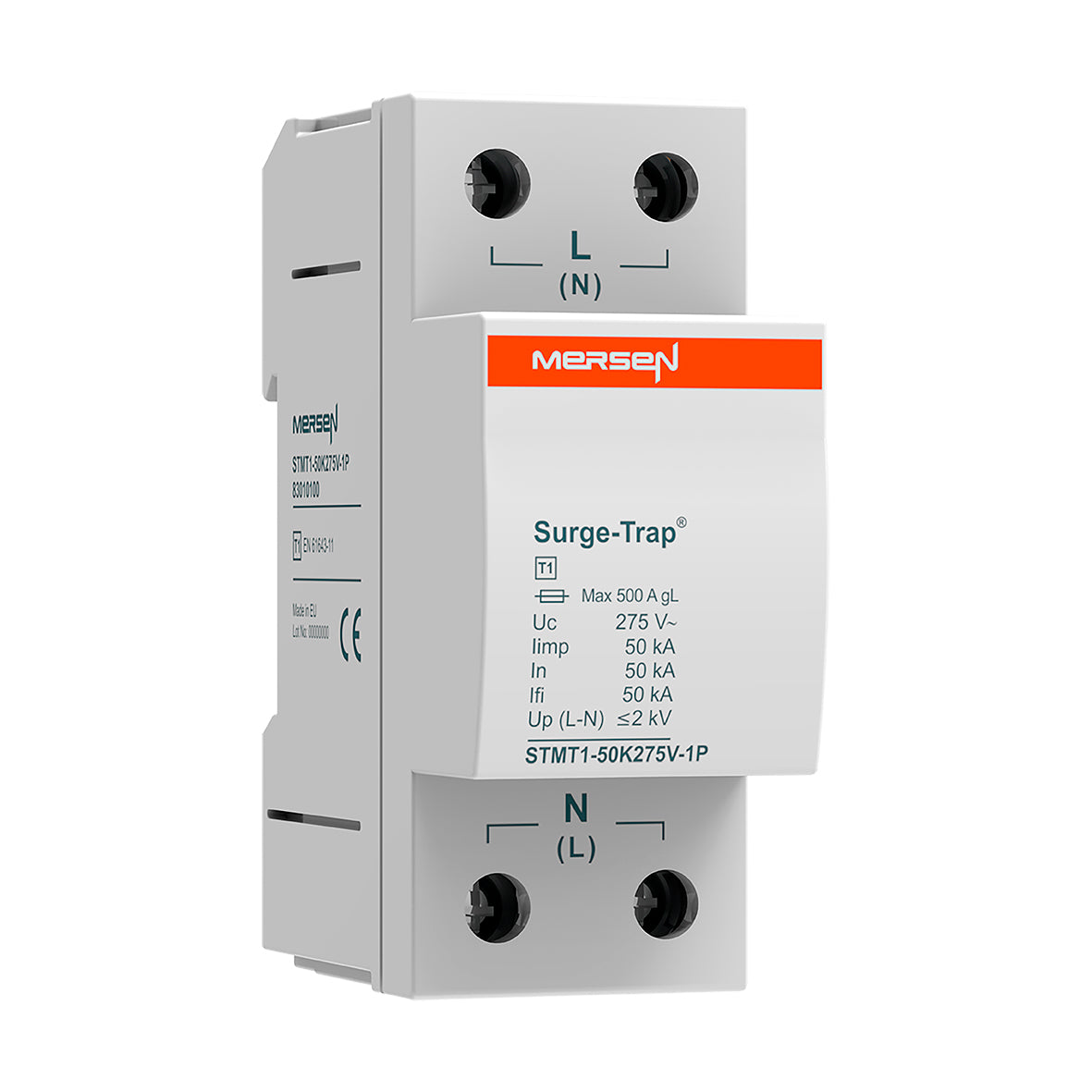

Mersen 83010100 STMT1-50K275V-1P Surge Protection Device Type 1, 50kA Iimp (10/350), 1Ph, 230V, L-N, 1 Pole, Monobloc, 2 Modules

Name: Mersen 83010100 STMT1-50K275V-1P Surge Protection Device Type 1, 50kA Iimp (10/350), 1Ph, 230V, L-N, 1 Pole, Monobloc, 2 Modules
Brand: Mersen
SKU: 83010100
Price: 235.19 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Mersen

Reference No: 83010100

Catalog No: STMT1-50K275V-1P

Series: Surge-Trap® Monobloc STMT1 Series - 50kA

Tariff Code (HS): 85363030

Stock: 0

Shipping Origin: Turkey EXW

$235.19

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Mersen STMT1-50K275V-1P (83010100) is a surge Protection Device Type 1, 50kA Iimp (10/350), 1Ph, 230V, L-N, 1 Pole, Monobloc, 2 Modules from the Surge-Trap® Monobloc STMT1 Series - 50kA range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No	STMT1-50K275V-1P
ROHS Compliant	Yes
IEC SPD Type	Class I
Format	Monobloc
Nominal Operating Volt Rating (Un)	230
AC or DC	AC
Protection Modes	L - N / L-PE / N-PE
System Configuration	TNS, TNC, TT (nur L-N)
Lightning Impulse Current (10/350) (LIMP)	50 kA
Following Current (Ifi)	50 kA
Short Circuit Withstand (ISCCR)	50 kA
Number of Poles	1-Pole
Torque Rating	3 N m
MOV Response Time	≤100
Installation Mounting	DIN Rail
Product group	Power Line SPDs
Product Width	36 mm
Product Length	70 mm
Product Height	90 mm
Sell Pack Quantity	1 EA
Sell Pack Weight	0.285 kg
Sell Pack Width	42 mm
Sell Pack Length	117 mm
Sell Pack Height	90 mm
Product Weight	0.254 kg
EAN/UPC	8435297849070

Certifications & Compliance

CE
RoHS
REACH

Technical Details

Short Description

Surge Protection Device Type 1, 50kA Iimp (10/350), 1Ph, 230V, L-N, 1 Pole, Monobloc, 2 Modules

Mounting Type

DIN Rail

Catalog No

STMT1-50K275V-1P

Standards

CE, RoHS, REACH

Model Number

STMT1-50K275V-1P

Tariff Code

85363030
