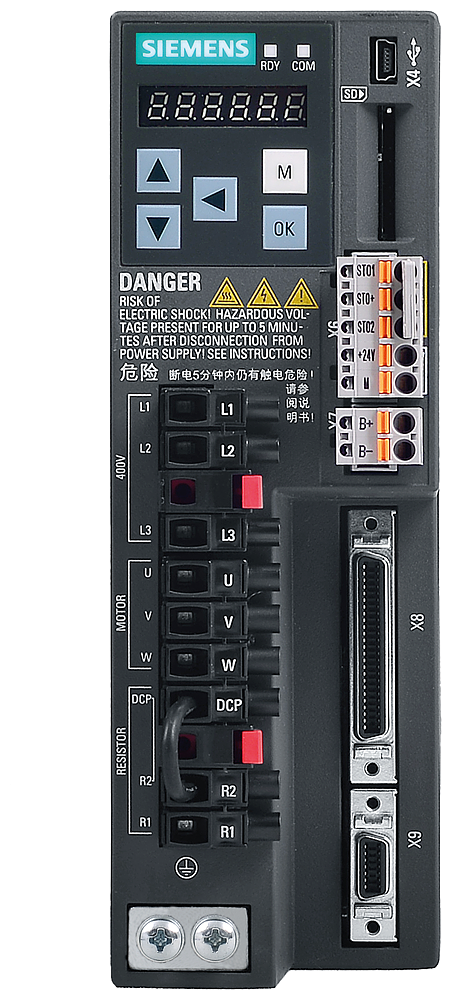

Siemens SINAMICS V90 6SL3210-5FE10-4UA0 400V 0.4kW servo drive

Siemens 6SL3210-5FE10-4UA0 SINAMICS V90 400V 0.4kW 1.2A Servo Drive

Name: Siemens 6SL3210-5FE10-4UA0 SINAMICS V90 400V 0.4kW 1.2A Servo Drive
Brand: Siemens
SKU: 6SL3210-5FE10-4UA0
Price: 590.95 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 6SL3210-5FE10-4UA0

Catalog No: 6SL3210-5FE10-4UA0

Series: SINAMICS V90

Tariff Code (HS): 85044087

Rated Current: 1.20 A (3.60 A max)

Power: 0.4 kW

Rated Voltage: 380-480 V AC

Stock: 34

Delivery time: 1-2 business day(s)

Shipping Origin: Türkiye EXW

$590.95

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Siemens SINAMICS V90 (6SL3210-5FE10-4UA0) is a frame-AA servo drive for a 0.4 kW motor, powered by a 380-480 V three-phase AC supply. Rated output current is 1.20 A with a 3.60 A maximum, and the drive is rated IP20/UL open type in a 60 x 180 x 200 mm (W x H x D) enclosure.

Technical Specifications

SKU	6SL3210-5FE10-4UA0
Brand	Siemens
Series	SINAMICS V90
Number of phases	3 AC
Line voltage	380-480 V (+10%/-15%)
Line frequency	45-66 Hz
Rated power	0.40 kW
Rated current (output)	1.20 A
Max. output current	3.60 A
Degree of protection	IP20 / UL open type
Net weight	1.85 kg
Dimensions (W x H x D)	60 x 180 x 200 mm
Installation altitude, max.	1,000 m
Ambient temperature, operation	0 C to 45 C
Ambient temperature, storage	-40 C to 70 C
Max. relative humidity, operation	90%

Selection Notes

At 380-480 V three-phase input, this variant runs on standard industrial mains without a step-down transformer, unlike lower-voltage V90 models built for machines on 200-240 V supplies. The 3.60 A maximum output current gives roughly 3x headroom over the 1.20 A continuous rating, which covers short acceleration peaks on a 0.4 kW motor without oversizing the drive.

Applications

Suited to single-axis servo positioning on 400 V machines - conveyors, indexing axes, and small pick-and-place stations - where the drive is commanded by pulse/direction or analog reference.

Technical Details

Short Description

SINAMICS V90 servo drive, 380-480V 3AC, 0.4kW, 1.2A output (3.6A max), IP20.

Rated Current (Ampere)

1.20 A (3.60 A max)

Rated Voltage (VAC)

380-480 V AC

Protection Type

IP20 / UL open type

Catalog No

6SL3210-5FE10-4UA0

Power (kW)

0.4 kW

Delivery Date (Days)

1-2 days

Model Number

6SL3210-5FE10-4UA0

Tariff Code

85044087
