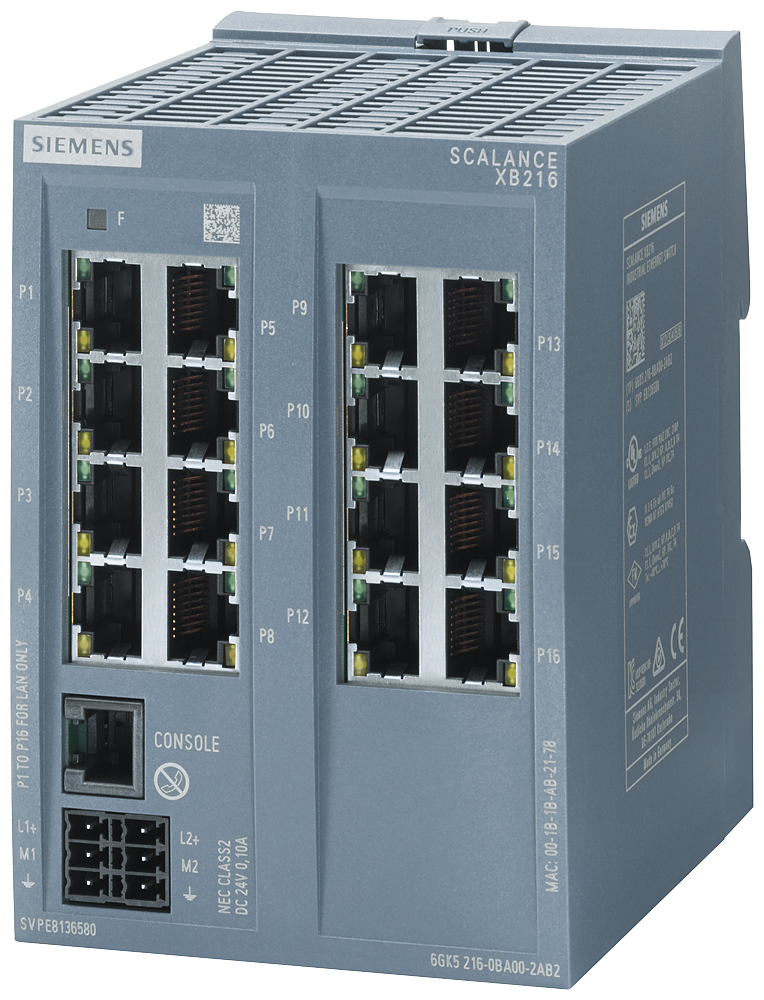

Siemens 6GK5216-0BA00-2AB2 SCALANCE XB216 16-Port 10/100 Mbit/s Managed Industrial Ethernet Switch

The Siemens SCALANCE XB216 (6GK5216-0BA00-2AB2) is a managed Layer 2 Industrial Ethernet switch with 16x 10/100 Mbit/s RJ45 ports, IEC 62443-4-2 security certification, and PROFINET conformity class B diagnostics. It supports MRP and HRP ring redundancy with up to 257 VLANs, runs from a redundant 24 V DC supply, and is rated for 0 to +60C operation with IP20 protection.

Technical Specifications

Certifications & Standards

• CE
• cULus
• KC
• RCM
• ATEX
• UKEX
• IECEx
• ULhazloc
• CCC
• FM registration
• IEC 62443-4-2

Selection Notes

IEC 62443-4-2 certification and full management - CLI, web-based configuration, SNMPv3, RADIUS/802.1x - separate the XB216 from the unmanaged XC-series switches, so choose it wherever the segment needs port-based VLANs, RSTP/MRP ring redundancy, or SNMP-based network monitoring. PROFINET conformity class B with network load class III diagnostic reporting integrates the switch as a manageable network component in TIA Portal projects rather than a passive Ethernet distributor. Its 0 to +60C operating range is narrower than the compact XC-series' -40 to +70C, so an XC or XM unit fits unheated cabinets or outdoor enclosures better.

Applications

Suited to control-network backbones needing managed redundancy and diagnostics - machine-to-machine PROFINET segments in ring topology, and cabinets where SNMP-based monitoring and VLAN segmentation are part of the network design.
