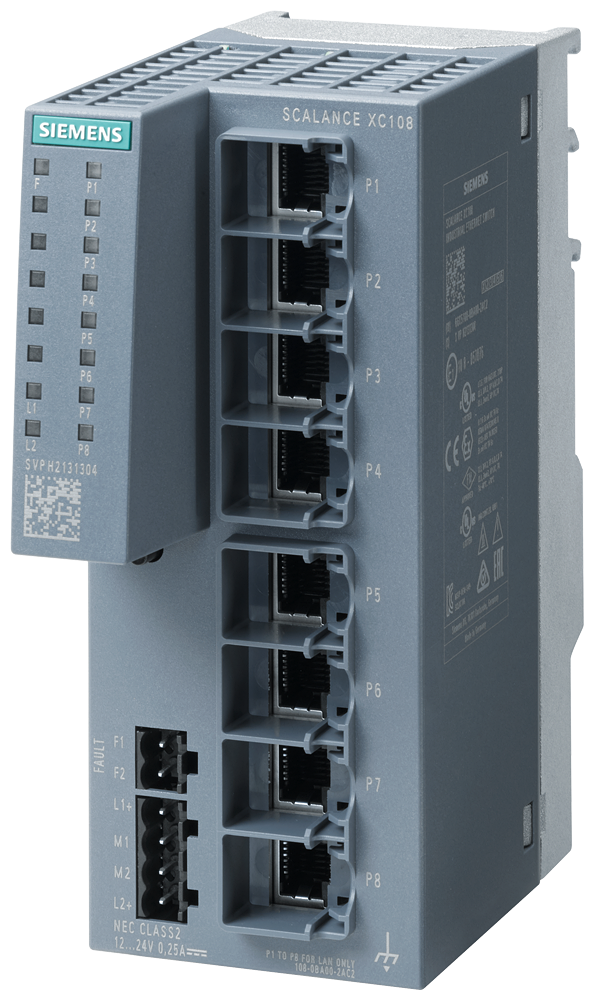

Siemens 6GK5108-0BA00-2AC2 SCALANCE XC108 8xRJ45 Unmanaged Industrial Ethernet Switch

The Siemens 6GK5108-0BA00-2AC2 SCALANCE XC108 is an unmanaged industrial Ethernet switch with eight 10/100 Mbit/s RJ45 ports, rated for -40...+70 °C operation at IP20 with redundant 24 V DC power inputs. It supports PROFINET conformity class A and up to 2048 automatically learned MAC addresses.

Technical Specifications

Certifications & Standards

• CE
• cULus
• KC
• RCM
• ATEX
• UKEX
• IECEx
• ULHazLoc
• CCC
• FM

Selection Notes

The XC108 is an 8-port, all-copper 10/100 Mbit/s unmanaged switch - choose it over a fiber-equipped variant when every device in the segment is within standard RJ45 cable reach and no fiber uplink is needed. Redundant 24 V DC inputs and a signaling contact report a supply failure to a PLC without added hardware, and the -40...+70 °C rating keeps it usable in unconditioned cabinets.

Applications

Unmanaged, all-copper network extension inside a single control cabinet or machine, connecting PLCs, HMIs, drives, and I/O over standard RJ45 cabling.
