- Siemens 6ES7518-4JP00-0AB0 SIMATIC S7-1500H CPU 1518HF-4 PN 9MB/60MB Redundant Programmable Logic Controller Siemens 6ES7518-4JP00-0AB0 SIMATIC S7-1500H CPU 1518HF-4 PN 9MB/60MB Redundant Programmable Logic Controller
Siemens 6ES7518-4JP00-0AB0 SIMATIC S7-1500H CPU 1518HF-4 PN 9MB/60MB Redundant Programmable Logic Controller
Get Quote
- Description

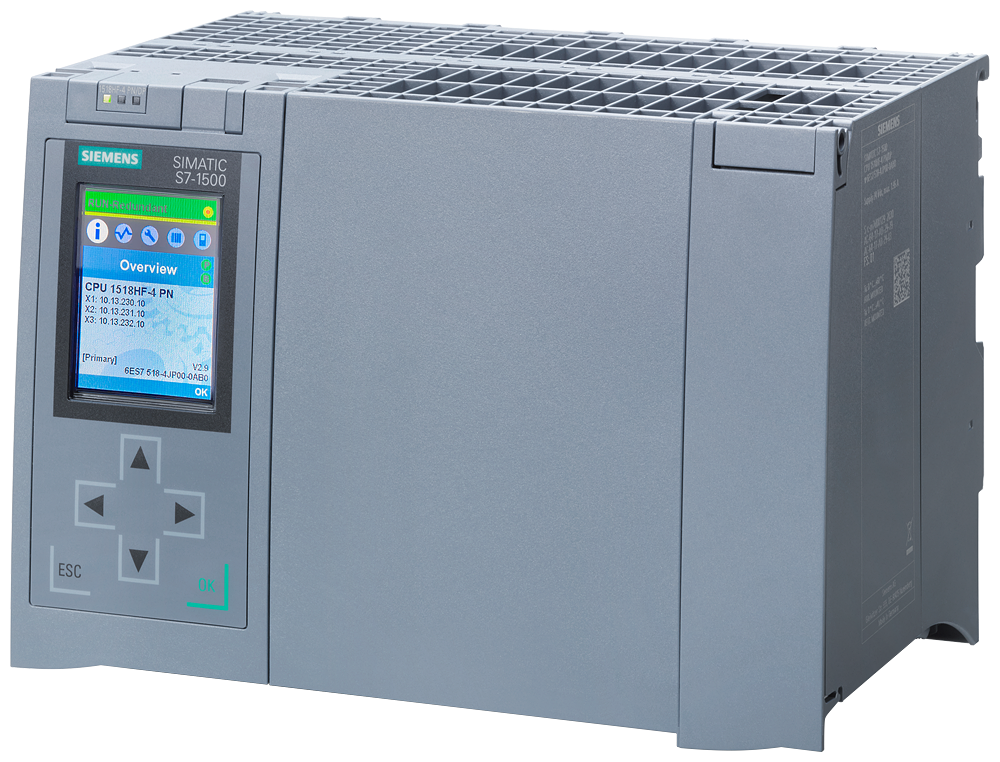

The Siemens 6ES7518-4JP00-0AB0 is a SIMATIC S7-1500H CPU 1518HF-4 PN, a redundant fail-safe central processing unit with 9 MB of program memory and 60 MB of data memory. It runs in pairs synchronized over H-SYNC on its 4th and 5th interfaces, alongside three PROFINET ports, and requires a SIMATIC Memory Card per CPU.
Technical Specifications
| SKU | 6ES7518-4JP00-0AB0 |
| Brand | Siemens |
| Series | SIMATIC S7-1500H |
| Product Designation | CPU 1518HF-4PN |
| HW Functional Status | FS04 |
| Firmware Version | V3.1 |
| Supply Voltage | 24 V DC, 19.2 to 28.8 V permissible |
| Current Consumption | 1.55 A rated, 1.95 A max |
| Power Loss | 24 W typ. |
| Work Memory, Program | 9 Mbyte |
| Work Memory, Data | 60 Mbyte |
| Load Memory | 32 Gbyte max. via SIMATIC Memory Card, required |
| PROFINET Interfaces | 3, X1 RT with 2-port switch, X2, X3 |
| Synchronization Interfaces | 4th/5th, pluggable H-SYNC fiber-optic module |
| Redundancy Mode | PROFINET system redundancy S2 and R1 |
| Media Redundancy | MRP and MRP interconnection on X1, IEC 62439-2 |
| MRP Switchover Time | 200 ms typ. on line break |
| Bit Operation Processing Time | 4 ns typ. |
| IO Controllers, Integrated | 1 |
| Rack Capacity | 9 modules max, CPU plus 2 PS plus 6 CP |
| Connectable IO Devices, Max | 256 |
| Display | 6.1 cm screen diagonal, 6 keys |
| Net Weight | 2.299 kg |
Selection Notes
The H in this CPU's family marks it for redundant operation: two CPU 1518HF-4 PN units run in a synchronized pair over the dedicated H-SYNC fiber-optic interfaces (4th/5th), so a single CPU fault does not stop the process, unlike a standard non-redundant S7-1500 CPU. The trailing F in the product designation adds fail-safe capability on top of that redundancy, so safety-rated shutdown logic can run on the same redundant pair instead of a separate F-CPU. Against this, the lower connectable-IO-device count (256, versus 512+ on non-H CPUs) and smaller rack (9 modules) reflect that H-system slots are reserved for the synchronization and communication modules the redundant pair needs; applications without a redundancy requirement fit better on a standard S7-1500F CPU.
Applications
Continuous processes where an unplanned CPU stop is unacceptable, such as process lines or utilities where the redundant pair takes over control without interrupting the running program.
