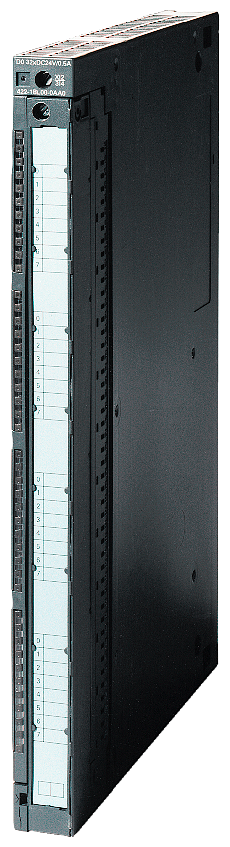

Siemens 6ES7422-1BL00-0AA0 SIMATIC S7-400 SM 422 32DO 24V DC 0.5A PLC I/O Module
Get Quote
- Description
The Siemens 6ES7422-1BL00-0AA0 SIMATIC S7-400 SM 422 module packs 32 isolated 24 V DC digital outputs rated 0.5 A each into one module slot for high channel density. Short-circuit protection trips between 0.75 and 1.5 A, and two outputs can be paralleled either to uprate current or for redundant load control. Rated current derates above 40 degrees C.
Technical Specifications
| Load voltage L+ – Rated value (DC) | 24 V |
| Load voltage L+ – permissible range, lower limit (DC) | 20.4 V |
| Load voltage L+ – permissible range, upper limit (DC) | 28.8 V |
| Input current – from load voltage L+ (without load), max. | 30 mA |
| Input current – from backplane bus 5 V DC, max. | 200 mA |
| Power loss – Power loss, typ. | 4 W |
| Digital outputs – Number of digital outputs | 32 |
| Digital outputs – Short-circuit protection | Yes; Clocked electronically |
| Digital outputs – Response threshold, typ. | 0.7 to 1.5 A |
| Digital outputs – Limitation of inductive shutdown voltage to | -27 V |
| Digital outputs – Controlling a digital input | Yes; possible |
| Switching capacity of the outputs – on lamp load, max. | 5 W |
| Load resistance range – lower limit | 48 Ω |
| Load resistance range – upper limit | 4 kΩ |
| Output voltage – for signal 1, min. | L+ (-0.3 V) |
| Output current – for signal 1 rated value | 0.5 A |
| Output current – for signal 1 permissible range, min. | 5 mA |
| Output current – for signal 1 permissible range, max. | 0.6 A |
| Output current – for signal 0 residual current, max. | 0.3 mA |
| Output delay with resistive load – 0 to 1, max. | 1 ms |
| Output delay with resistive load – 1 to 0, max. | 1 ms |
| Parallel switching of two outputs – for uprating | Yes; possible (only outputs of the same group) |
| Parallel switching of two outputs – for redundant control of a load | Yes; possible (only outputs of the same group) |
| Switching frequency – with resistive load, max. | 100 Hz |
| Switching frequency – with inductive load, max. | 0.5 Hz |
| Switching frequency – with inductive load (acc. to IEC 60947-5-1, DC13), max. | 2 Hz; 2 Hz at 0.3 A; 0.5 Hz at 0.5 A |
| Switching frequency – on lamp load, max. | 10 Hz |
| all mounting positions – up to 40 °C, max. | 4 A |
| all mounting positions – up to 60 °C, max. | 2 A; 8 adjacent outputs each |
| Cable length – shielded, max. | 1 000 m |
| Cable length – unshielded, max. | 600 m |
| Potential separation digital outputs – between the channels, in groups of | 32 |
| Potential separation digital outputs – between the channels and backplane bus | Yes |
| Isolation – Isolation tested with | 500 V AC/707 V DC, type test |
| Dimensions – Width | 25 mm |
| Dimensions – Height | 290 mm |
| Dimensions – Depth | 210 mm |
| Weights – Weight, approx. | 600 g |
Selection Notes
With 32 channels at 0.5 A each in the same module footprint, this variant trades per-channel current for I/O density – choose it over a higher-current, lower-channel-count module when driving many small 24 V DC loads (indicator lamps, small relays, PLC-to-PLC signaling) rather than motor starters that need more current per channel. Parallel switching of two outputs is supported both for uprating current and for redundancy, so two channels can be combined to exceed the 0.5 A single-channel rating. Current derates from 4 A total up to 40°C to 2 A per 8 adjacent outputs above 40°C – plan channel loading around that group boundary.
