- Siemens 6ES7422-1BH11-0AA0 SIMATIC S7-400 SM 422 16DO 24V DC 2A PLC I/O Module Siemens 6ES7422-1BH11-0AA0 SIMATIC S7-400 SM 422 16DO 24V DC 2A PLC I/O Module

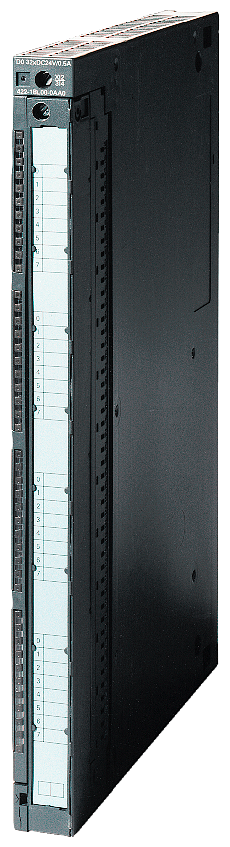

Siemens 6ES7422-1BH11-0AA0 SIMATIC S7-400 SM 422 16DO 24V DC 2A PLC I/O Module
Get Quote
- Description
The Siemens 6ES7422-1BH11-0AA0 SIMATIC S7-400 SM 422 module provides 16 isolated digital outputs rated 24 V DC, 2 A per channel, with electronic short-circuit protection tripping between 2.8 and 6 A. Outputs are grouped in isolated blocks of 8, and two outputs in the same group can be paralleled for redundant control of one load. Rated current derates above 40 degrees C.
Technical Specifications
| Load voltage L+ – Rated value (DC) | 24 V |
| Load voltage L+ – permissible range, lower limit (DC) | 20.4 V |
| Load voltage L+ – permissible range, upper limit (DC) | 28.8 V |
| Input current – from load voltage L+ (without load), max. | 30 mA |
| Input current – from backplane bus 5 V DC, max. | 160 mA |
| Power loss – Power loss, typ. | 5 W |
| Digital outputs – Number of digital outputs | 16 |
| Digital outputs – Short-circuit protection | Yes; Clocked electronically |
| Digital outputs – Response threshold, typ. | 2.8 to 6 A |
| Digital outputs – Limitation of inductive shutdown voltage to | -30 V |
| Digital outputs – Controlling a digital input | Yes; possible |
| Switching capacity of the outputs – on lamp load, max. | 10 W |
| Load resistance range – lower limit | 24 Ω |
| Load resistance range – upper limit | 4 kΩ |
| Output voltage – for signal 1, min. | L+ (-0.5 V) |
| Output current – for signal 1 rated value | 2 A |
| Output current – for signal 1 permissible range, min. | 5 mA |
| Output current – for signal 1 permissible range, max. | 2.4 A |
| Output current – for signal 0 residual current, max. | 0.5 mA |
| Output delay with resistive load – 0 to 1, max. | 1 ms |
| Output delay with resistive load – 1 to 0, max. | 1 ms |
| Parallel switching of two outputs – for uprating | No; Not possible |
| Parallel switching of two outputs – for redundant control of a load | Yes; possible (only outputs of the same group) |
| Switching frequency – with resistive load, max. | 100 Hz |
| Switching frequency – with inductive load, max. | 0.1 Hz |
| Switching frequency – with inductive load (acc. to IEC 60947-5-1, DC13), max. | 0.2 Hz; 0.2 Hz at 1 A; 0.1 Hz at 2 A |
| Switching frequency – on lamp load, max. | 10 Hz |
| all mounting positions – up to 40 °C, max. | 3 A |
| all mounting positions – up to 60 °C, max. | 2 A; 2 adjacent outputs each |
| Cable length – shielded, max. | 1 000 m |
| Cable length – unshielded, max. | 600 m |
| Potential separation digital outputs – between the channels | Yes |
| Potential separation digital outputs – between the channels, in groups of | 8 |
| Potential separation digital outputs – between the channels and backplane bus | Yes |
| Isolation – Isolation tested with | 500 V DC |
| Dimensions – Width | 25 mm |
| Dimensions – Height | 290 mm |
| Dimensions – Depth | 210 mm |
| Weights – Weight, approx. | 600 g |
Selection Notes
Rated 2 A per channel with a 2.8-6 A short-circuit trip threshold, this module suits solenoids and small motor starters switched directly from 24 V DC. Current derates from 3 A total up to 40°C to 2 A per pair of adjacent outputs above 40°C, so channel loading and cabinet temperature both matter at full load. Parallel outputs can be wired for redundant control of one load (same group only), not for uprating current – use a higher-current output module instead if a single load exceeds 2 A. Groups of 8 isolated channels keep 24 V DC output circuits separate from the backplane and from each other in blocks.
