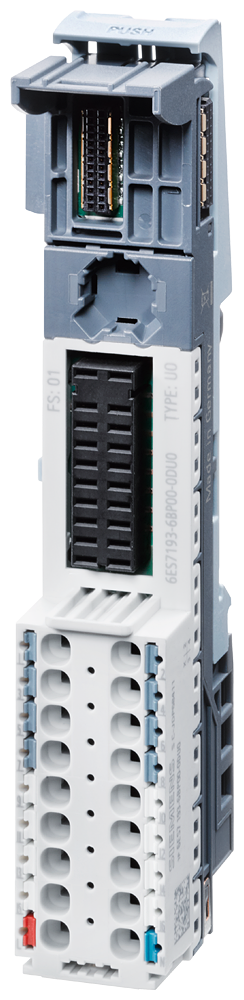

Siemens 6ES7193-6BP00-0DU0 SIMATIC ET 200SP BU20-P16+A0+2D Type U0 BaseUnit

The Siemens 6ES7193-6BP00-0DU0 is a SIMATIC ET 200SP BaseUnit, type BU20-P16+A0+2D (BU-TYPE U0), that carries push-in terminals for one I/O module slot and opens a new potential group on the station's P1/P2 bus. Rated current is 10 A per bus and per process terminal, with push-in terminals sized for 0.14-2.5 mm² conductors.

Technical Specifications

Selection Notes

The BU-TYPE U0 designation and new potential group flag mean this BaseUnit breaks the power bus into a fresh isolated section, so it belongs at a point in the ET 200SP station where a downstream I/O module needs a different supply or protection zone than the modules upstream. The push-in terminal set (16 process terminals, no AUX terminals) suits standard I/O modules without their own auxiliary voltage requirement; pick a BaseUnit variant with AUX terminals instead for modules that need a separate load or sensor supply.

Applications

Provides the mounting slot, bus connection, and potential-group break for a single ET 200SP I/O module in a modular distributed I/O station.
